2) Release the connector
of the reactor.
3) Pull out the two blue
wires connected with the
four way valve.
4) Pull out connectors of
the compressor top
temperature sensor,
condenser coil
temperature sensor
(T3),outdoor ambient
temperature sensor (T4)
and discharge
temperature sensor (T5).

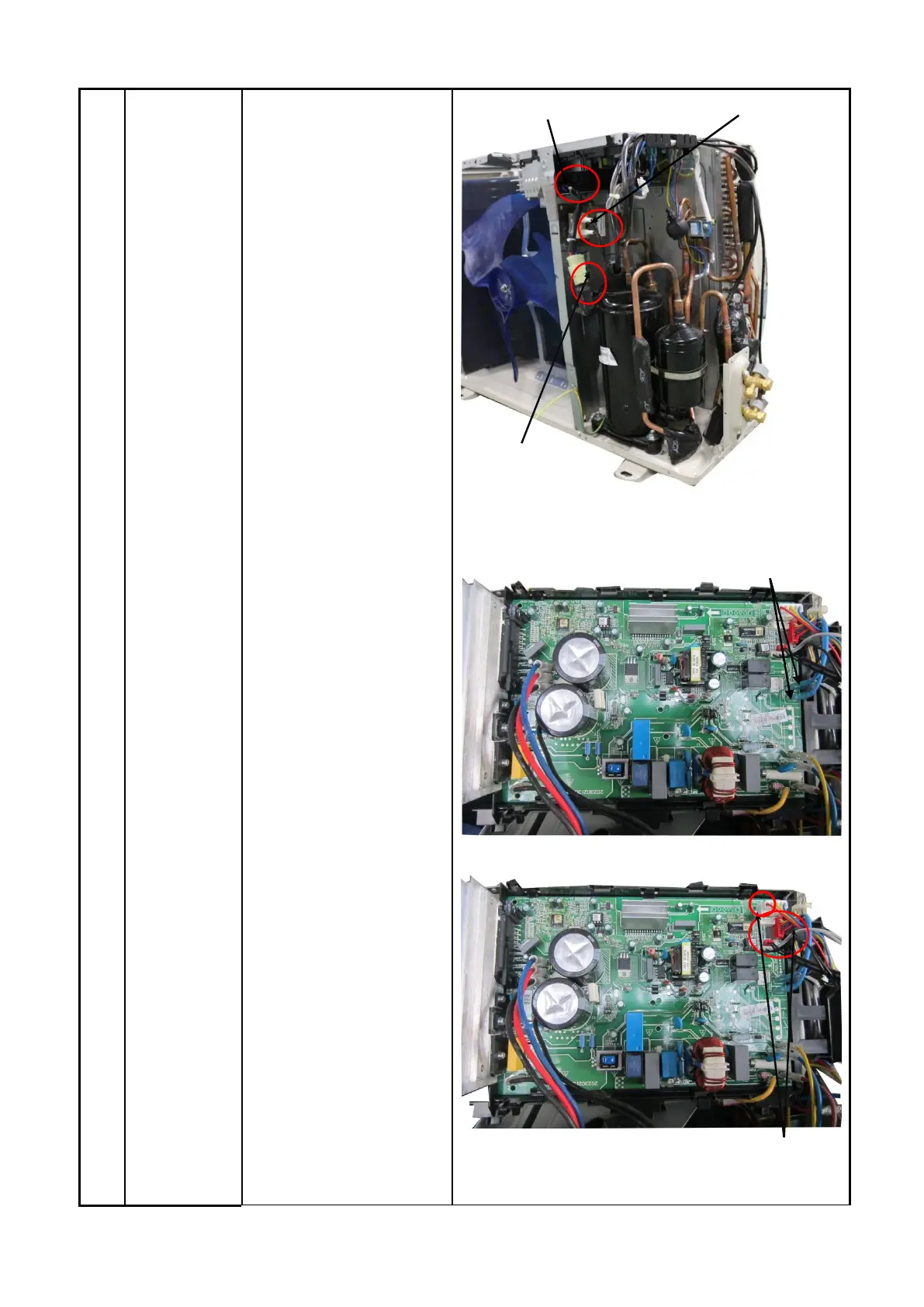

Reactor connector
Four connectors of temperature
sensors.
Compressor
connector
Two blue wires of four way valve
Electrical heater connector
