Air-cooled Package DM13-01.01.16en
72 Service manual

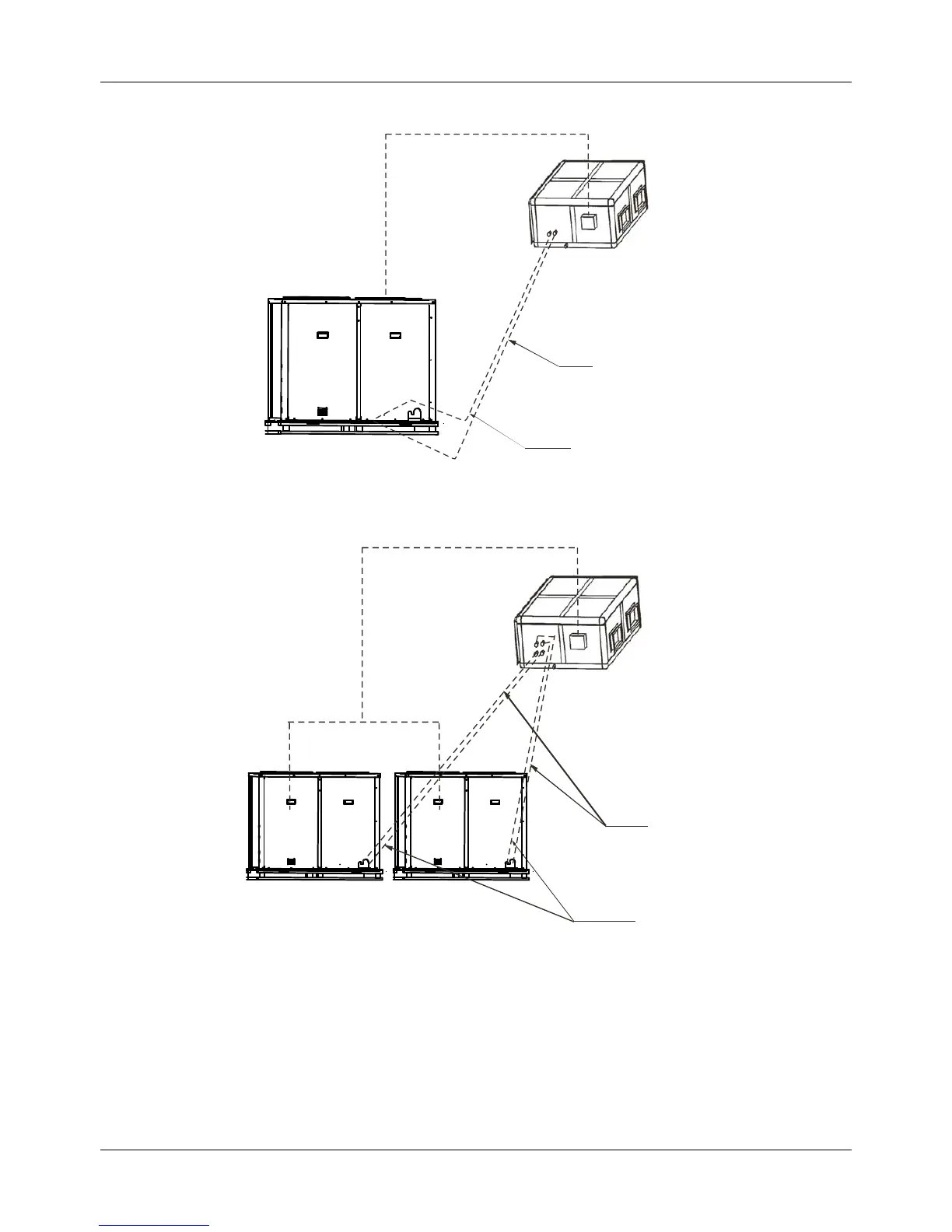

3) Connection between indoor unit and outdoor unit (Fig-23)
Signal wire
Gas line
Liquid line
76000, 96000, 120000 Btu/h
Signal wire
Gas line
Liquid line
150000 Btu/h
Fig-23
