A. Wooden structure

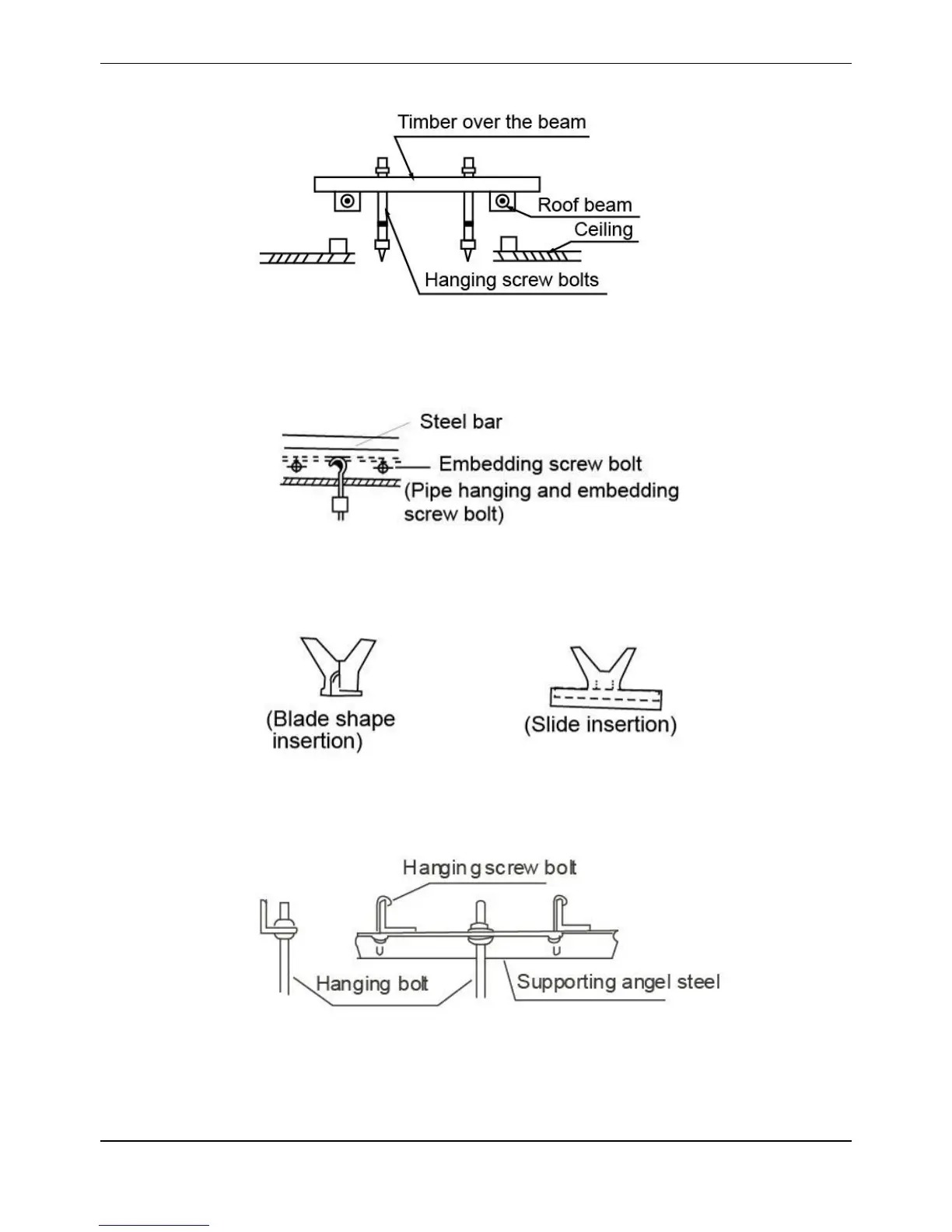

Put rectangular sticks across the beams, and set pendant bolts. (Fig-4)
Fig-4
B. New concrete roughcast
Use embedded bolts, embedded pulling plugs, and embedded stick harness. (Fig-5)
Fig-5
C. New concrete roughcast
Set it with embedded bushes or embedded bolts. (Fig-6)
Fig-6
D. Steel beam and girder structure
Set and use supportive angle steel. (Fig-7)
Fig-7
2.1.3 Suspending the Indoor Unit
Use a hoisting device to hoist the indoor unit, align it with the installation screw, adjust the horizontality and
then tighten it. (Fig-8)
