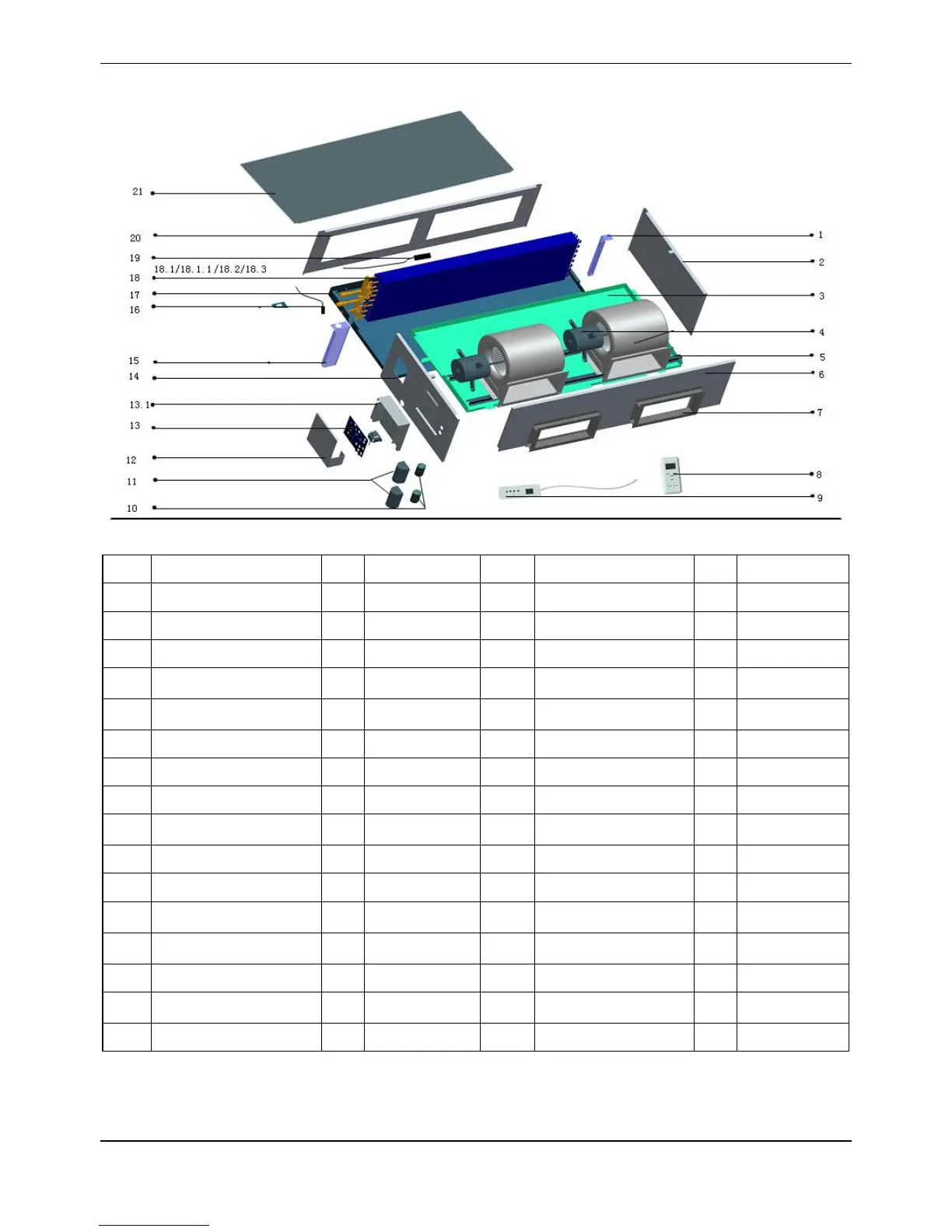

Midea MOV-96CN1-C

R410A 50Hz Tropical Split AC MCAC-UTSM-2012-12
48
11.10 MHB-96CRN1
No.
Part Name
QTY
BOM Code
No.
Part Name
QTY
BOM Code
1
Evaporator Sealed board
1
201286900317
13.4
Transformer
1
202300900093
2
Side board ass'y
1
201286900316
13.5
Wire joint, 7p
1
202301450056
3
Drainage pan ass'y
1
201285000677
13.6
Wire joint
2
202301450122
4
Fan motor
2
202400410853
14
The left side plate
assembly
1
201270990012
5
Motor supporter ass'y
2
201285000683
15
Seal plate evaporator
components left
1
201270990009
6
Front panel ass'y
1
201285000668
16
Temp.sensor ass'y
1
202301300133
7
Air outlet ass'y
2
201285000612
17
Base ass'y
1
201285000667
8
Remote controller
1
203355090107
18
Evaporator parts
1
201570990077
9
Display board ass'y
1
203342090051
18.1
Enter the evaporator
tube assembly
1
201670990082
10
Compressor capacitor
2
202401010101
18.1.1
One way valve
1
201600800166
11
Compressor capacitor box
2
201226190015
18.2
Evaporator
1
201570990078
12
Components of electronic
control box cover
1
201270600180
18.3
Evaporator tube
assembly output
1
201670990080
13
Indoor electronic control
box components
1
203370990033
19
Room temp sensor ass'y
1
202301300214
13.1
E-part box
1
201285000350
20
Rear board ass'y
1
201286900313
13.2
Main control board
assembly
1
201370900071
21
Top cover ass'y
1
201286900314
13.3
Relay
3
202300800003
22
Volute shell ass'y
2
201200300201
