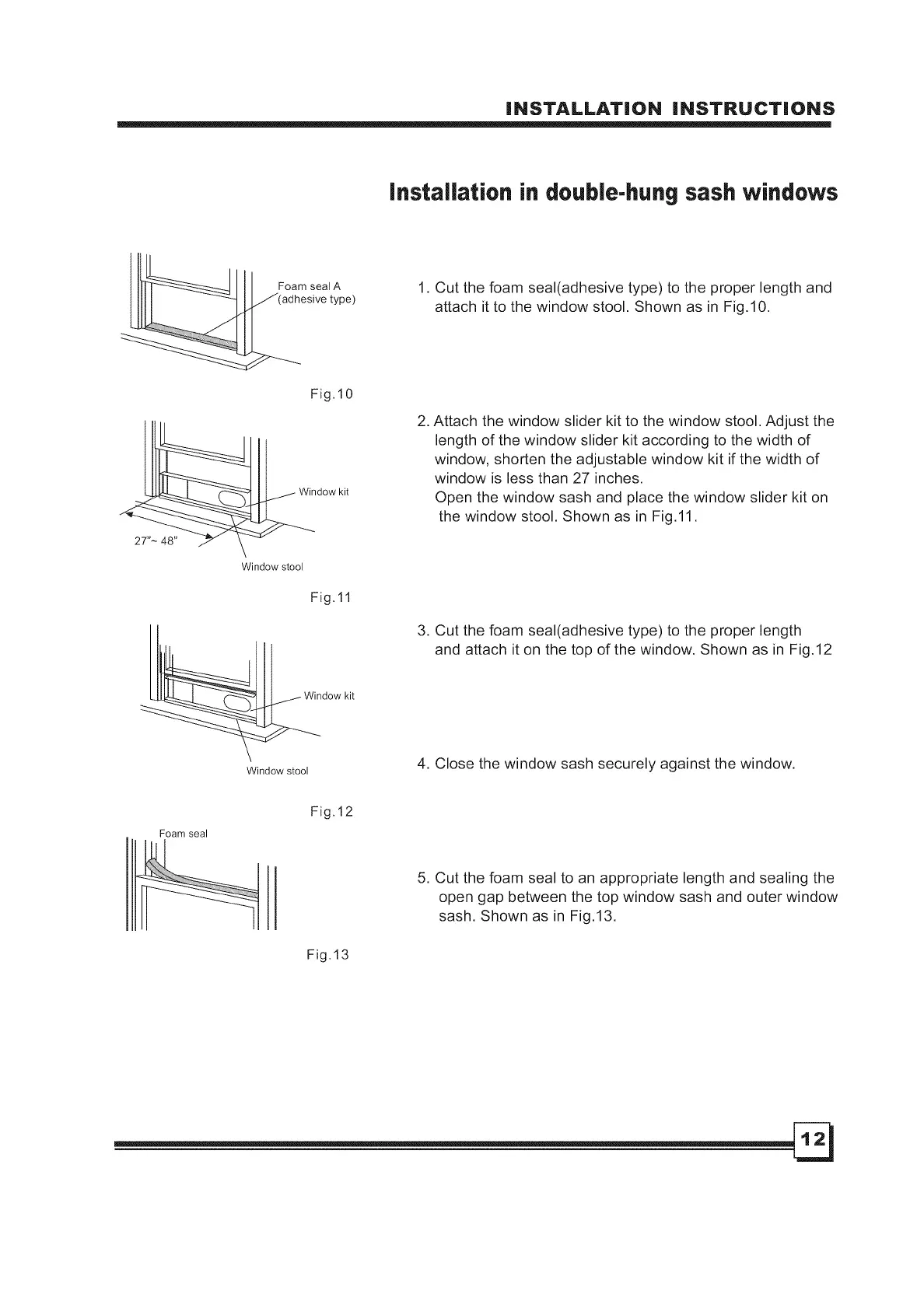

iNSTALLATiON iNSTRUCTiONS
installation in double-hung sash windows
eswe type)
Fig.10
t II__ Windowkit
27"~ 48" _ .....
Window stool
Fig.11
1. Cut the foam seal(adhesive type) to the proper length and
attach it to the window stool. Shown as in Fig.10.
2. Attach the window slider kit to the window stool. Adjust the
length of the window slider kit according to the width of
window, shorten the adjustable window kit if the width of
window is less than 27 inches.
Open the window sash and place the window slider kit on
the window stool. Shown as in Fig.11.
3. Cut the foam seal(adhesive type) to the proper length
and attach it on the top of the window. Shown as in Fig.12
Window kit
Window stool
4. Close the window sash securely against the window.
Foam seal
Fig.12
Fig.13
5. Cut the foam seal to an appropriate length and sealing the
open gap between the top window sash and outer window
sash. Shown as in Fig.13.
To Next Page
