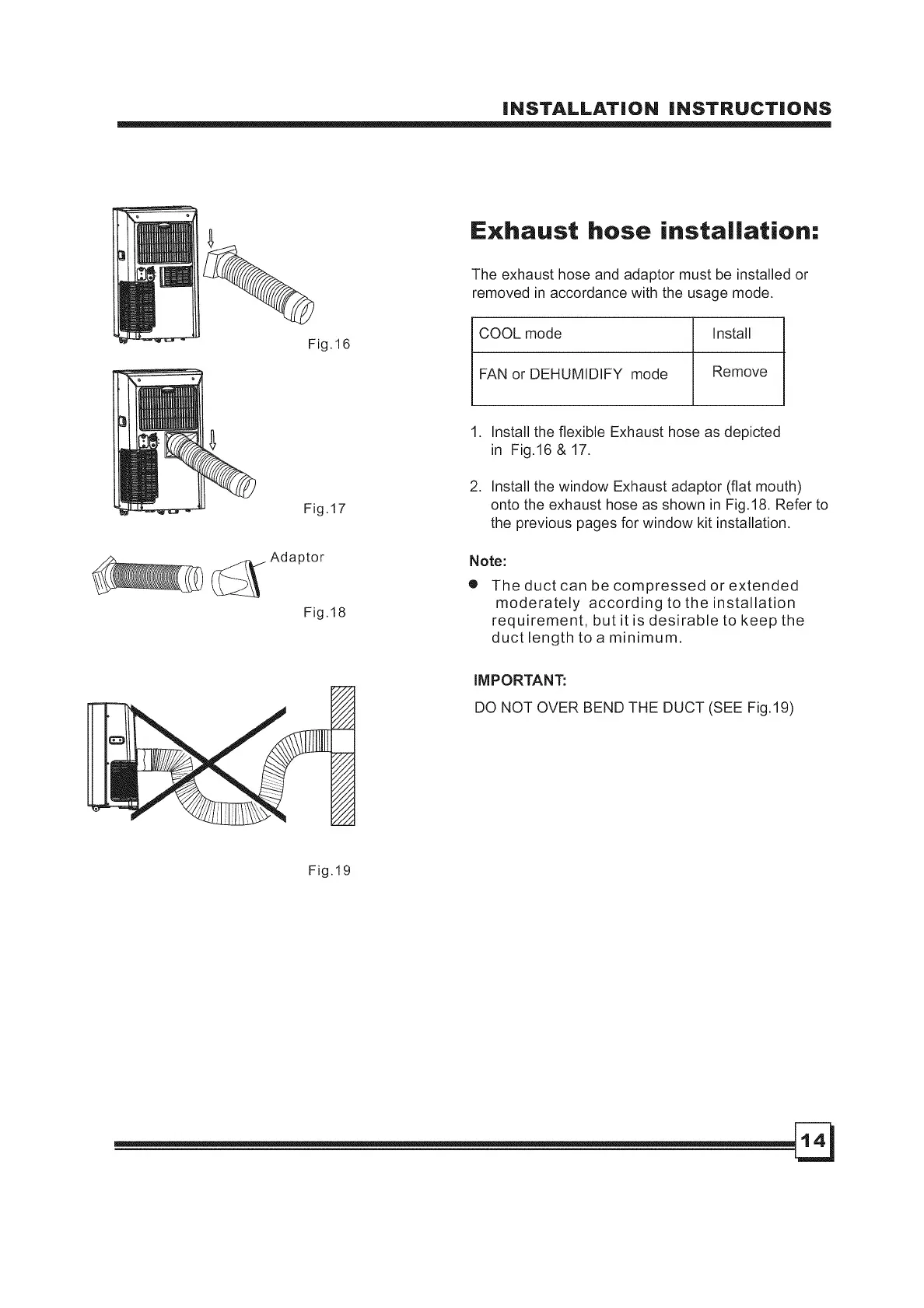

iNSTALLATiON iNSTRUCTiONS
Fig.16
Exhaust hose installation:
The exhaust hose and adaptor must be installed or
removed in accordance with the usage mode.
COOL mode Install
FAN or DEHUMIDIFY mode Remove
Fig.17
Adaptor
Fig.18
1. Install the flexible Exhaust hose as depicted
in Fig.16 & 17.
2. Install the window Exhaust adaptor (flat mouth)
onto the exhaust hose as shown in Fig.18. Refer to
the previous pages for window kit installation.
Note:
The duct can be compressed or extended
moderately according to the installation
requirement, but it is desirable to keep the
duct length to a minimum.
////
,11,
iMPORTANT:
DO NOT OVER BEND THE DUCT (SEE Fig.19)
Fig.19
