Regulating belt of tension

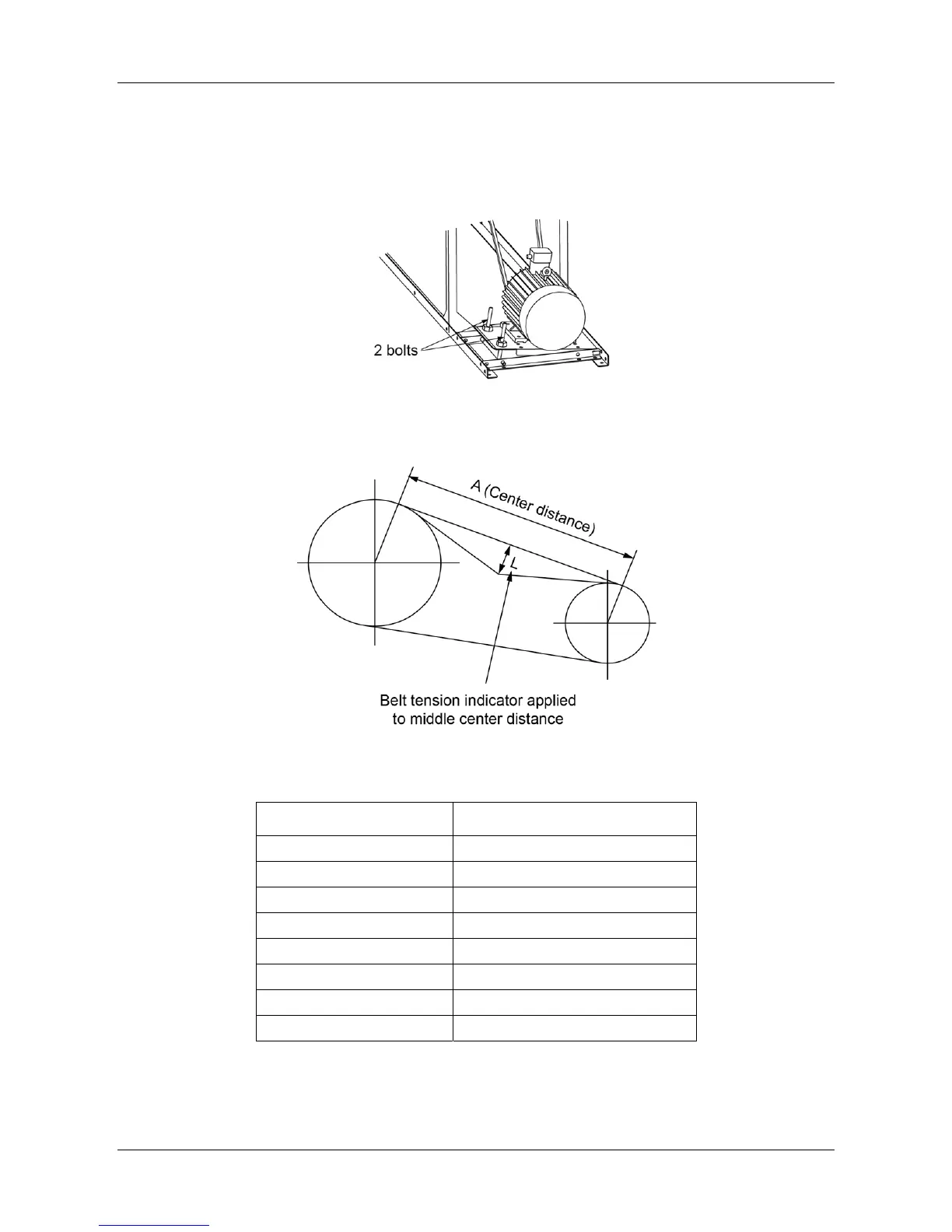

Refer to the following figure, loose 2 bolts, and move the electric motor to adjust belt tension. These
two bolts are used for precision adjustment.
Belt tension is measured by belt tension indicator
 Calculate the deflection, deflection (L) = A/64.
Notes: L=A/64
Model A (mm)
MRCT-085CWN1-R(C) 380
MRCT-100CWN1-R(C)
380
MRCT-125CWN1-R(C) 560
MRCT-150CWN1-R(C) 560
MRCT-175CWN1-R(C)
580
MRCT-200CWN1-R(C) 580
MRCT-250CWN1-R(C) 480
MRCT-300CWN1-R(C)
480
 Measure the belt deflection force, the force should be between the values shown in the
