DM16‐01.01.27en RooftopClimaCreatorseries
122 Service manual
following lists.
The belt which is too tight or too loose may generate noise and be harmful to the unit.
Belt section
For required to deflection
Small pulley diameter Newton Kilogram-force
SPA 80mm~132mm 25N~35N 2.5kg.f~3.6kg.f

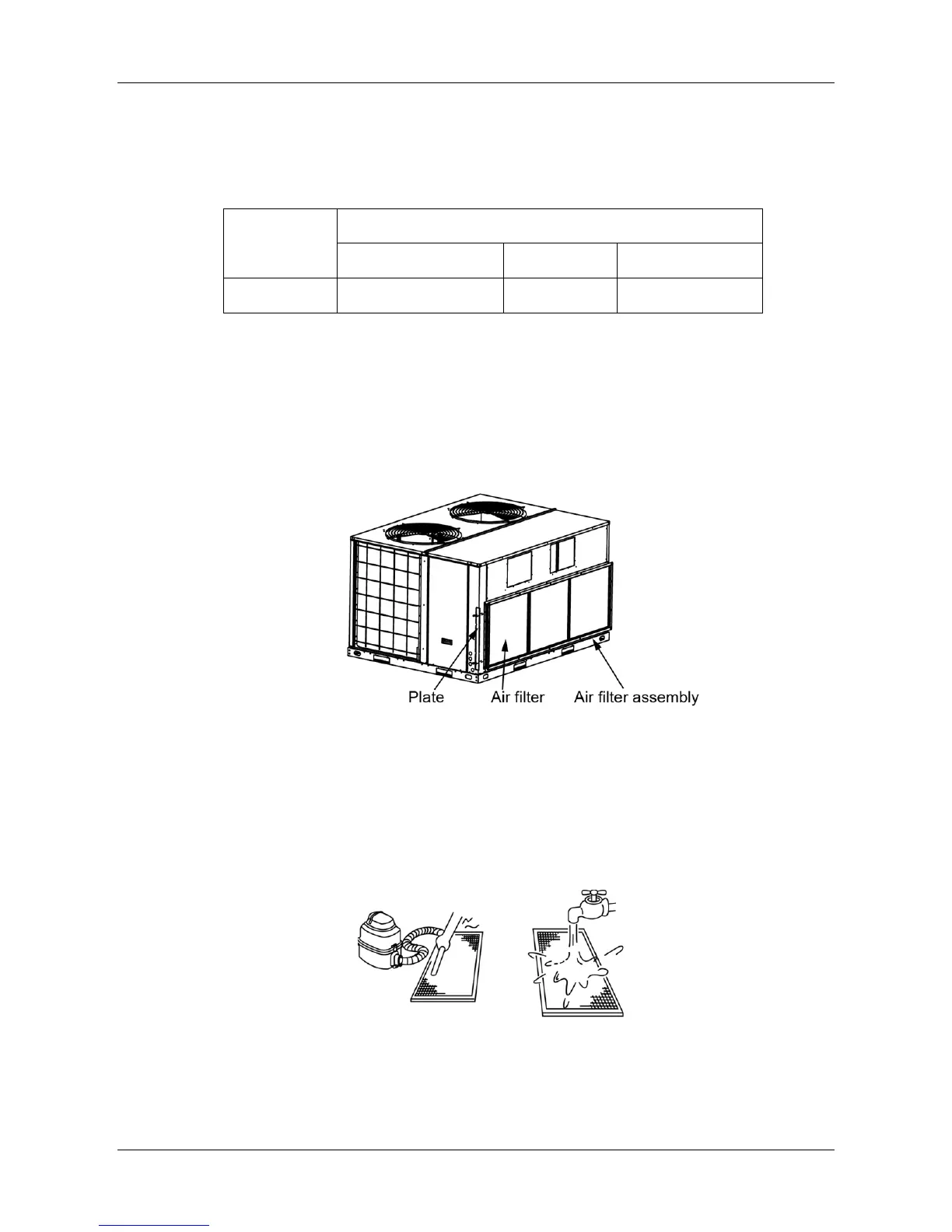

Air intake filter clean (The filter should be customized).
Step 1: Dismantle the air filter.
Twist of screws and get out the plate.
Pull out the filter along the supporting slot.
Step 2: Clean the air filter.
Vacuum cleaner or fresh water may be used to clean the air filter. If the dust accumulated
too much, please use soft brush and mild detergent to clean.
The air-in side should face up when using vacuum cleaner.
The air-in side should face down when using water.
After cleaning, please dry out in cool place. Do not dry out the air filter under direct sunshine
or heat.
Step 3: Re-install the air filter.
