Midea MRCT-200CWN1-R(C)

DM16‐01.01.27en  RooftopClimaCreatorseries
98 Service manual

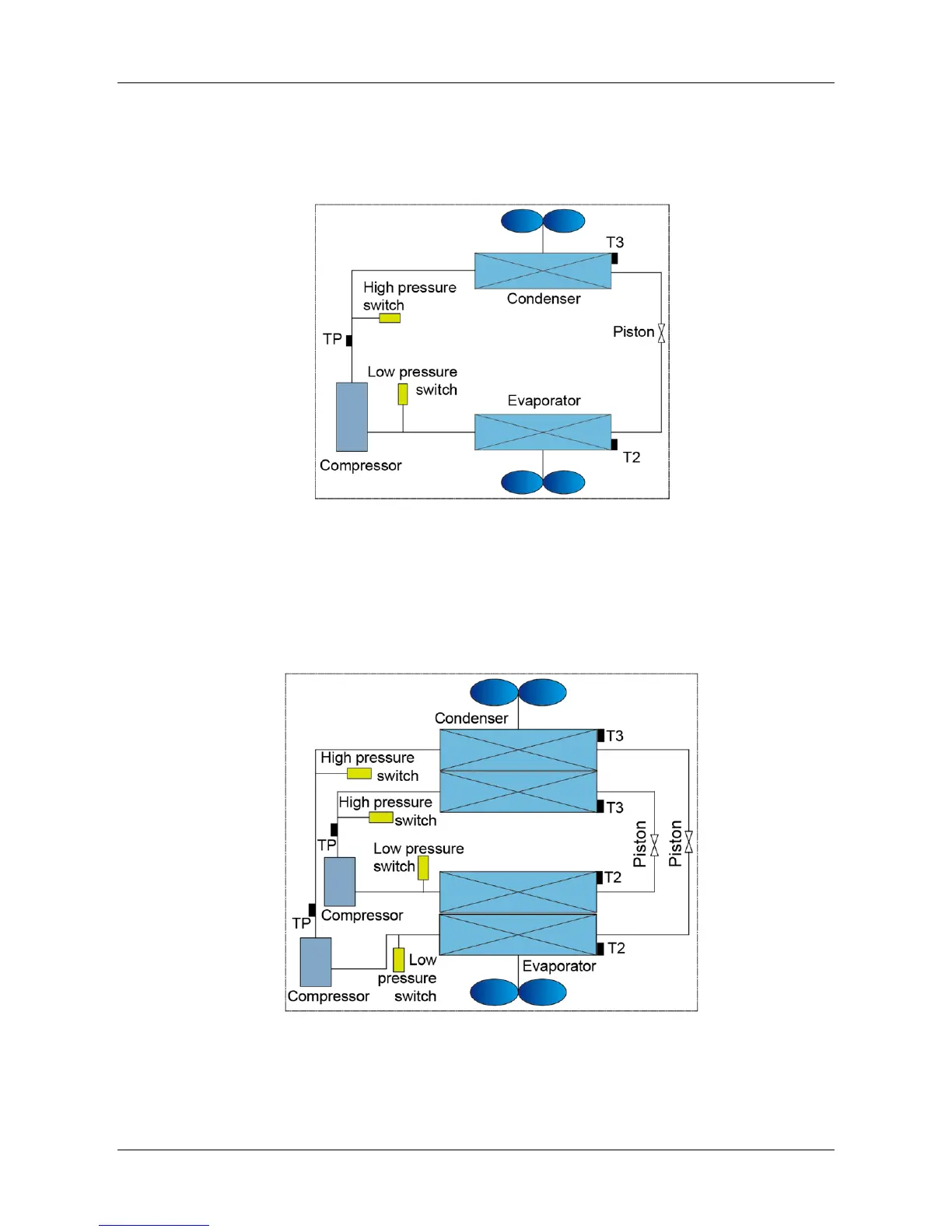

8. Refrigerant cycle diagram
MRCT-062CWN1-R(C), MRCT-075CWN1-R(C),
MRCT-085CWN1-R(C), MRCT-100CWN1-R(C),
MRCT-125CWN1-R(C), MRCT-150CWN1-R(C),
MRCT-175CWN1-R(C), MRCT-200CWN1-R(C),
MRCT-250CWN1-R(C), MRCT-300CWN1-R(C):

