Maintenance and

Disassembly

 Page 37 

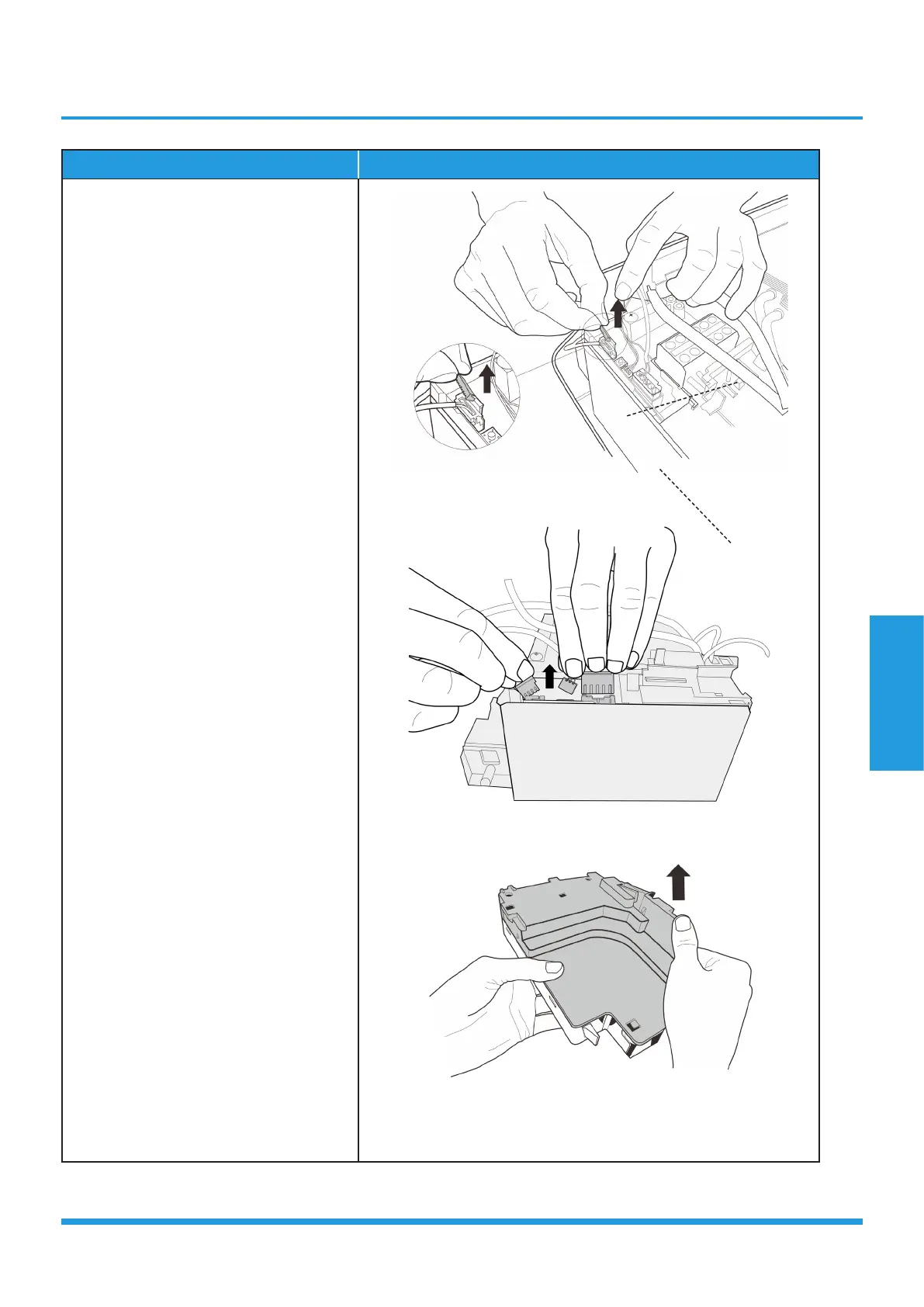

Procedure Illustration

4) Remove the ﬁxed devices of the

connectors (see CJ_MB1_INV_019).

5) Disconnect the connectors of fan

motor, the step motor and the T2

sensor (see CJ_MB1_INV_020).

6) Open the left side plate of electronic

control box (see CJ_MB1_INV_021).

CJ_MB1_INV_019

CJ_MB1_INV_020

CJ_MB1_INV_021

Note: This section is for reference only. Actual unit appearance may vary.

Main Board

Electronic Box
