Maintenance and
Disassembly
Page 38
Procedure Illustration

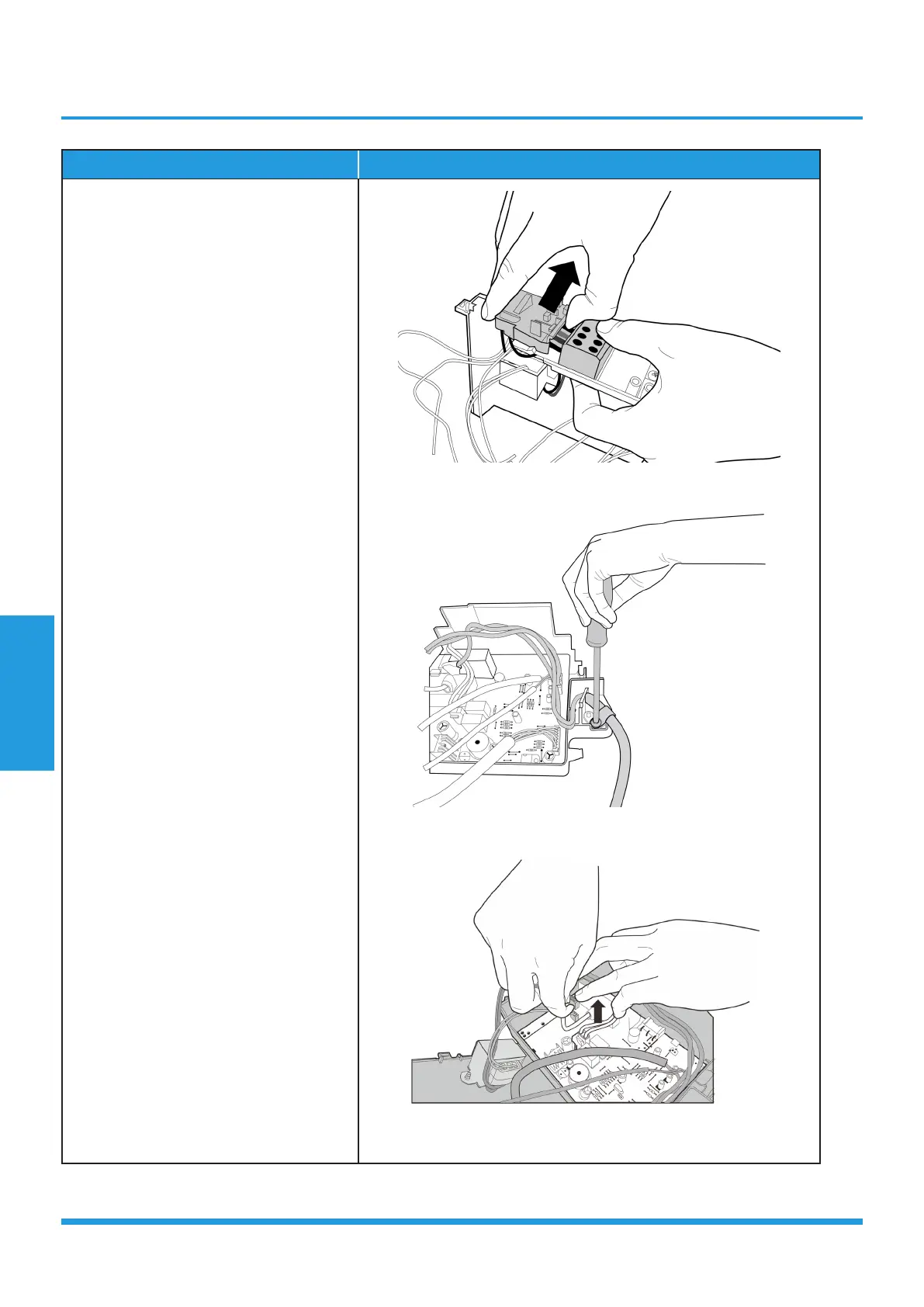

7) Open the left side plate of electronic
control box (see CJ_MB1_INV_022)
8) Remove 1 screw to take down the
power wire (see CJ_MB1_INV_023)
9) Remove the two connectors of the
transformer (see CJ_MB1_INV_024)
CJ_MB1_INV_022
CJ_MB1_INV_023
CJ_MB_INV_024
Note: This section is for reference only. Actual unit appearance may vary.
