Maintenance and
Disassembly
ļ Page 39 ļ

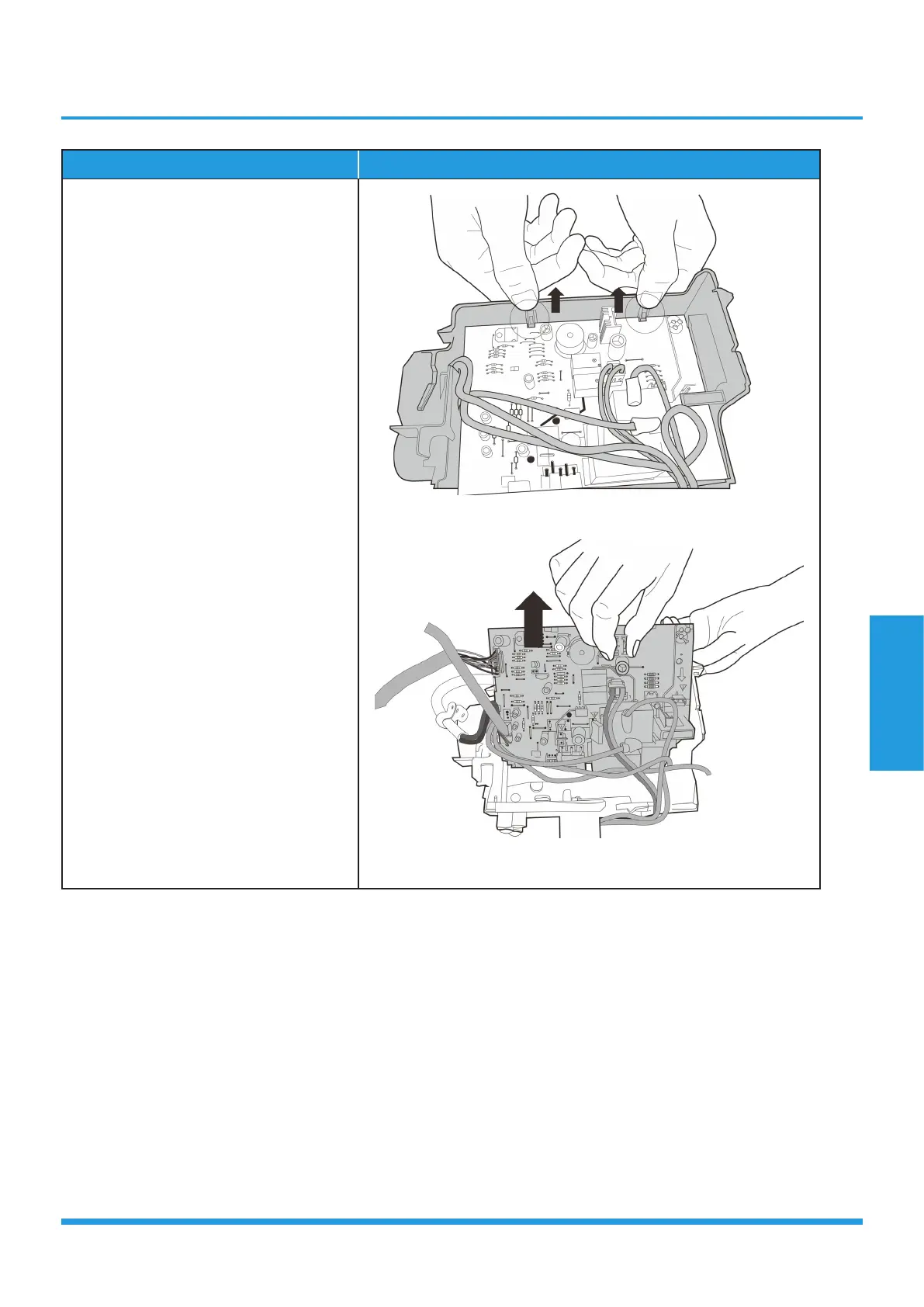

Procedure Illustration
10) Open the two clips along the direction
indicated in right image (see CJ_MB1_
INV_024).
11) Pull out the electrical main board
along the direction indicated in right
image to remove it (see CJ_MB1_
INV_025).
CJ_MB1_INV_024
CJ_MB1_INV_025
Note: This section is for reference only. Actual unit appearance may vary.
