Maintenance and
Disassembly
Page 30
Procedure Illustration

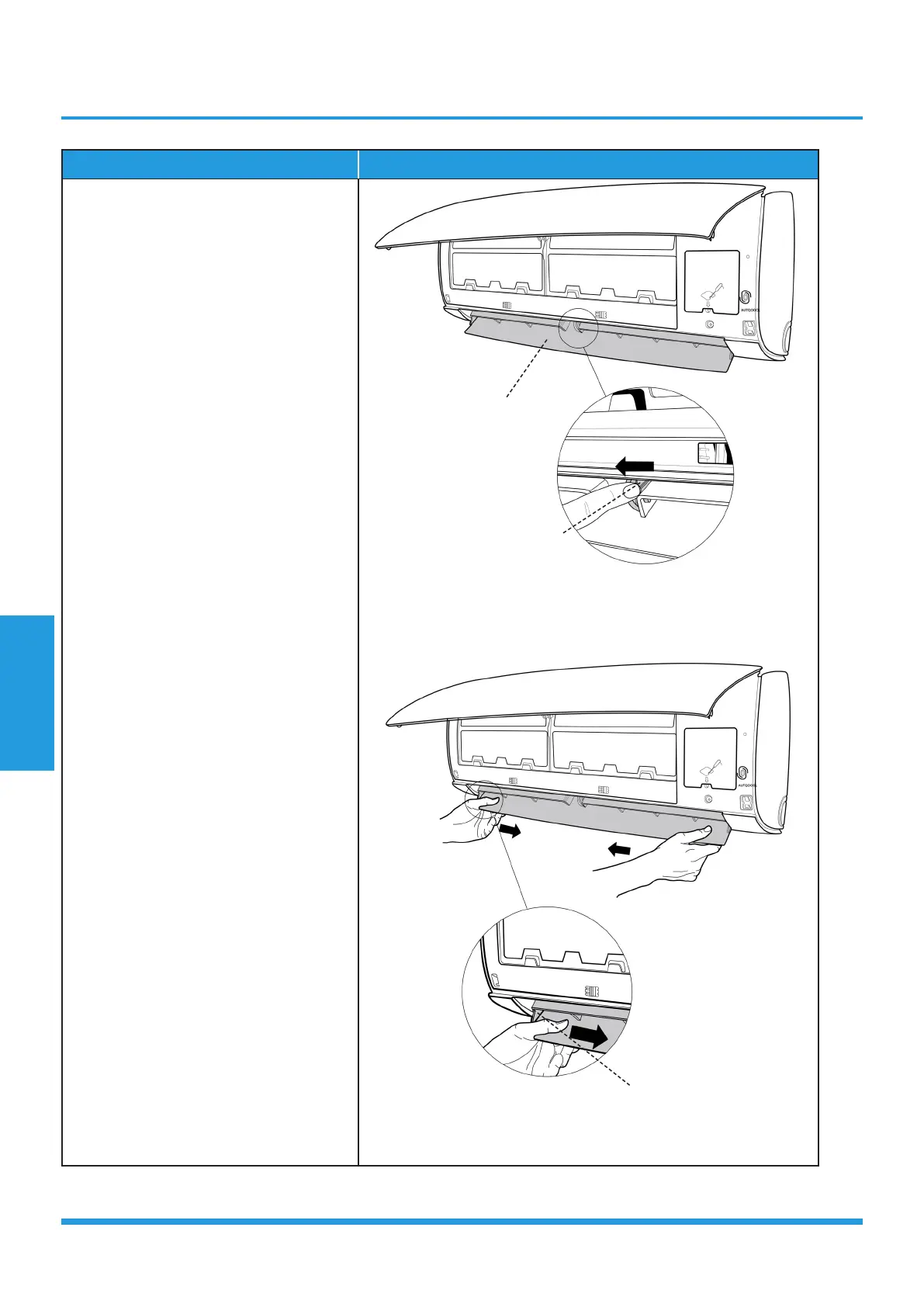

5) Open the horizontal louver and push
the hook towards left to open it (see
CJ_MB1_INV_003).
6) Bend the horizontal louver lightly by
both hands to loosen the hooks, then
remove the horizontal louver (see
CJ_MB1_INV_004).
CJ_MB1_INV_003
CJ_MB1_INV_004
Note: This section is for reference only. Actual unit appearance may vary.
Horizontal Louver
Hook
Hook
To Next Page
