Maintenance and
Disassembly
Page 47

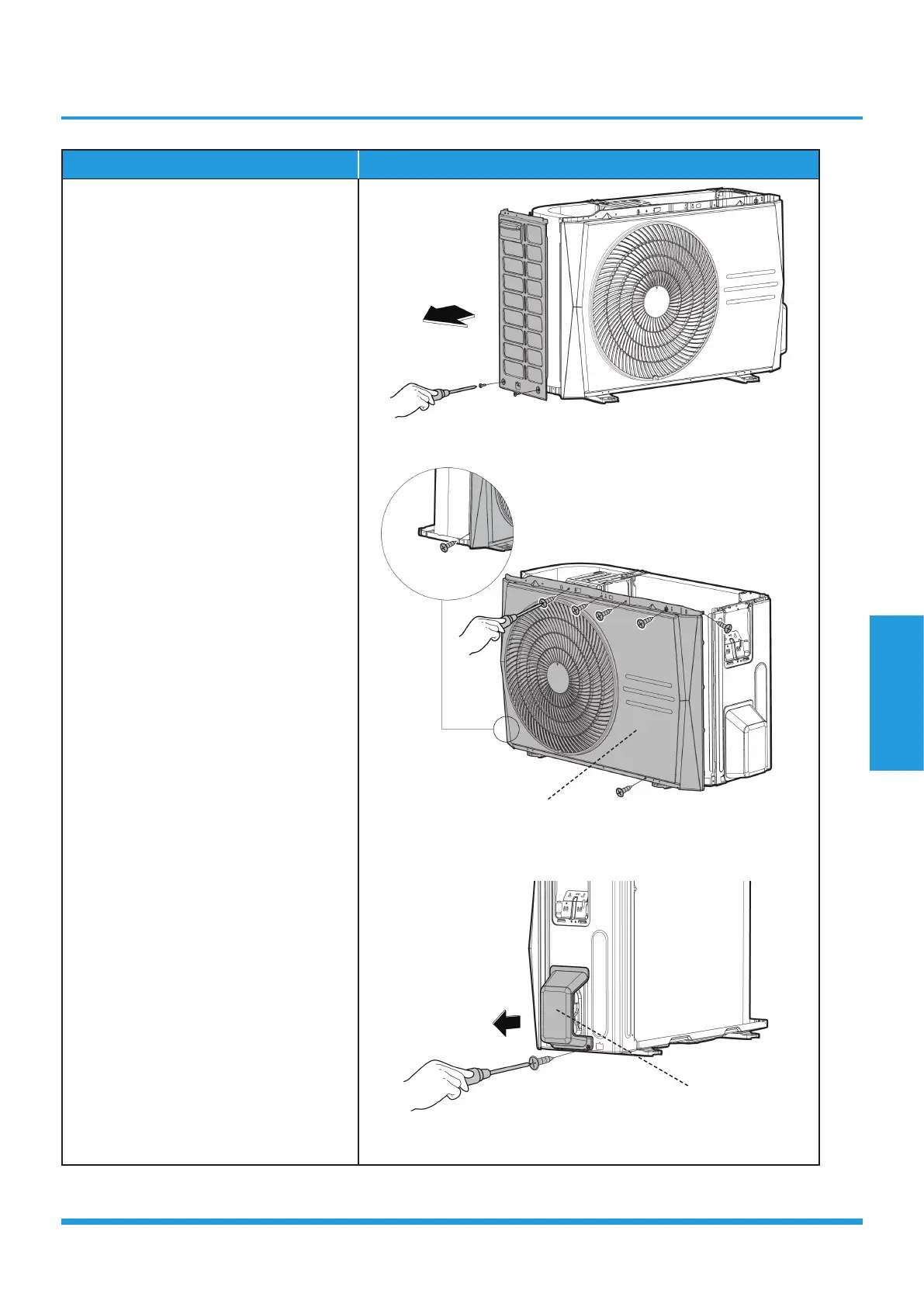

Procedure Illustration
4) Remove the screws of the left panel
and then remove the right panel
(2 screws) (see CJ_B01_INV_003).
5) Remove the screws of the front panel
and then remove the front panel (7
screws) (see CJ_B01_INV_004).
6) Remove the screws of water collecting
cover and then remove the water
collecting cover (1 screw) (see CJ_B01_
INV_005).
CJ_B01_INV_003
CJ_B01_INV_004
CJ_B01_INV_005
Note: This section is for reference only. Actual unit appearance may vary.
Front Panel
Water Collecting Cover
To Next Page
