DM13-01.01.16en Air-cooled Package
Service manual 95
① TEMP Button: Push the TEMP button to decrease the indoor temperature setting or to adjust the TIMER in
a counter-clockwise direction.

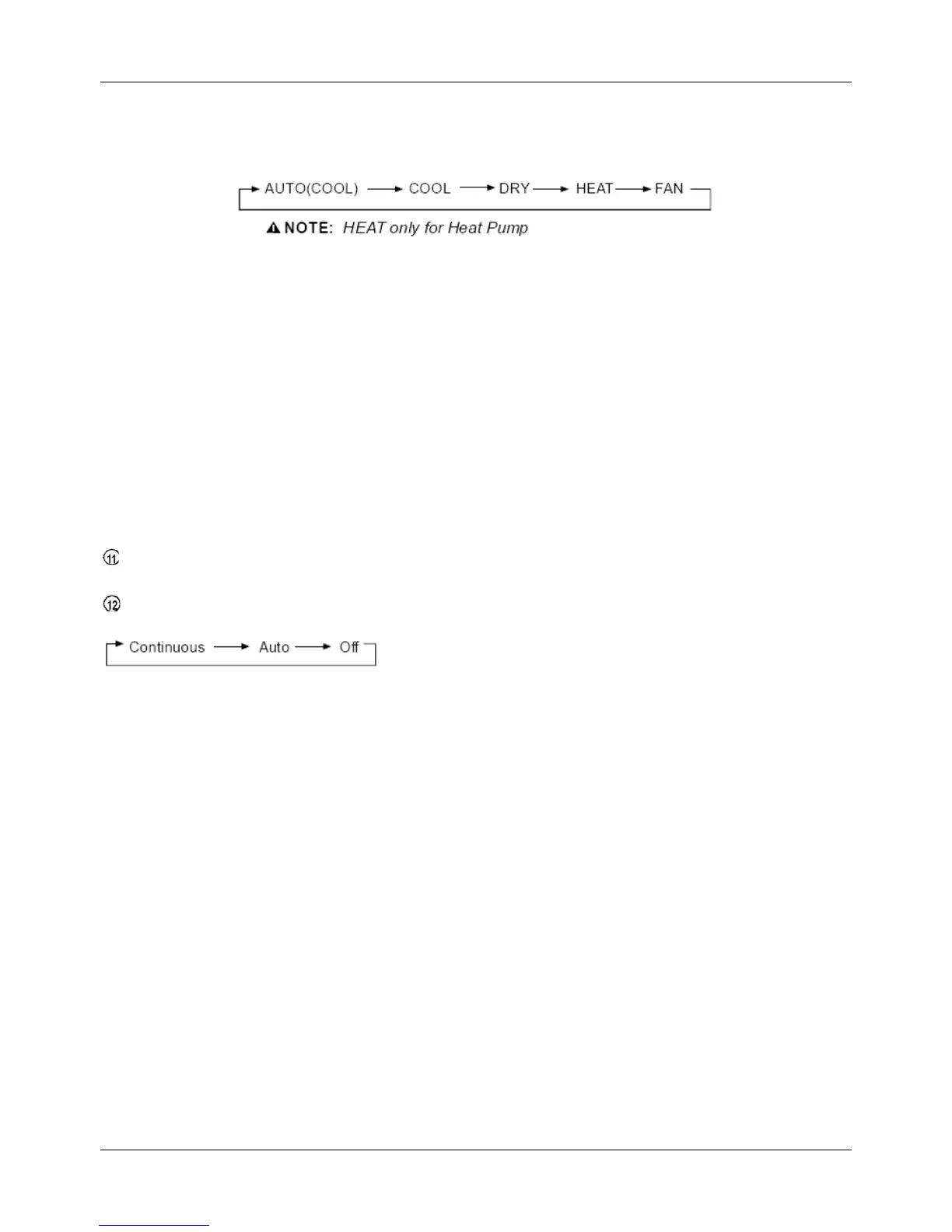

② MODE Select Button: Each time you push the button, a mode is selected in a sequence that goes from
AUTO、 COOL、 DRY、 HEAT and FAN as the following figure indicates:
③ SWING Button: Push this switch button to change the louver angle.
④ RESET Button: When the RESET button is pushed, all of the current settings are cancelled and the control
will return to the initial settings.
⑤ ECONOMIC RUNNING Button: Push this button to go into the Energy-Saving operation mode.
⑥ LOCK Button: Push this button to lock in all the current settings. To release settings, push again.
⑦ CANCEL Button: Push this button to cancel the TIMER settings.
⑧ TIMER Button: This button is used to preset the time ON (start to operate) and the time OFF (turn off the
operation).
⑨ ON/OFF Button: Push this button to start the unit operation. Push the button again to stop the unit
operation.
⑩ FAN SPEED Button: This button is used for setting Fan Speed in the sequence that goes from AUTO、
LOW 、MED to HIGH, then back to Auto.
TEMP Button: Push the button to increase the indoor temperature setting or to adjust the TIMER in a
clockwise direction.
VENT Button: Push this button to set the ventilating mode. The ventilating mode will operate in the
following sequence:
Note: ventilation function is available for the fresh air series.
