3 Installation Space Requirements

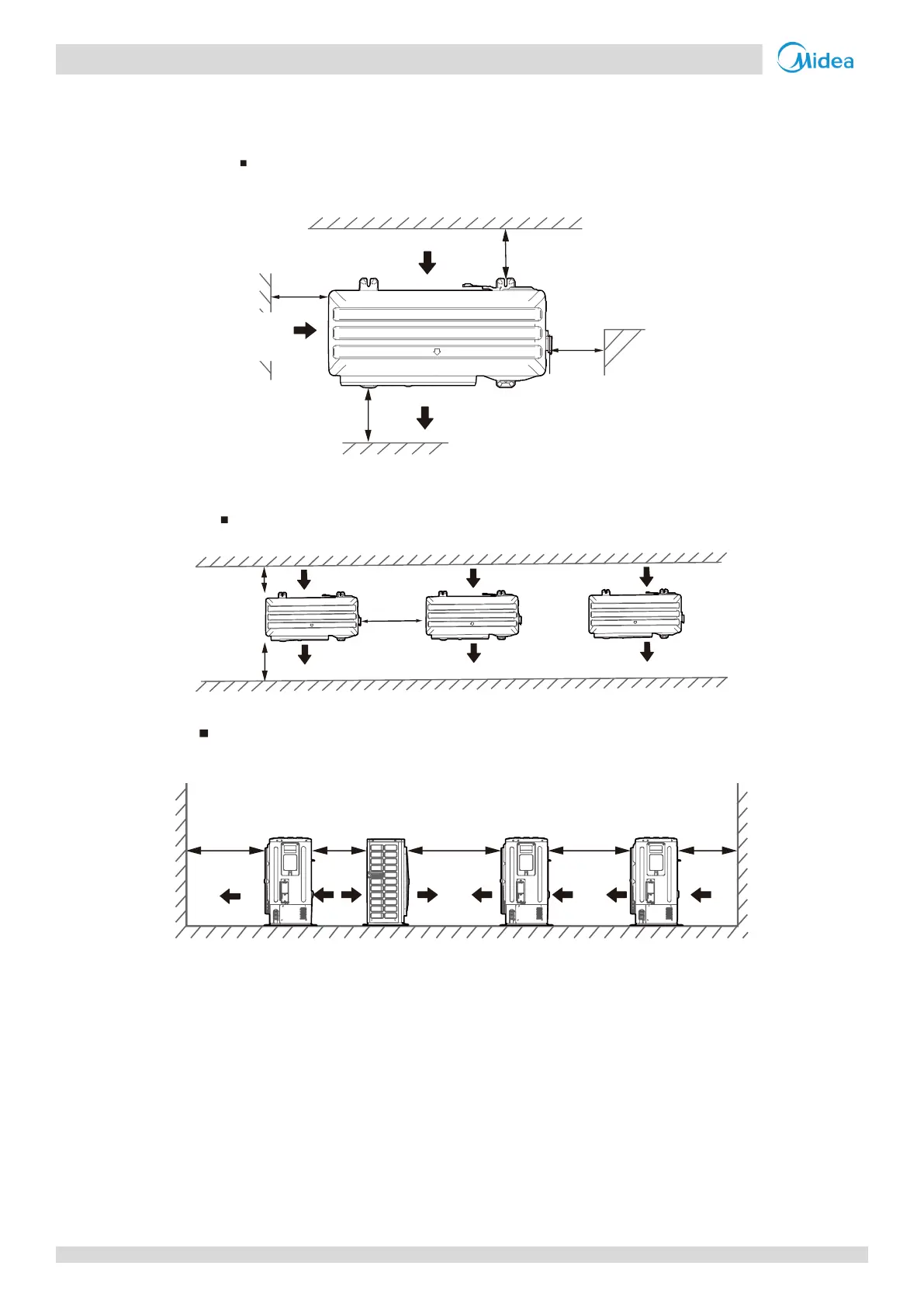

Figure 2-3.1: Single unit installation (unit: mm)
Figure 2-3.2: Multiple unit installation (unit: mm)
Single unit installation
> 300
> 2000
> 300
> 600
(Wall or obstacle)
Air outlet surface
Air inlet surface
Air inlet
surface
Maintenance
cable and
pipeline surface
Parallel connect the two units or above
> 600
> 2000
> 300
Parallel connect the front with rear sides
> 2000 > 500 > 3000 > 3000 > 300
