Midea MV8M-160WV2N1 - Piping Diagrams

V8 Mini R410A VRF 50Hz
23
Part 2
-
Outdoor Unit Engineering Data
4 Piping Diagrams
80/100 model

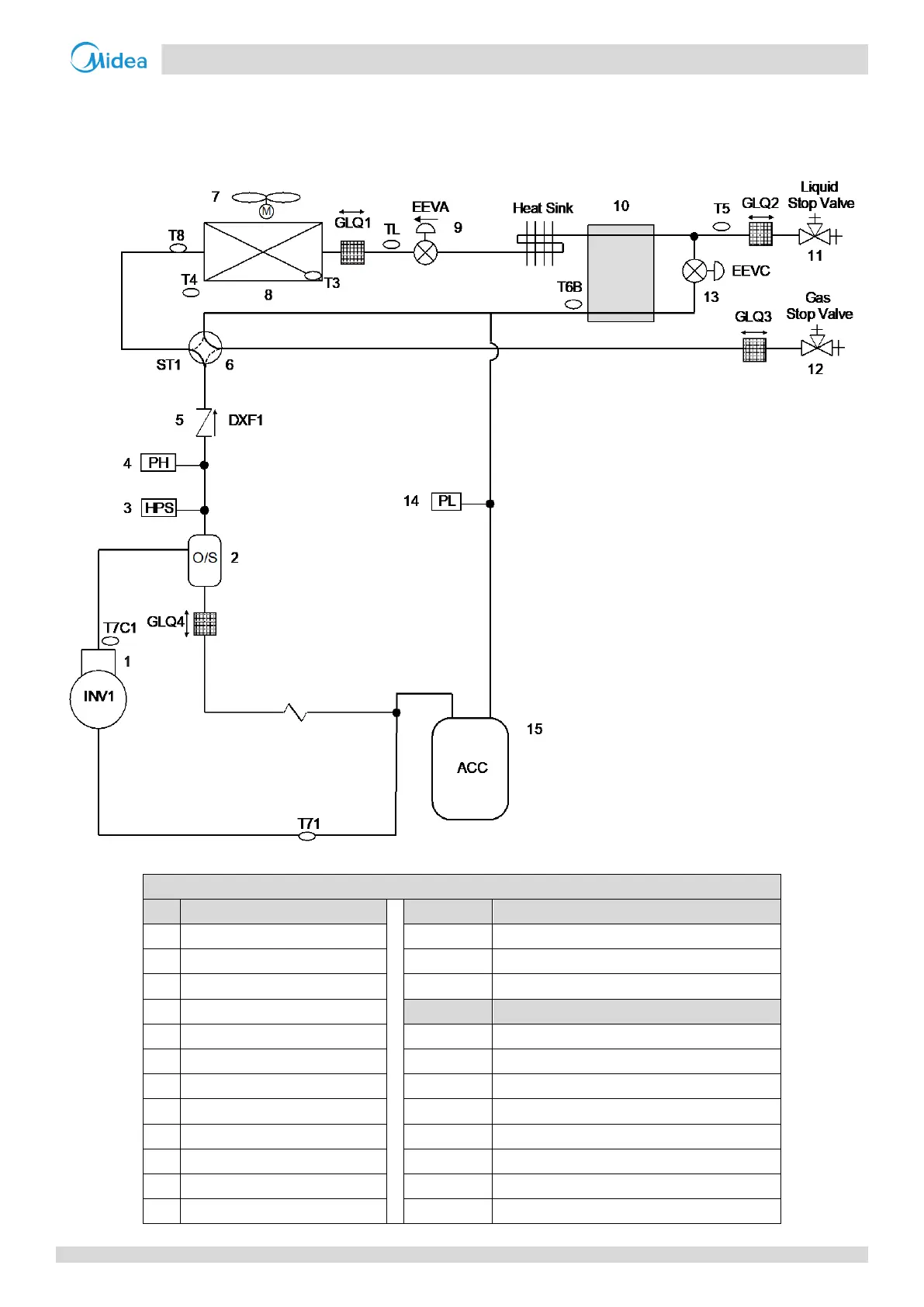

Figure 2-4.1: 80/100 model piping diagram
Legend
No.
Parts name
No.
Parts name
1
Compressor
13
Electronic expansion valve (EEVC)
2
Oil separator
14
Low pressure sensor
3
High pressure switch
15
Gas-liquid separator
4
High pressure sensor
Sensor Code
Description
5
Check value
T3
Main heat exchanger pipe temperature sensor
6
Four-way valve(ST1)
T4
Outdoor ambient temperature sensor
7
Fan
T5
Liquid pipe temperature sensor
8
Heat exchanger
T6B
Plate heat exchanger outlet temperature sensor
9
Electronic expansion valve (EEVA)
T7C1
Compressor discharge temperature sensor
10
Plate heat exchanger
T71
Suction temperature sensor
11
Stop valve (liquid side)
T8
Condenser inlet temperature sensor
12
Stop valve (gas side)
TL
Condenser outlet temperature sensor
