3.3 Water Heater Installation
①
②
③
④
NOTE
The installation position of neutral line (blue), live line (brown/red) and earth line
(green/yellow) should be corresponding to the other end on wiring terminals.
Make sure the distance between the unit and surrounding wall is not less than 300mm, so
that to have enough space for maintenance purpose.
Determine the position of four fixing screws (attached with the unit), make four holes with
corresponding depth in the wall by means of a drill and drive a wall plug into the hole.
Drive in the screws on the top and ensure certain distance between screw head and wall
(See Fig.1)
Determine installation position of the unit according to length of power cord / position
of air switch (Distance between bottom and floor should be ≥1.6m).

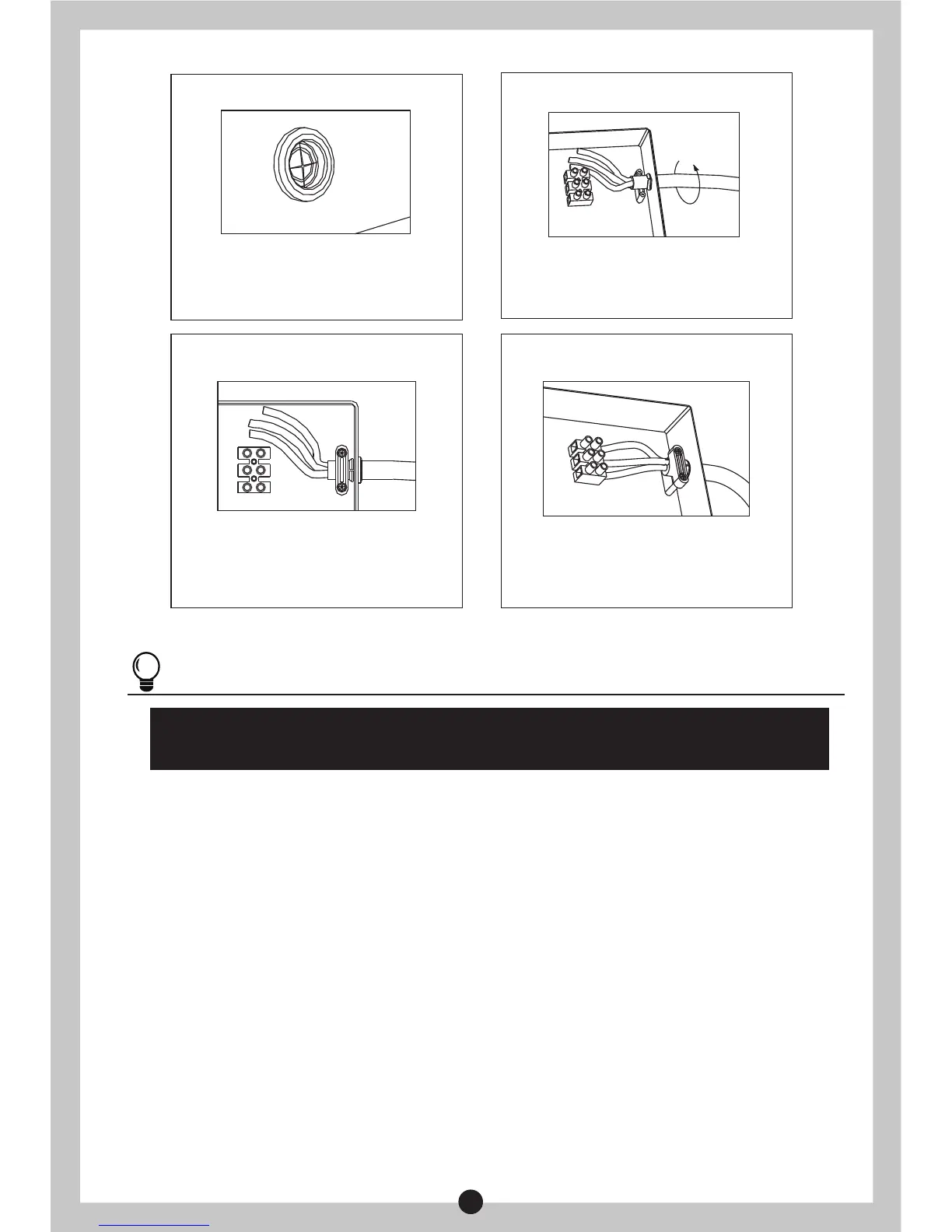

Step 3 Step 4
Step 5 Step 6
Gash the middle of the film of the power cord
jacket with a sharp knife in order to put into
power lines.
Tighten the wire-pressing plate with screws to
primary position, ensure that the power cord not
be pulled out more than 60N.
Screw the power cord into the jacket for
installation of wire pressing plate.
Connect the power cord to wiring terminals; the
method is as shown in picture.
6
