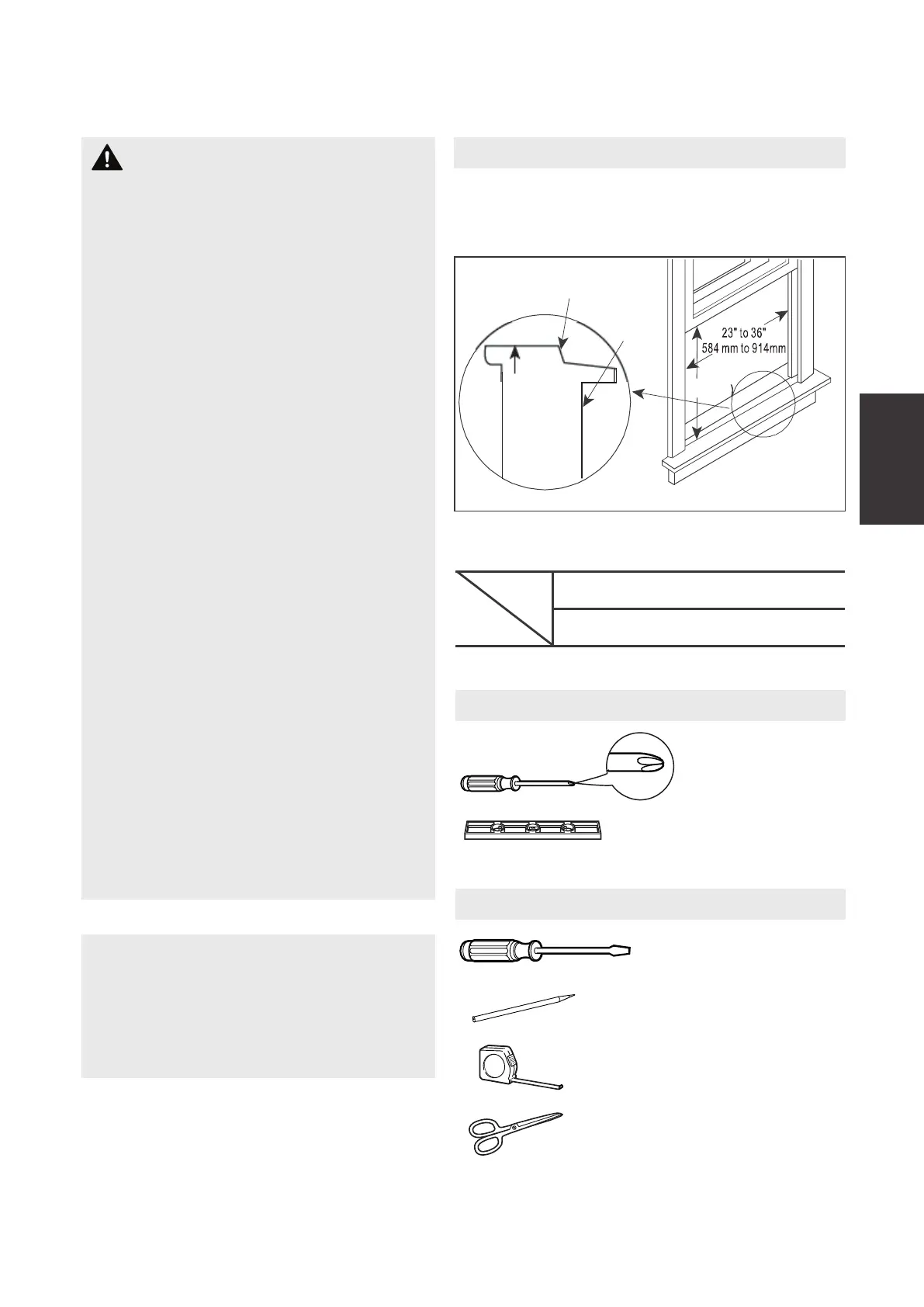

INSTALLATION INSTRUCTIONS
Installation
Instructions
Window Requirements
WARNING - Before You Begin
Read these instructions completely
and carefully.
• IMPORTANT
- Save these instructions.
• IMPORTANT
- Observe all governing
codes and ordinances.
We recommend that two people
install this product.
Proper installation is the responsibility
of the installer.
Product failure due to improper
installation is not covered under the
Limited Warranty.
You MUST use all supplied parts and
use proper installation procedures as
described in these instructions when
installing this air conditioner.
Do not, under any circumstances, cut
or remove the third (ground) prong
from the power cord.
Do not change the plug on the power
cord of the air conditioner.
Aluminum house wiring may present
special problems - consult a qualified
electrician.
When handling the air conditioner, be
careful to avoid cuts f
rom sharp metal
edges and aluminum fins on front and
rear coils. Please wear cut-resistant
gloves.
NOTICE
Save the carton and these installation
instructions for future reference.
The carton is the best way to store the
unit when not in use.
Tools You Will Need
Tools You May Use
Your air conditioner is designed to install in
standard double hung windows with opening
widths of 23” to 36” (584mm to 914mm).
Model
8000 BTU/h
H
14” (356mm)
Table 1
H
Wooden Windows
INTERIOR
WALL
OFFSET
WINDOW
SILL
INNER
EXTERIOR
WALL
Fig. D
Phillips
Screwdriver
Level
Flathead
Screwdriver
Pencil
Ruler or tape measure
Scissors or knife
