were respectively taken to fasten the
synchronous motor on the outlet grid.
3. Install the outlet grille assembly into the
front shell assembly and attach the wire
harness of the synchronous motor to the slot.

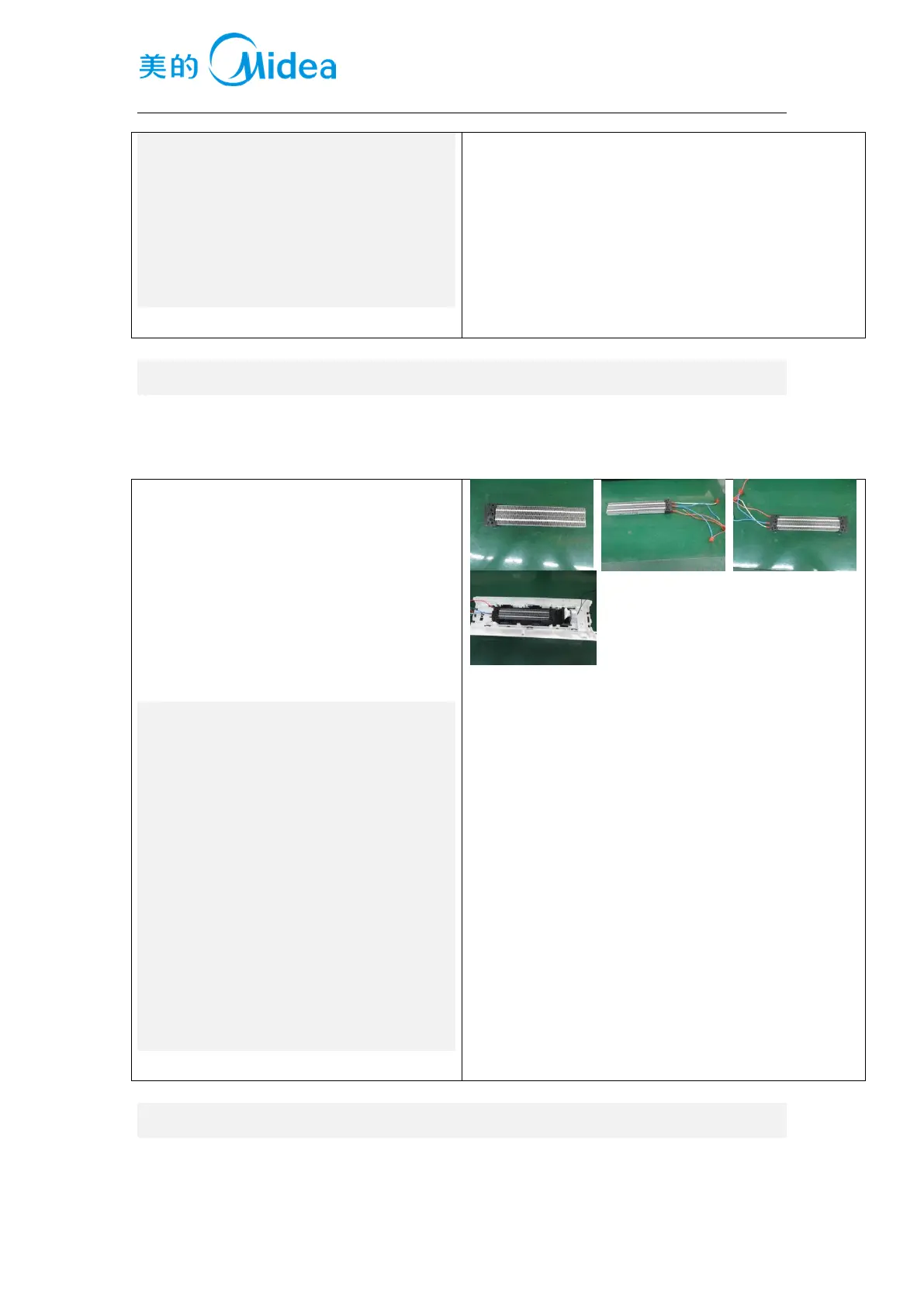

1. 取一 PTC 发热体检查散热片无变形，将 PTC
支架套入引脚中；
2. 取 3 组线束以直插端按红色线束接插于
PTC 带字端，蓝色线束插于中间端子，白色
线束插无字端；
3. 取一个 PTC 支架套入 PTC 发热体另一端并
将 PTC 组件对应安装入出风格栅中。
1. A PTC heating body was taken to check that
the radiator fin was not deformed, and PTC
support was put into the pin;
2. Take 3 sets of wire bundles and insert them
at the PTC band word end with the straight
insertion end according to the red line bundle,
with the blue one at the middle terminal and
the white one at the untyped end;
3. Take a PTC bracket and install the PTC
component into the outlet grid.
