6)将 PTC 组件放入风道中，并使线束穿过底
部的孔。

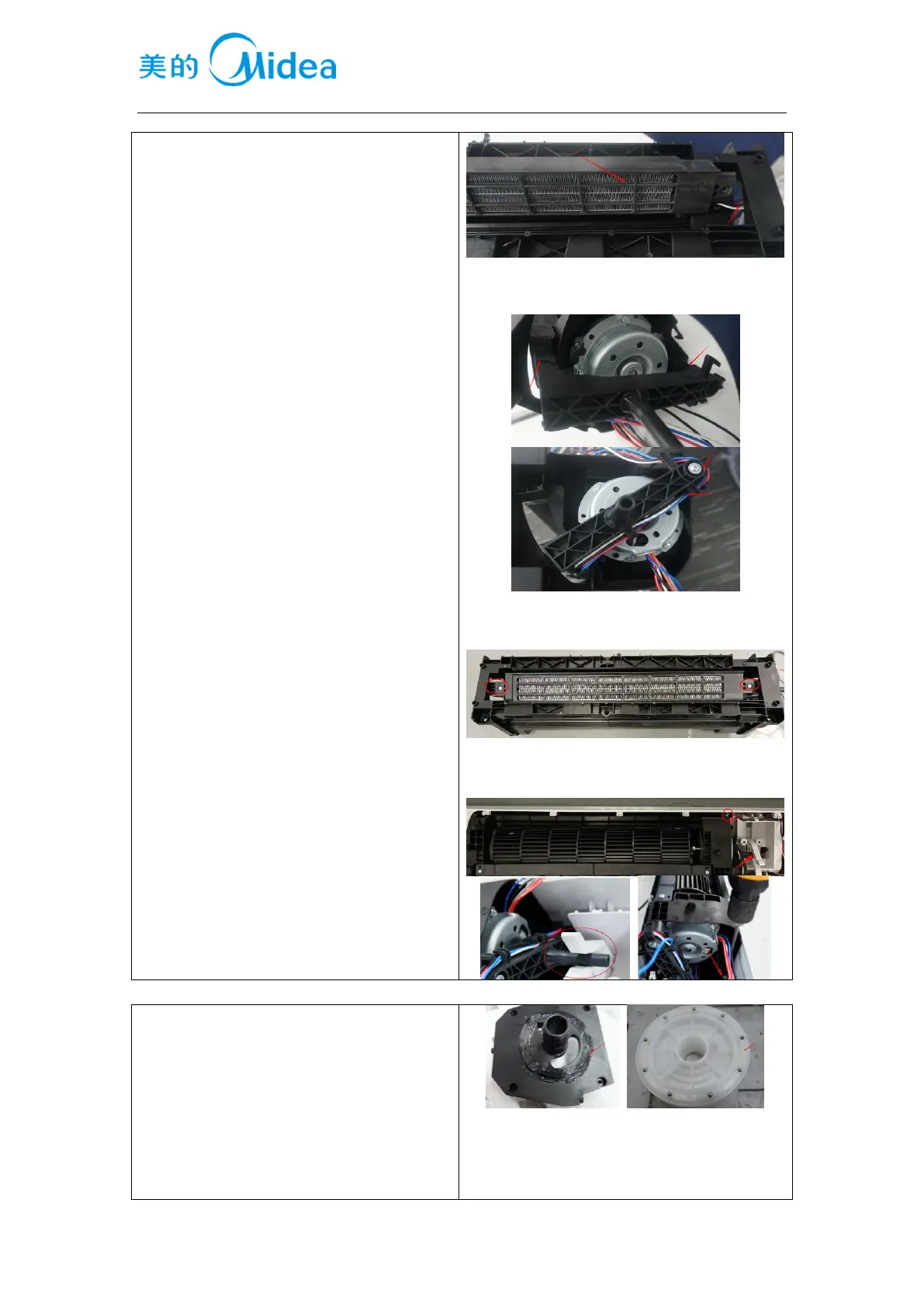

6) Put the PTC assembly into the wind
channel, let the wires pass through the hole at
the bottom of the wind channel.
7)将下转轴安装在风道上，并使卡扣插入
PTC 支架；将线束扣入下转轴的扣位，并打
上螺钉固定下转轴与风道。
7) Install the down rotation shaft on the wind
channel, and insert the buckle into the PTC
supporting. Snap the wires into the buckle of
the down rotation shaft, and tighten the screw
to fix it with the wind channel.
8)同样安装好上转轴，并拧紧螺钉，固定 PTC
支架与上下转轴。
8) Install the up rotation shaft in the same way,
and tighten the screw to fix the PTC supporting
with the up/down rotation shaft.
9)将风道安装在前壳上，确保下转轴放入拨
杆的 U 型槽中，拧紧前壳与风道之间的螺钉。
9) Install the wind channel components into the
front cover, ensure the down rotation shaft in
the U-shaped groove of the paddle.
1）将摇头支座安装在转动盘上，转动盘与摇
头支座之间上要放滚珠，安装好后，用卡簧
卡住摇头支座。
1) Install the oscillating supporting on the
rotary disc, and put the steel ball between
them, then use the circlip to seizing the
oscillating supporting.
