Midea NTH15-23AR User Manual

维修手册 Service Manual, 2021 v1.0
11 / 17

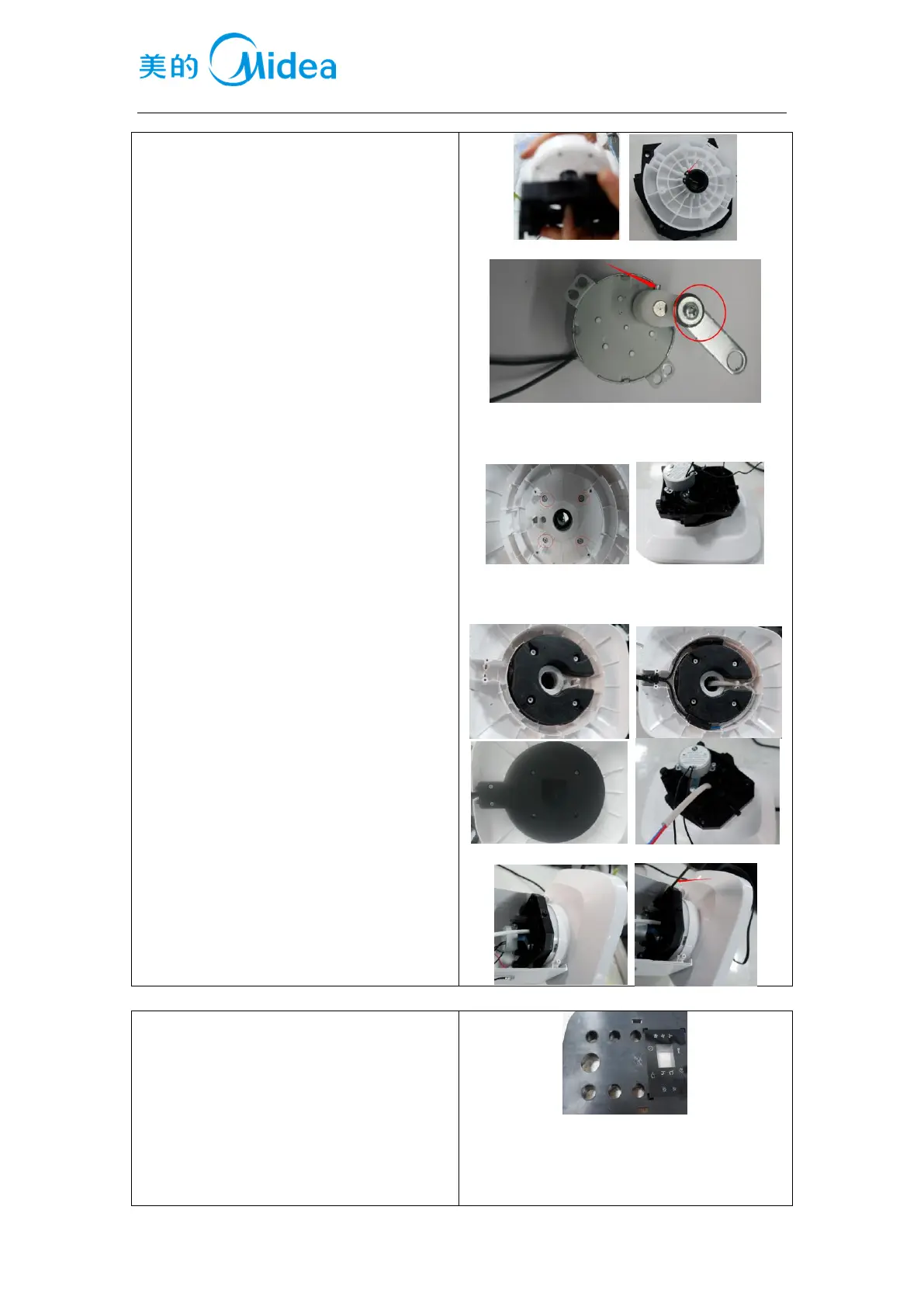

2) 安装同步电机组件：将同步电机、曲柄、
连杆安装在一起。
2) Install the synchronous motor assembly:
Install the synchronous motor, crank, and
connecting rod together.
3)将底座及同步电机组件安装到摇头支座组
件上。
3) Install the base enclosure and synchronous
motor assembly on the oscillating supporting
assembly.
4)将配重块放入底座，安装好电源线统配组
件，盖上底盖。
4) Put the counterweight into the base
enclosure, install the power cord component,
and then put the bottom cover on it.
5）将摇头组件安装到前壳上。
5) Install the oscillation assembly on the
front cover.
3.5 安装顶盖组件 Install the top cover assembly
1)将面贴贴到顶壳上。
1) Attach the surface sticker to the top shell.
