维修手册 Service Manual, 2021 v1.0
4 / 17

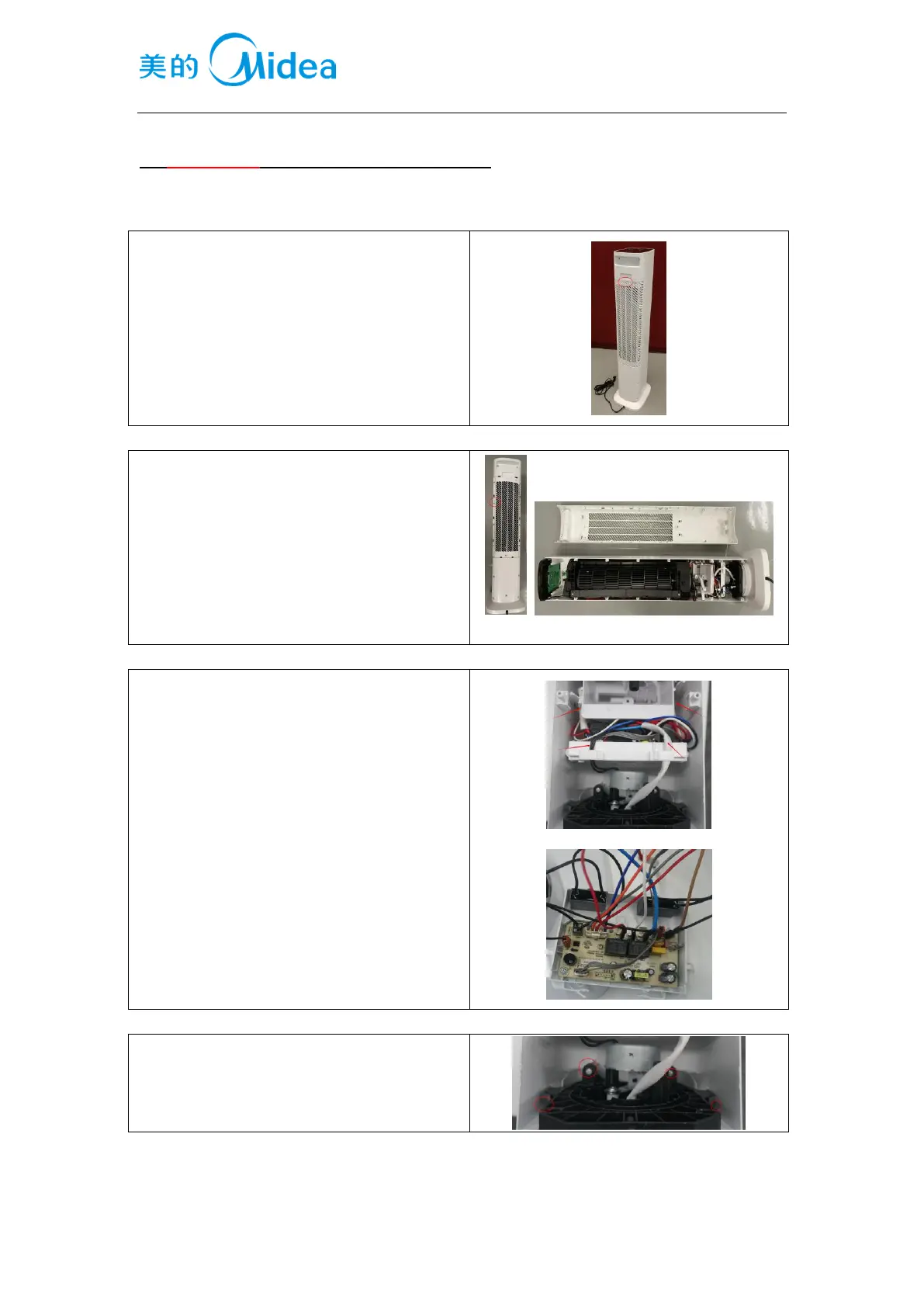

2. 整机拆卸 Dismantling of appliance
2.1 拆滤网盖 Remove the filter cover
松开固定滤网盖的 1 颗螺钉，取下滤网盖。
Loosen the screw that fix the filter cover and
rear cover, remove the filter cover.
2.2 拆后壳 Remove the rear cover
松开固定前后壳的螺钉，取下后壳。
Loosen the screws that fix the rear cover and
front cover, and remove the rear cover.
2.3 拆电路板盒 Split the Power PCB box
从扣位中取出各线束，松开固定电源板盒的螺
钉，拿出电源板盒，然后手工拆下线束的端子
Remove the wires from the buckle， Loosen the
screws that fix the Power PCB box and front
cover, and remove it. Then remove the wire
terminal from the PCB by hand.
2.4 拆摇头结构 Dismantling the oscillation parts
松开底盖及同步电机的螺钉，取下底盖和同步
电机。
Loosen the screws that fix the Synchronous
motor and the bottom cover. Then remove them.
