Midea RG15B/E User Manual

1. Front panel
2. Air filter
3. Frame
4. Cabinet
5. Air inlet grille (outdoor side)
6. Air outlet grille
7. Electronic control keypad
8. Power supply cord
9. Remote control

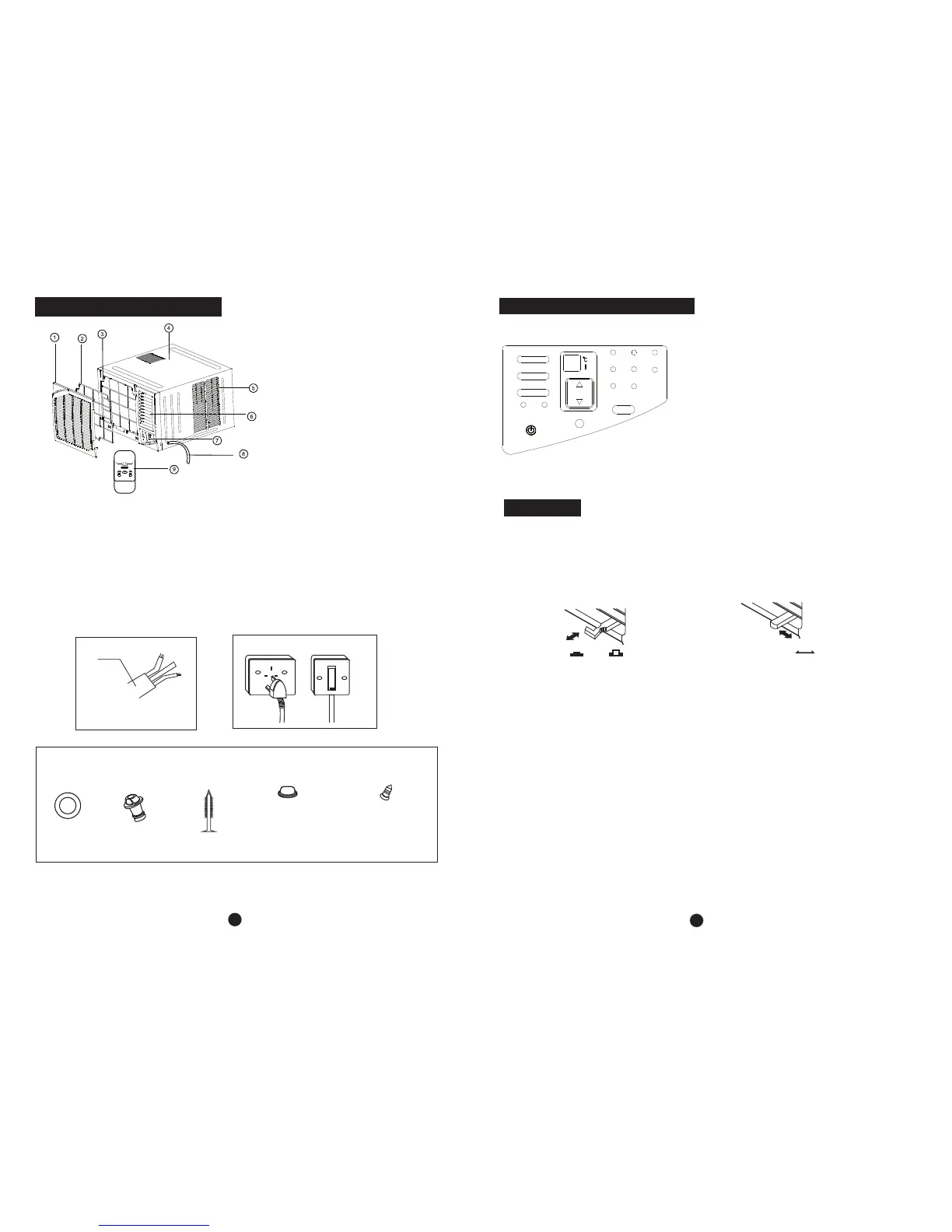

UNIT PARTS IDENTIFICATION
POWER
CORD
A
E
N
E-Earth wire, yellow/green
N-Neutral wire, blue
A-Active wire, brown
Fig.1
Fig. 2
Wall outlet Air-break switch
Accessories
Seal
(Used on
drain joint)
1
1
Screw
Drain Joint
Rubber Plug
NOTE
8
Wooden screw
(optional)
5
6
Control Panel
AIR CONDITIONER FEATURES
1. Power cord conductors are distinguished according to color as follows (see Fig.1)
2. For your safety and protection, this unit is earthed through the power cord (see Fig.2)
Please contact the manufacturer or its service agent or a similar qualified person if you
want to replace it.
3. Be sure that the unit being correctly grounded. The wall outlet (Air-break switch) should
be provided with reliable earth wire.
4. The unit should be provided with an individual circuit and the circuit breaker/fuse rating
should be the same as that of the power cord and wall outlet.
1 or 2
(depend on type you purchased)
2 (For >19000kJ/h models only:
used to fasten the front panel)
All the illustrations in the manual are for explanation purpose only. Your air conditioner may be
sligthly dierent. The actual shape shall prevail.
Remote for Remote model
AUTO
HEAT
SWING
TIMER
SWING
TEMP
FAN
MODE
POWER
COOL
FAN DRY
SLEEP
HIGH
MED
LOW
Vent Control
The vent control is located above the control knobs. The operation method is different on
different models (see the following figures).
For maximum cooling efficiency, CLOSE the vent. This will allow internal air circulation.
OPEN the vent to discharge stale air.
CLOSE VENT OPEN
To open the vent, pull the lever toward you
To close it, push it in.
To open the vent, set the lever to the right position
To close it, set the lever in the left position.
CLOSE OPEN
NOTE: The VENTILATION LEVER should normally be kept in the CLOSED position during
cooling for maximum cooling effect. The "OPEN" position is used only for ventilation.
