4. Service Space

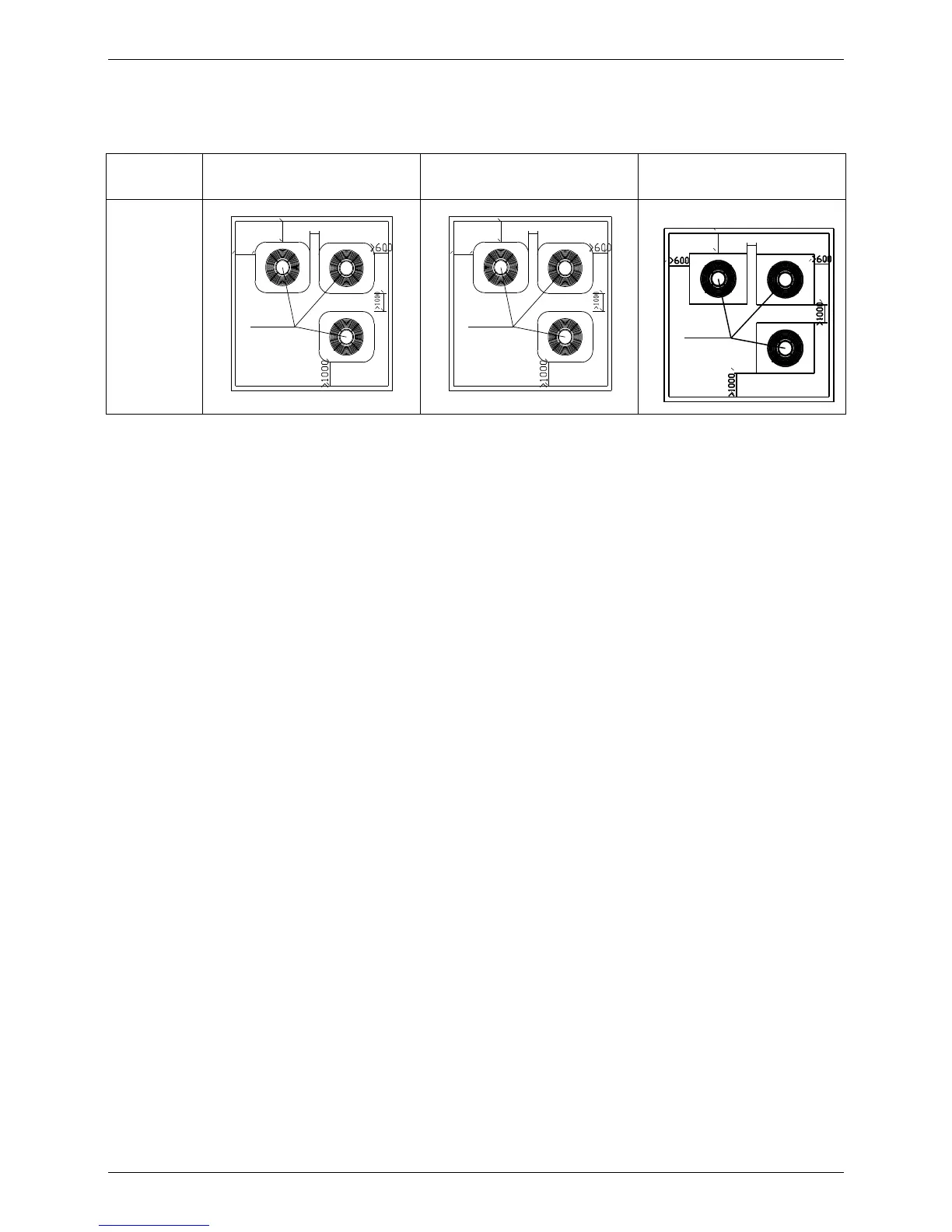

Make sure that enough space for maintenance and air inlet is left when installing (as
diagrams below)
Model
RSJ-100/N1-540V-D
RSJ-200/SN1-540V-D
RSJ-380/SN1-820-D
Maintenance
space
>600
>1000
>400
Heat pump water heating unit
>600
>1000
>400
Heat pump water heating unit
>600
>400
Heat pump water heating unit
Note: The air outlet of the unit at the top cannot be blocked. If there are obstacles above it, keep the unit at least 2000 mm
away from them.
