Midea SMK-D140HHN1-3

High Temperature Hydro Module
16 202003
Midea
VR High Temperature Hydraulic Module

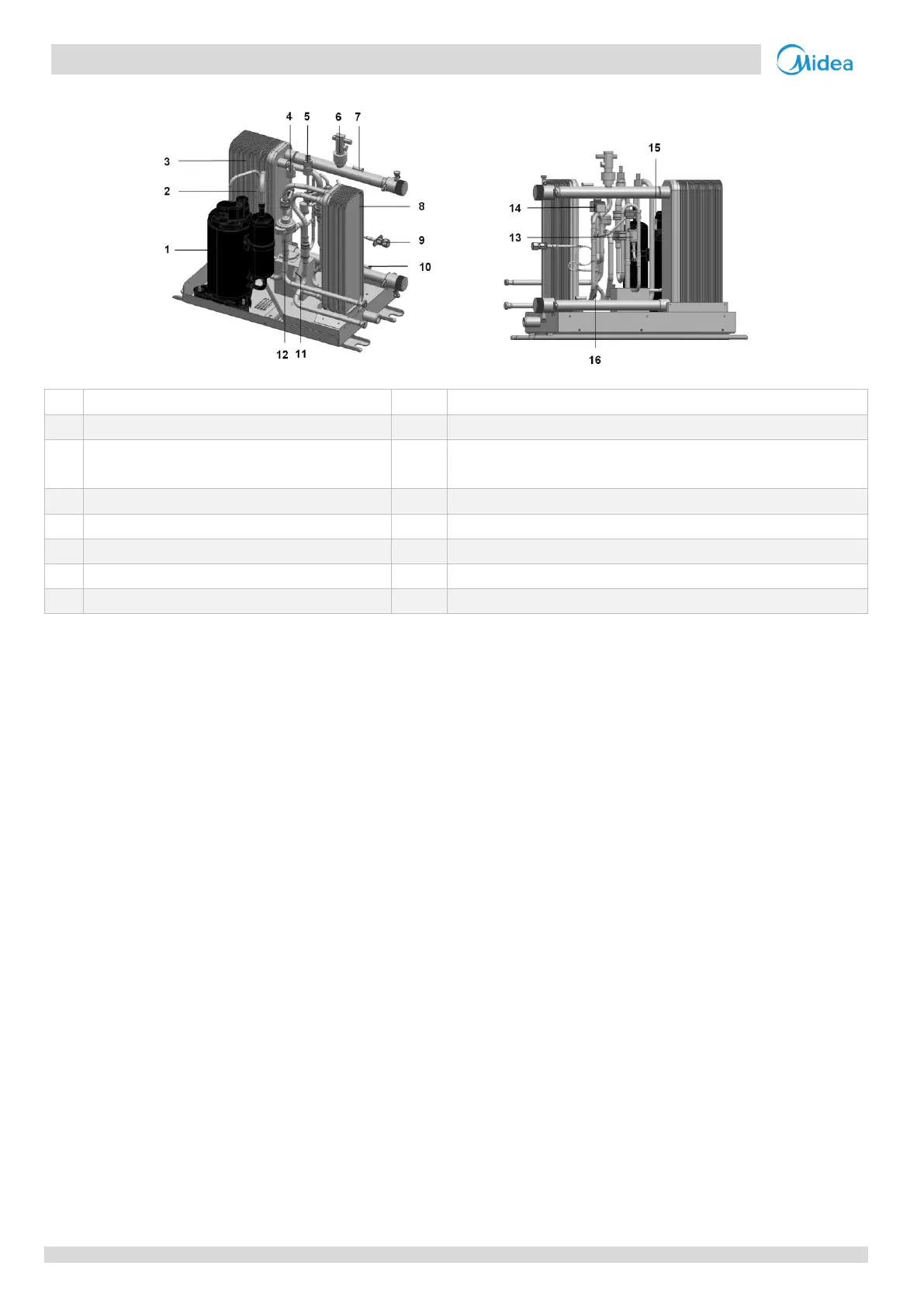

Main parts of the unit
1
Compressor
9
Access hole
2
Discharge temperature sensor
10
Water inlet temperature sensor
3
Plate heat exchanger used by the condenser
11
Liquid pipe temperature sensor at the outlet on the R410A
refrigerant side
4
Low pressure sensor
12
Electronic expansion valve on the R410A loop
5
High pressure sensor
13
High pressure switch
6
Water flow switch
14
Electronic expansion valve on the R134a loop
7
Water outlet temperature sensor
15
Suction temperature sensor
8
Plate heat exchanger used by the evaporator
16
Cold outlet temperature sensor on the R134a refrigerant side
