Engineering Data

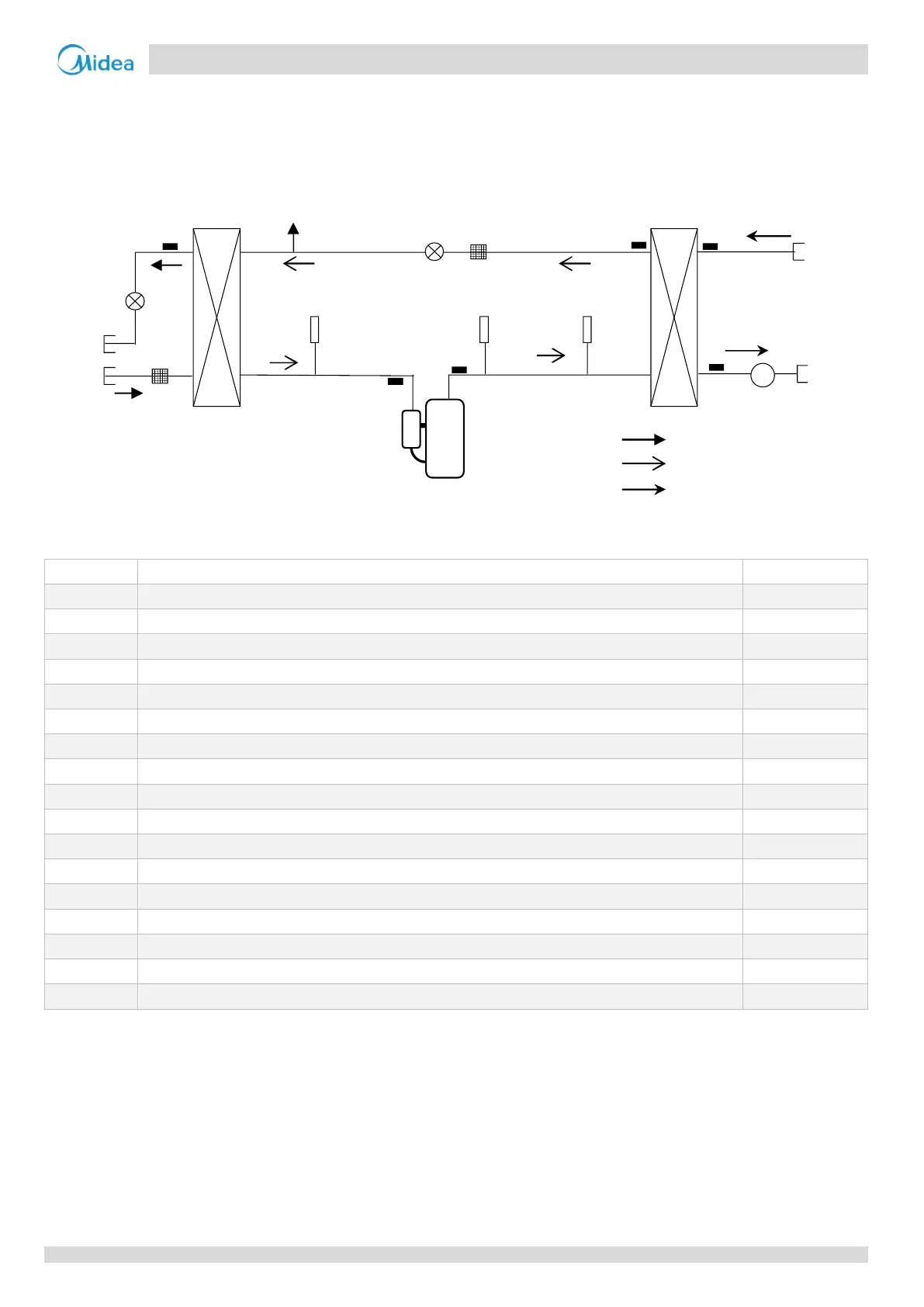

12 Piping Design
NO.
Description
1
Compressor
/
2
R134a to water Plate heat exchanger
/
3
Electronic expansion valve 1
EEV1
4
R410a to R134a Plate heat exchanger
/
5
Electronic expansion valve 2
EEV2
6
Discharge pipe temperature sensor
T7C
7
Suction pipe temperature sensor
T7
8
R134a circle liquid pipe temperature sensor
T3
9
R410a circle liquid pipe temperature sensor
T2A
10
Water inlet temperature sensor
Twin
11
Water outlet temperature sensor
Twout
12
Flow switch
FS
13
High pressure sensor
H-YL
14
Low pressure sensor
L-YL
15
High pressure switch
H-Pro
16
strainer
/
17
Service pot
/
1
15
13
6
2
10
3
4
14
7
16
5
11
9
8
17
F
12
16
R410a flow route
R134a flow route
Wafer flow
Key components:
1. Compressor: Drive R134a coolant flow
2. R134a to water Plate heat exchanger ：
3. Electronic expansion valve 1：Control R134a refrigerant circulation flow
4. R410a to R134a Plate heat exchanger ：Heat transfer between R410a and R134a refrigerants
5. Electronic expansion valve 2：Control the R410a coolant flow of the hydraulic module
