Midea SMK-D140HHN1-3

High Temperature Hydro Module
202003 29
Engineering Data
8 Application Examples

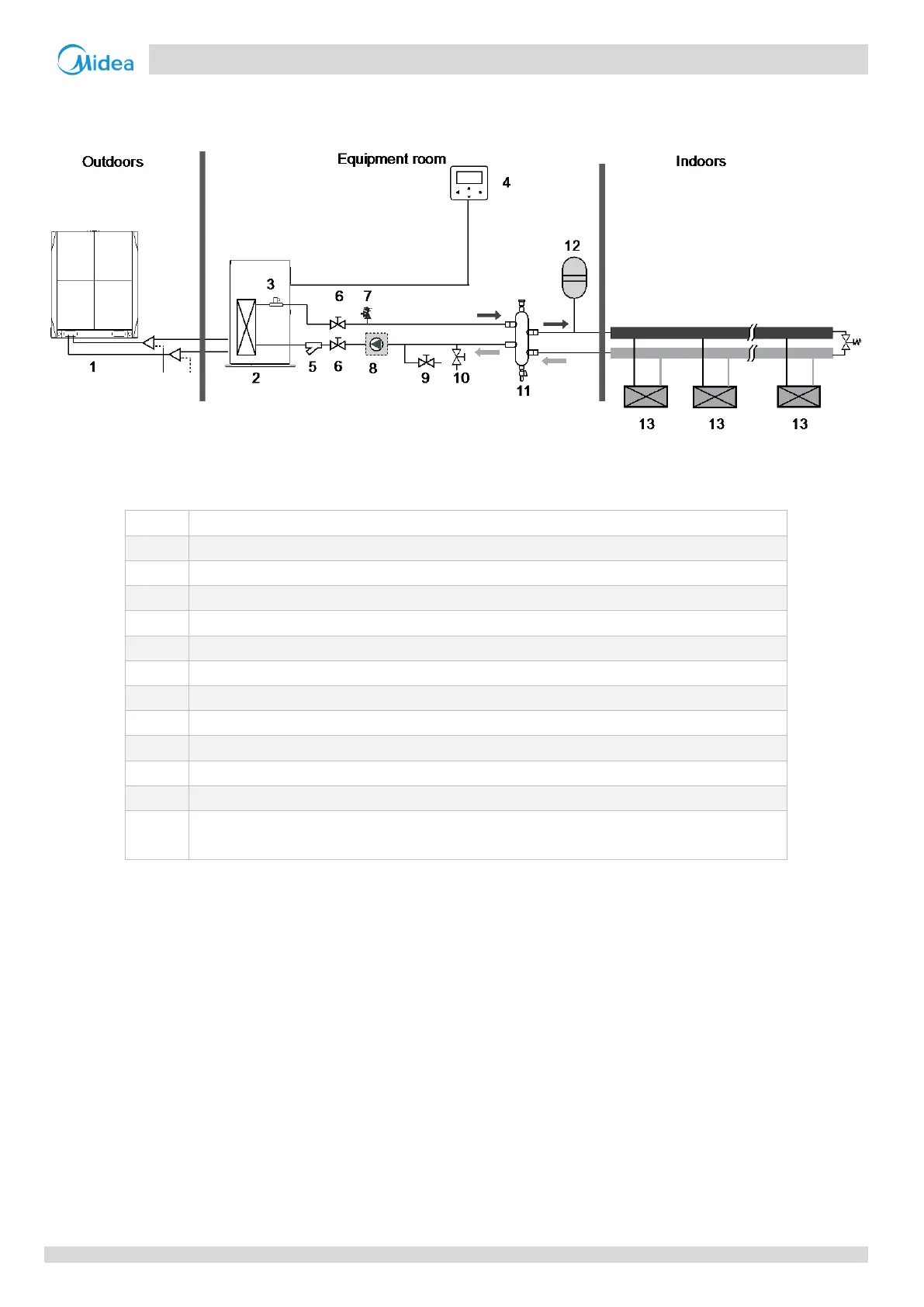

Only heating mode is available and the heating mode operates in water outlet temperature control mode.
1
ODU
2
Hydraulic module
3
Water flow switch
4
Wired controller (Accessory)
5
Y-shaped filter (Accessory)
6
Check valve (Provided on site)
7
Safety valve (Accessory)
8
Water pump (Provided on site. For model selection, see page 32.)
9
Drain valve (Provided on site)
10
Water replenishing valve (Provided on site)
11
Water collector (Provided on site)
12
Water expansion tank (Provided on site. For model selection, see page 33.)
13
Terminals. The unit can connect to the floor heating device FHL (25 °C-45 °C), fan coil FCU
(45 °C-60 °C), and radiator (60 °C-80 °C), which have different temperature requirements.
