High Temperature Hydro Module
4 202003
Midea
VR High Temperature Hydraulic Module
3 System Schematic

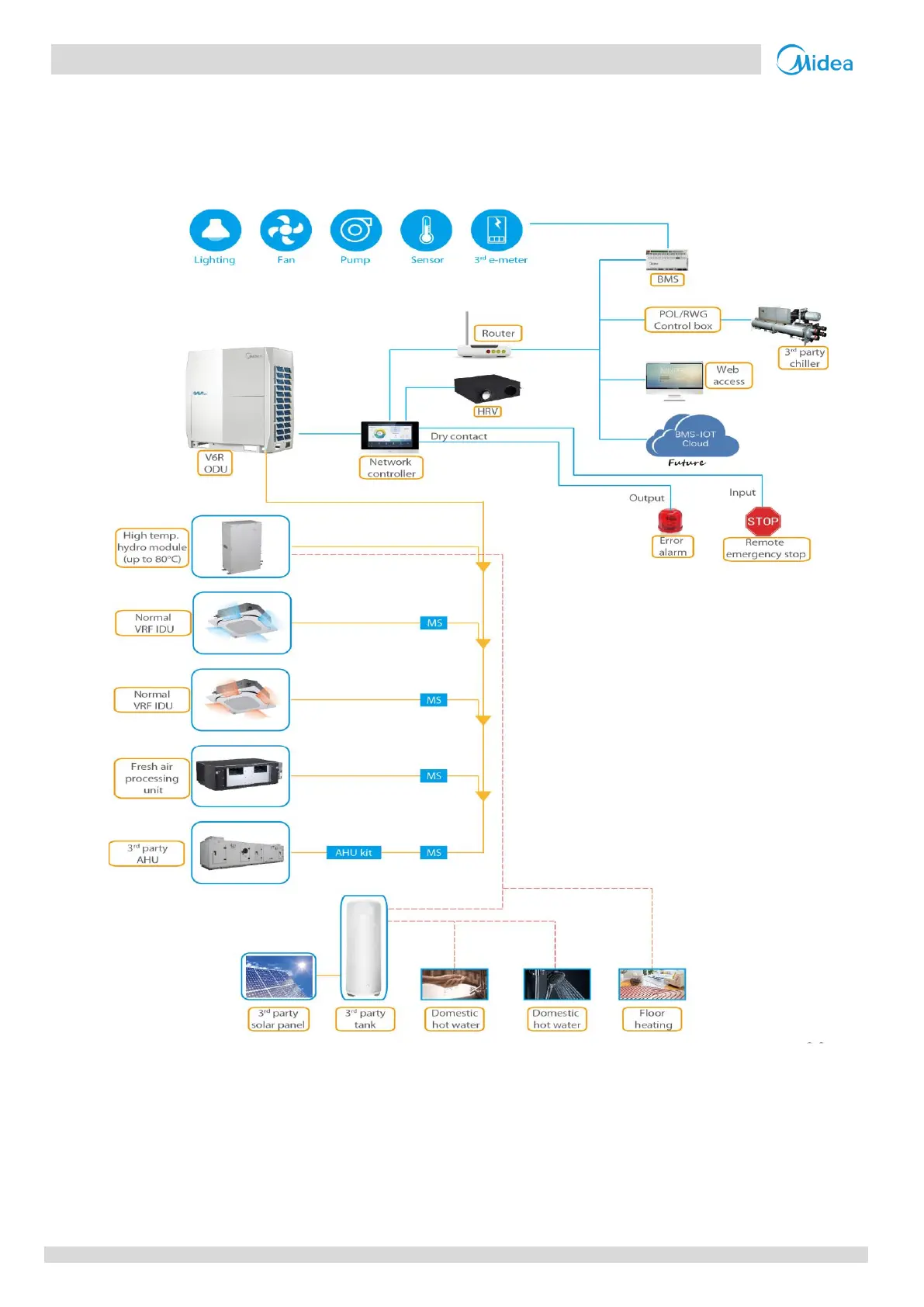

The following picture shows a schematic diagram using the High Temperature Hydraulic module and the VR system. The below
picture shows a detailed schematic of the VR system using high temperature hydraulic module.
Figure 3.1: Hydraulic box connection method
