Midea SMK-D140HHN1-3

High Temperature Hydro Module
202003 35
Engineering Data

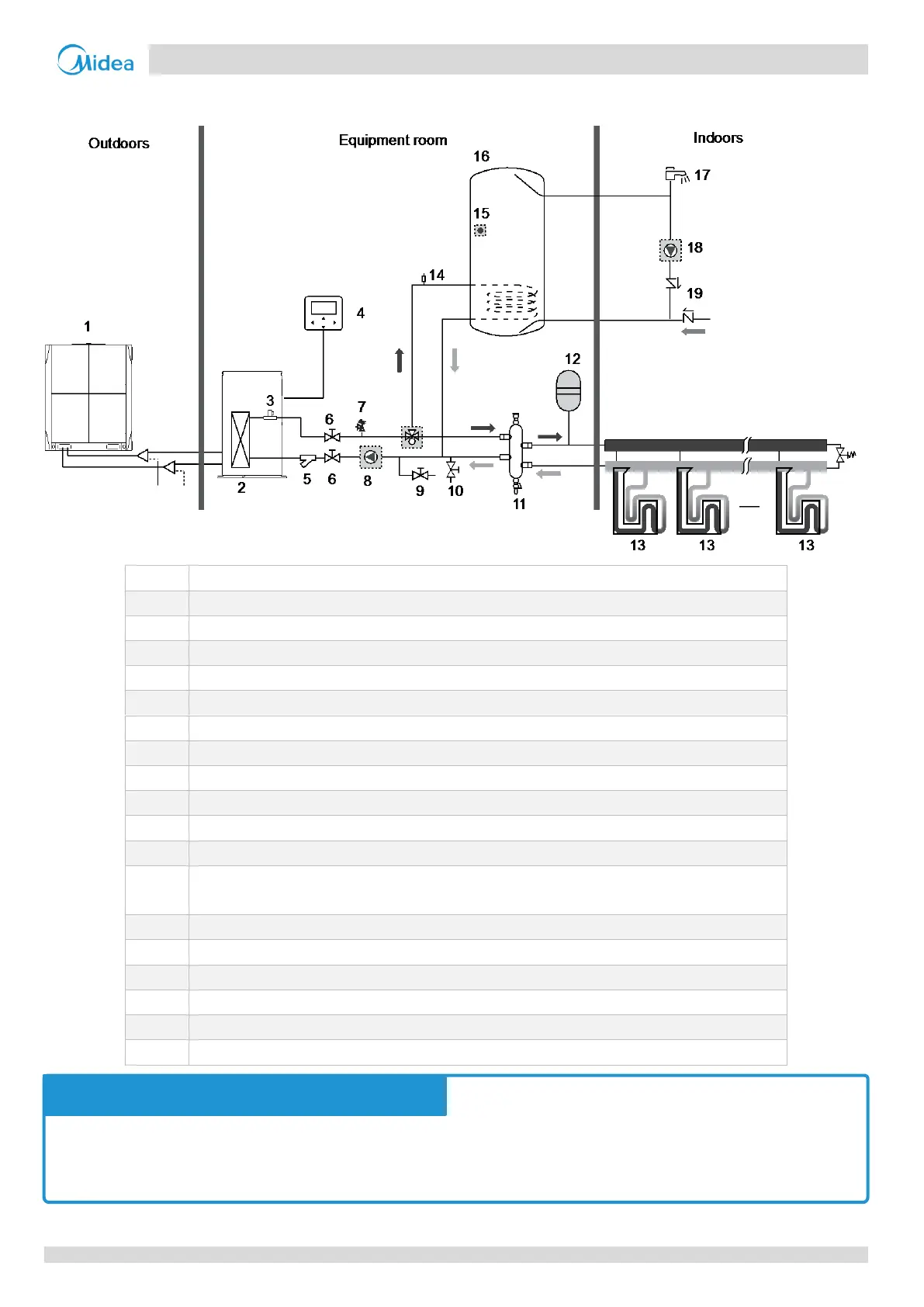

Heat Mode and DHW Mode
1
ODU
2
Hydraulic module
3
Water flow switch
4
Wired controller (Accessory)
5
Y-shaped filter (Accessory)
6
Check valve (Provided on site)
7
Safety valve (Accessory)
8
Water pump (Provided on site. For model selection, see page 32.)
9
Drain valve (Provided on site)
10
Water replenishing valve (Provided on site)
11
Water collector (Provided on site)
12
Water expansion tank (Provided on site. For model selection, see page 33.)
13
Terminals. The unit can connect to the floor heating device FHL (25 °C-45 °C), fan coil FCU
(45 °C-60 °C), and radiator (60 °C-80 °C), which have different temperature requirements.
14
Discharge valve (Provided on site)
15
Water tank (Provided on site)
16
Temperature sensor of the water tank (Accessory)
17
Tap (Provided on site)
18
Water tank and water pump (Provided on site)
19
One-way valve (Provided on site)
Caution
Terminals on the water system side can connect the fan coil (floor heating device/radiator) for heating or a water tank
for water heating. Water heating requires the temperature sensor of the water tank provided among accessories to detect
water tank temperature. The hydraulic module controls the three-way valve to switch to heating or DHW modes.
Notes for installers and service engineers

