Midea SMK-D140HHN1-3

High Temperature Hydro Module
38 202003
Midea
VR High Temperature Hydraulic Module

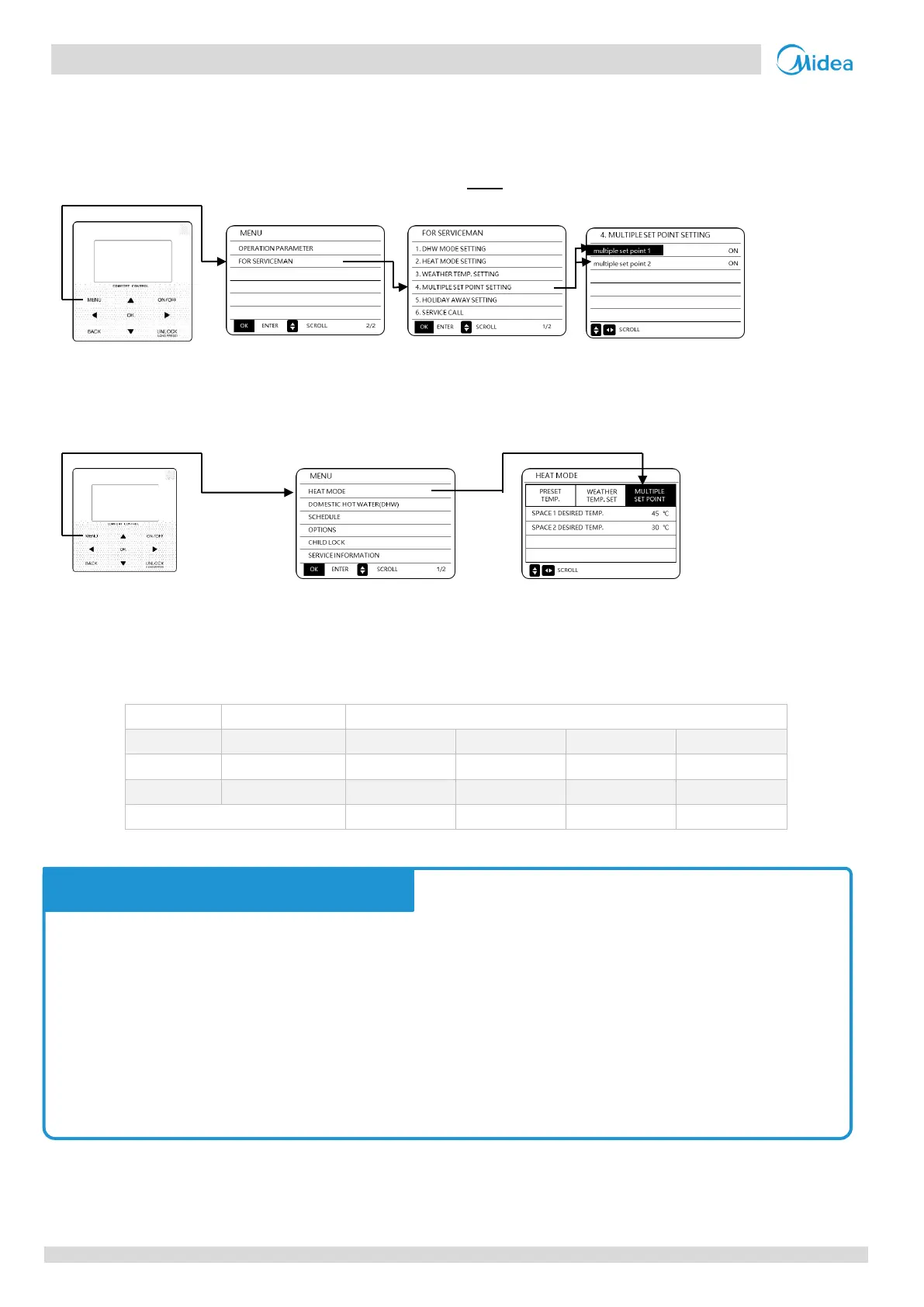

Enabling the multiple set point of the wired controller:
 When only heating mode is available, the settings are the same as those described above.
 Multiple set point settings are as follows:
 Temperature settings of multiple set points
No.
Desired temp.
Thermo status
space 0
a
OFF
ON
OFF
OFF
space 1
b
OFF
ON/OFF
ON
OFF
space 2
c
OFF
ON/OFF
ON/OFF
ON
Resulting desired temp.
OFF
a
b
c
Caution

space0 can be set on the main interface of the wired controller, while space1 and space2 temperature are set
on the HEAT MODE interface

space0 should be the terminal that requires the highest temperature, while space2 requires the lowest
temperature. The temperature required by space1 is between those of space0 and space2. Both space1 and
space2 require a temperature reduction device.

The hydraulic module controls the water outlet temperature according to the highest required temperature
in the event of energy demand availability
Notes for installers and service engineers

multiple setpoint1=ON: Enable
multiple set point 1;
multiple setpoint2=ON: Enable
multiple set point 2;
SPACE 1 DESIRED TEMP.: Desired
temperature of multiple set point 1;
SPACE 2 DESIRED TEMP.: Desired
temperature of multiple set point 2;
