Service Manual_2020-V1.0
20

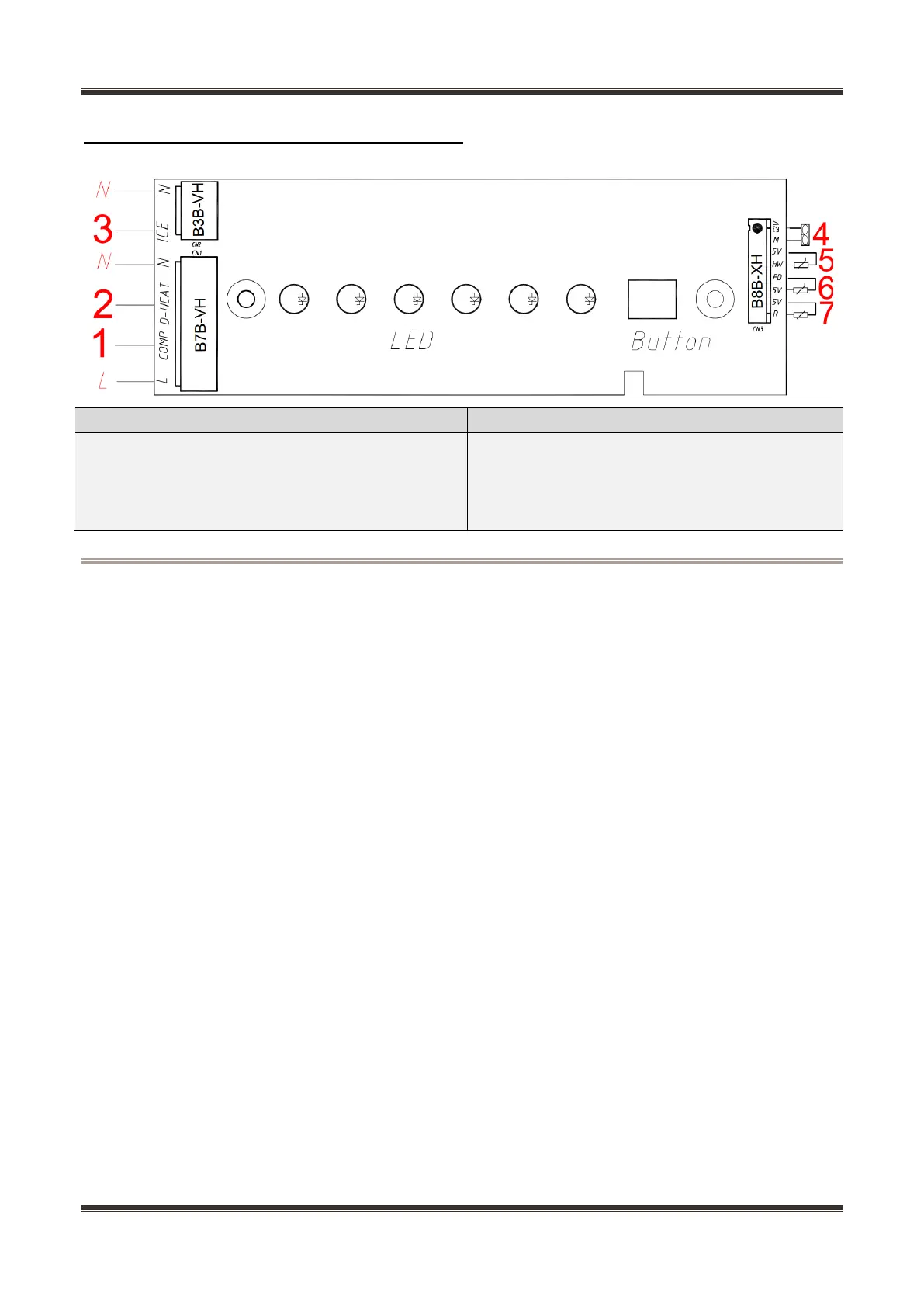

5.3 Main PCB terminal connection diagram
Connecting terminals
Connecting terminals
1、 Compressor
2、 Freezing frost heater
3、 Ice maker
4、 Freezing fan motor
5、 Ambient temperature sensor
6、 Freezing defrost sensor
7、 Refrigeration sensor
