MIDIPLUS Co, Ltd.
19
http://www.midiplus.com.tw

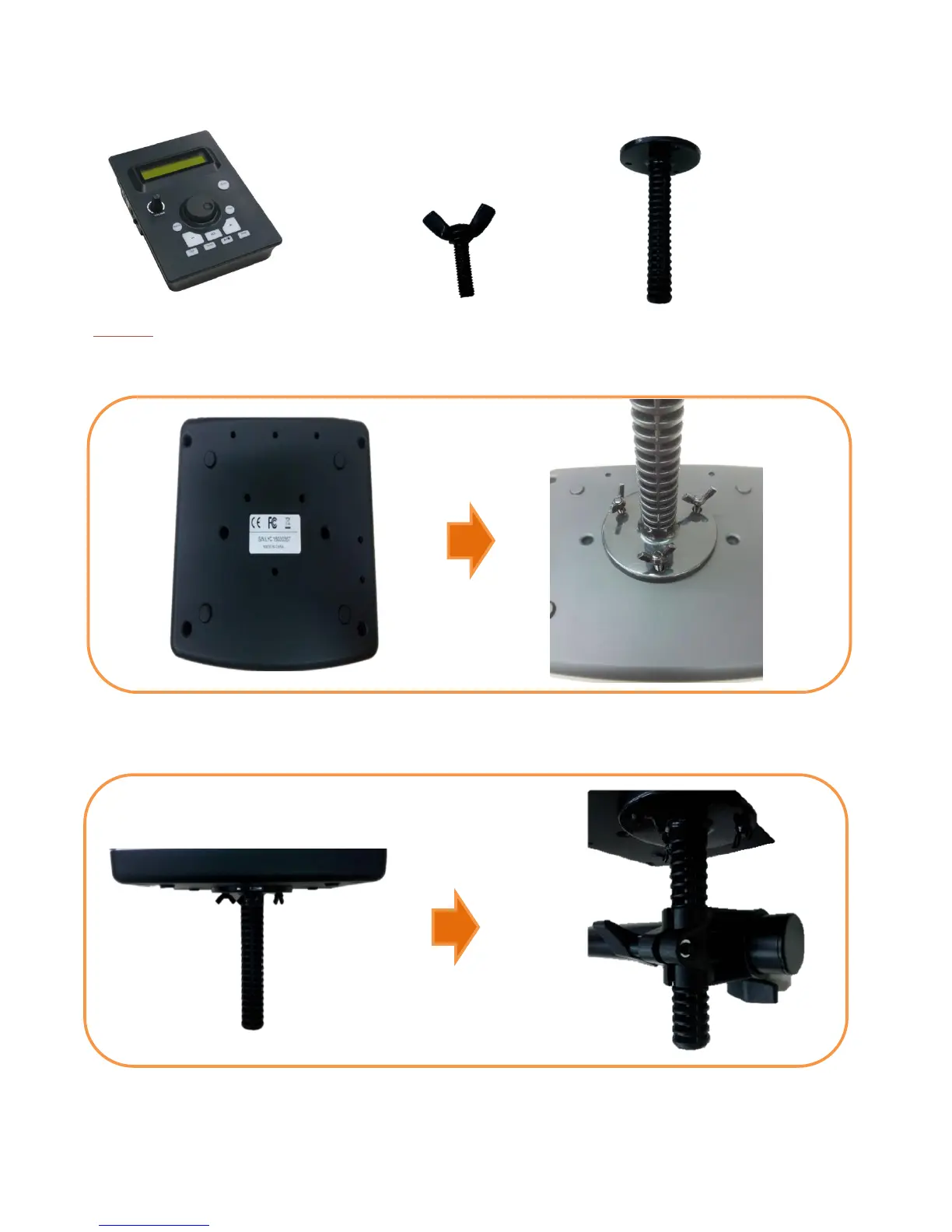

6.2. Control box assembly
Screw X 3 model rod X1
ASSEMBLY
The back of the control box has three screw holes aligned holes lever control box, screw lock
Control box assembly to the bracket, lock can be fixed, then the audio cable into the corresponding socket.
Z11 come with adaptor and cable DB25
