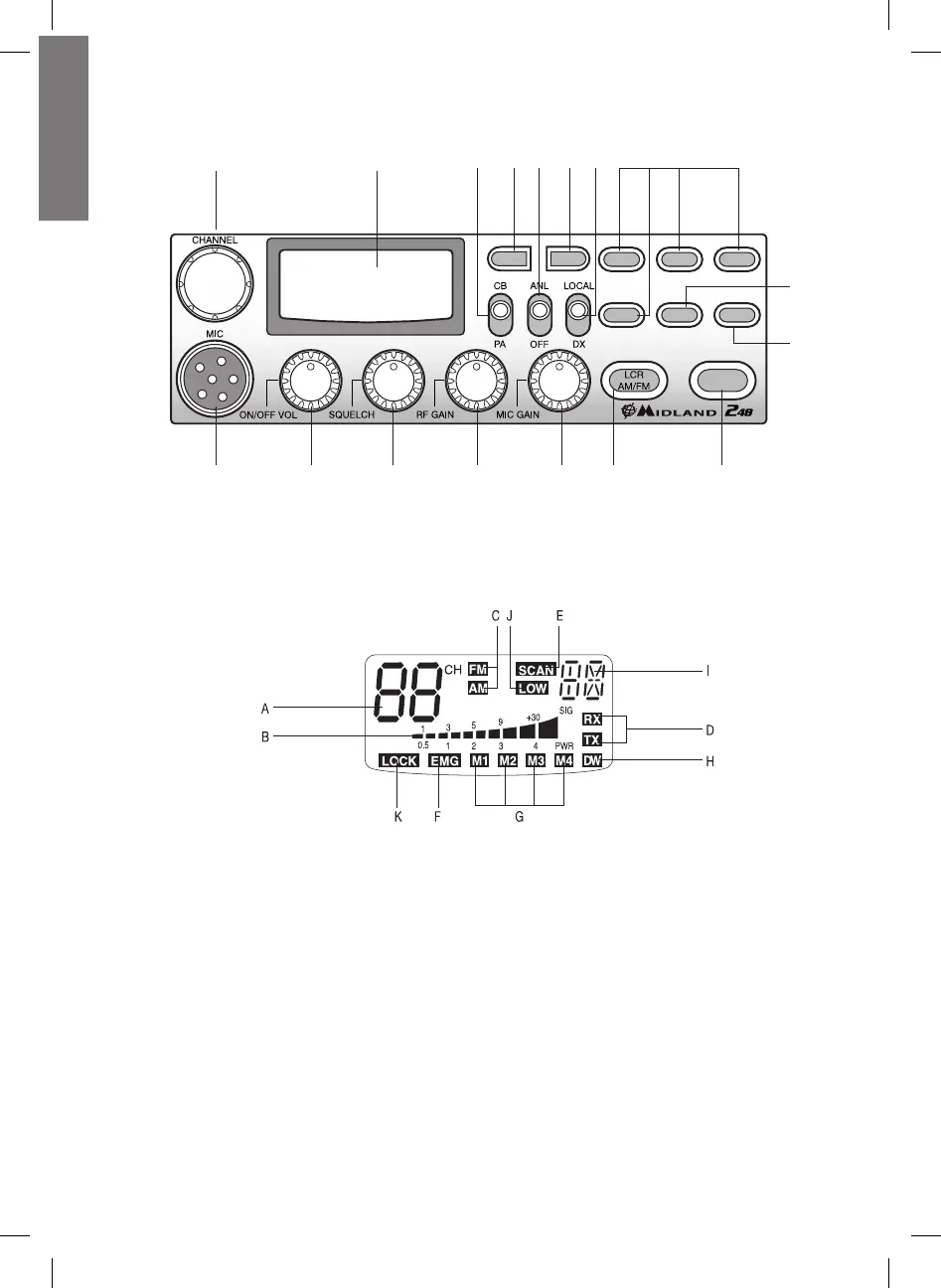

DESCRIZIONE COMANDI
1. Ricerca manuale canali
2. Presa microfono: Inserire lo spinotto nell’apposita presa.
3. Display retroilluminato multifunzione
A. Numero canali selezionati
B. Indicatore di intensità del segnale ricevuto e di potenza di segnale trasmesso
C. AM/FM: indicatore del modo di emissione
D. RX/TX: indicatore ricezione (RX) e trasmissione (TX)
E. SCAN: indicatore funzione SCAN attivata
F. EMG: indicatore lampeggiante canale d’emergenza attivato
G. M1-M2-M3-M4: indicatori memorie canali
H. DW: funzione Dual Watch attivata
I. Indica la banda di frequenza selezionata.
J. LOW: viene visualizzato quando la radio trasmette in bassa potenza (condizione
che si verifica solo per determinate bande di frequenza vedi tabella bande).
K. LOCK: Attivazione del blocco tastiera (UP/DOWN) del microfono.
4. Manopola ON/OFF-VOLUME: Posizione ‘’OFF’’: Apparato spento; Posizione ‘’Volume’’:
Ruotando la manopola, regolare il volume al livello desiderato. Con il selettore ‘’PA-
1
3 12
6 7542
Q.UP
M1 M2 M3
M4 DW
EMG
SCAN
Q.DOWN
15 16
10 13 11 14 8
17
9

Other manuals for Midland 248

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Midland 248 and is the answer not in the manual?

Midland 248 Specifications

Operating Environment IconOperating Environment
frequency range26.565 - 27.99125 MHz
duty cycleTX 5% - RX 5% - Stand-by 90%
operating temperature range-10°/+55° C
Power IconPower
dc input voltage12.6VDC ±10%
current drain at stand-by250mA
current drain max2500 mA
Receiver IconReceiver
sensitivity fm mode0.5µV for 20 dB SINAD
audio output power2.0 W @ 8 Ohm
audio distortionless than 8% @ 1 KHz
Transmitter IconTransmitter
output power4W max
modulation amfrom 85% to 95%
modulation fm1, 8 KHz ± 0, 2 KHz
Weight and Dimensions IconWeight and Dimensions
size180 (L)x50 (H)x150 (P) mm
weight1kg
