Steam-Jacket Configurations
Note that only the legacy A-522 models have a steam jacket configuration; the updated A-522A does not have this
configuration.

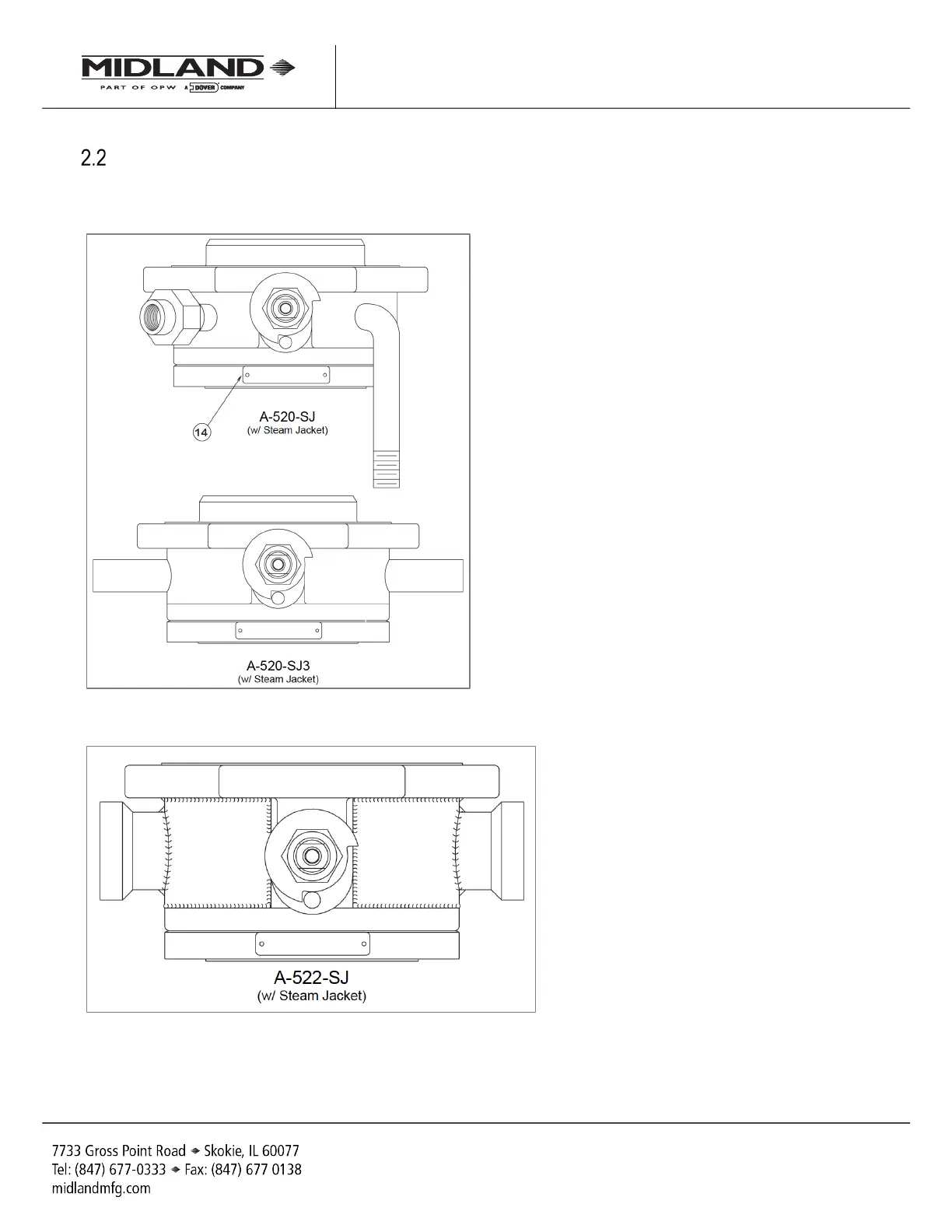

Figure 2-3 A-520-SJ Valve w/Steam-Jacket Configuration
Figure 2-4 A-522-SJ w/Steam-Jacket Configuration
A-520/A-522/A-522A, Rev. 3.0
