Display
The radio will have an LCD for displaying user information as follows:

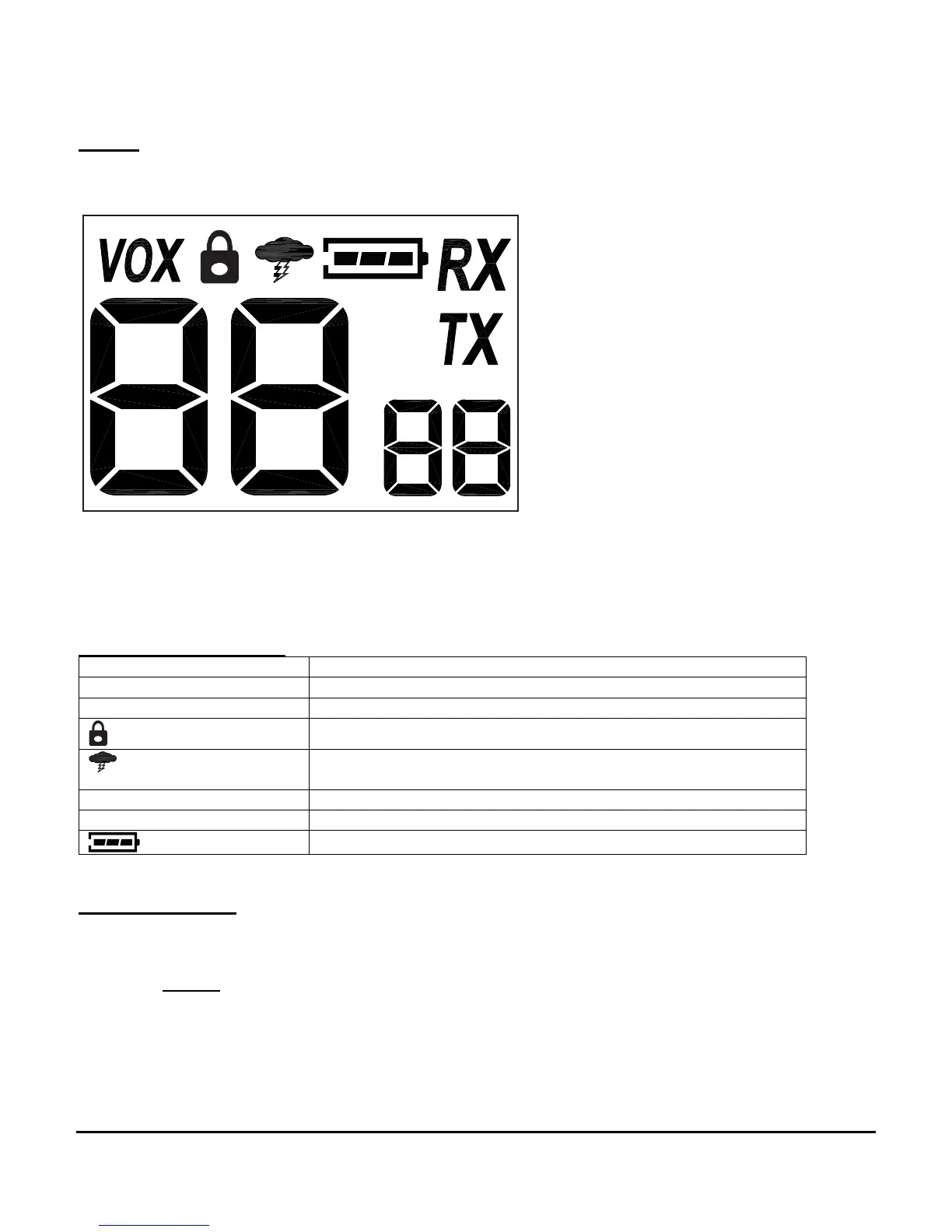

T20 LCD
LCD segment description
Large 7
-
segment
–
2 digits
Channel number
Small 7 segment
–
2 digits
CTCSS code
VOX Voice Activated microphone indicator
Indicates locked keypad. (PTT still active)
Indicates weather radio mode. Flashing if weather alert is
active.
RX Active when radio is receiving
TX
Active when radio is transmitting
Battery level indicator
Modes of operation
The radio has 5 modes of operation when the unit is powered on.
1. Standby
In Standby Mode, the radio is monitoring the current selected channel and will switch to Receive
mode if activity is detected.
