Removing the service panel and the
protective plastic cover
,
Isolate the machine from the
power supply.
^

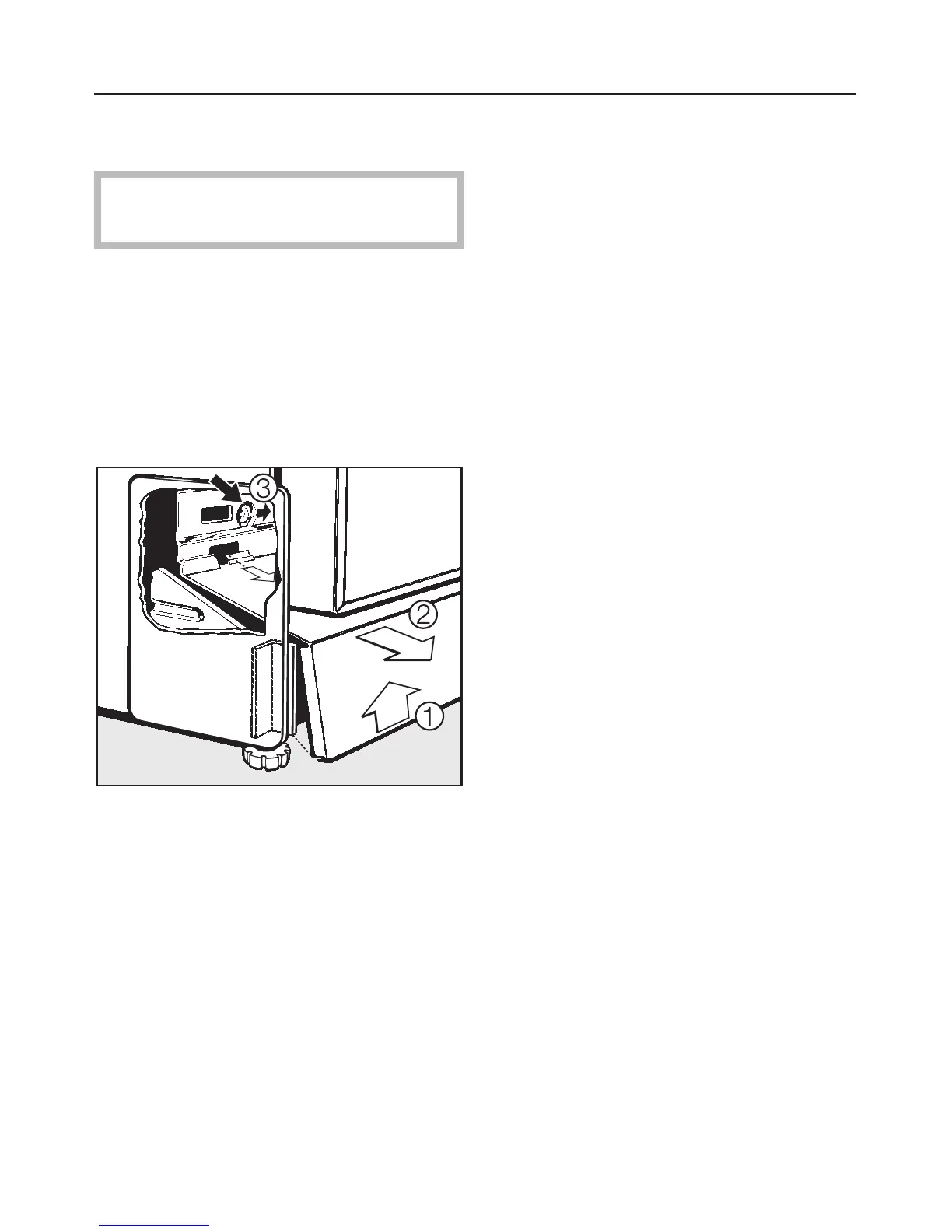

Holding the service panel on both
sides, pull gently outwards from
beneath, a, and remove it, b.
^
Remove the protective plastic cover
and unscrew the 2 screws (left and
right), c.
To reassemble:
^
Refit the protective plastic cover and
the service panel in the reverse
order.
^
See also the supplied installation
diagram.
