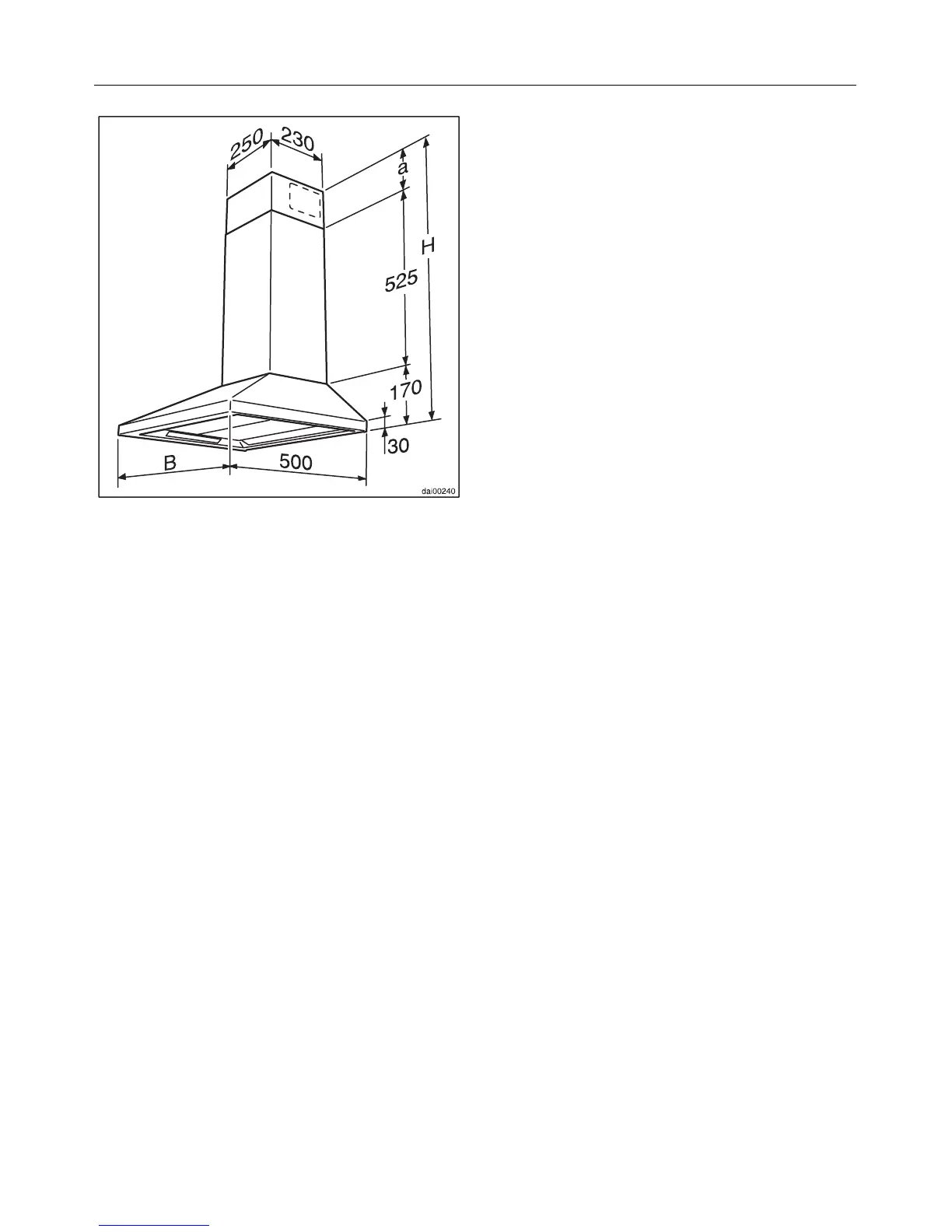

Appliance dimensions
DA 196: B = 599 mm
DA 199: B = 899 mm
H = 820 - 1110 mm - recirculation mode
H = 800 - 1020 mm - extraction mode
(with extraction through a wall)
H = 770 - 1020 mm in extraction mode
(with extraction through the ceiling)
There must be a minimum distance of
20 mm between the main tower shaft
and the ceiling so that the main shaft
can be taken off if the cooker hood is
dismantled at a later date.
Extension piece
An extension piece allows the cooker
hood to be fitted at varying distances
from the ceiling.
The different measurements for the
height H are due to the different
method of installation for the extension
piece for extraction or for recirculation
connection. Refer to the section on in-
stallation.
Appliance dimensions
17
