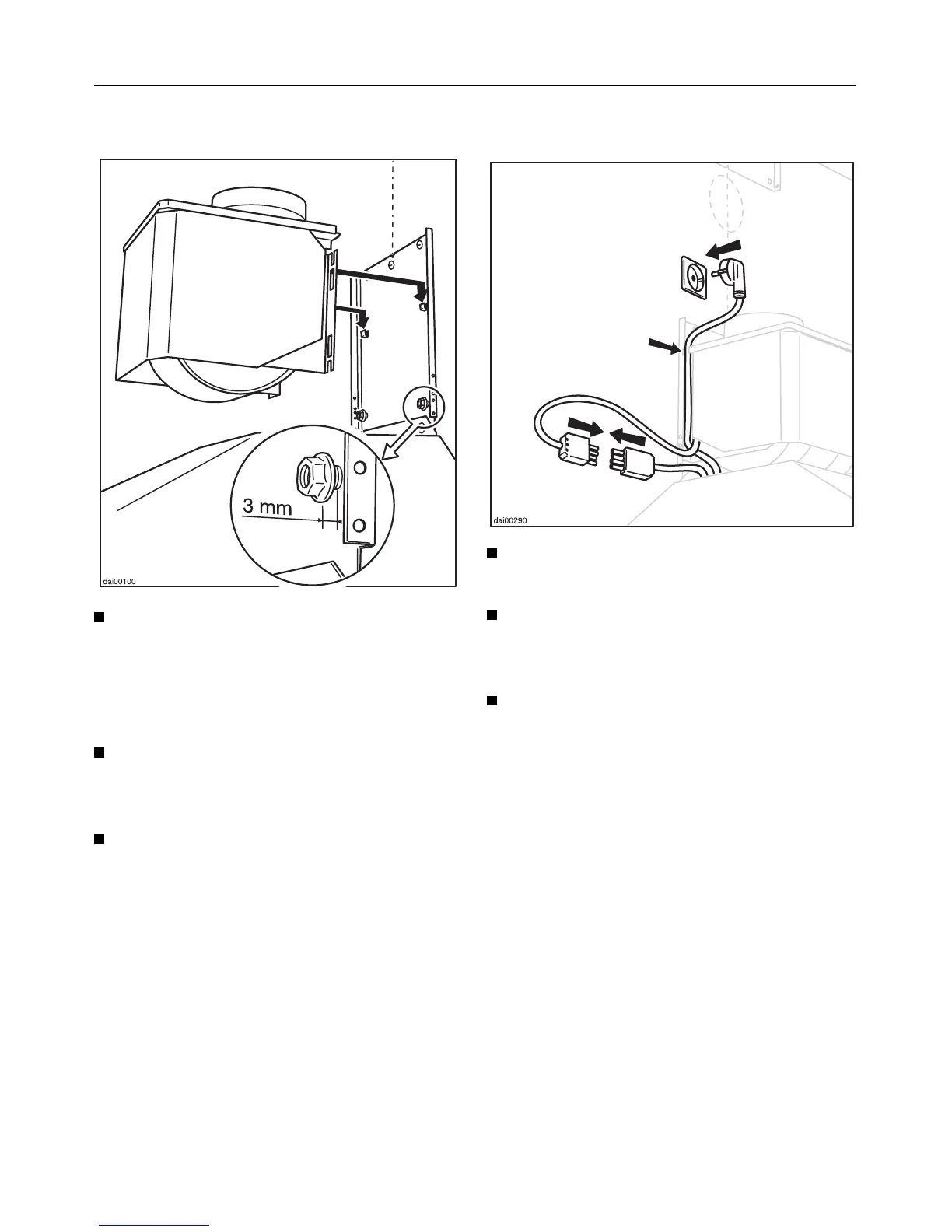

Motor unit
First loosely screw the two self tap-
ping nuts on the threaded bolts of re-
taining plate A. Leave enough space
to be able to hang the motor on after-
wards.
Mount the motor unit into the hooks
of retaining plate A and slide down
behind the nuts.
Tighten the nuts.
Electrical Connection
First push the two 4 pole plugs
together.
Pass the connection cable up to the
left of the motor and through the
cable guide.
Make the connection either to a
fused spur or fused socket as appro-
priate.
