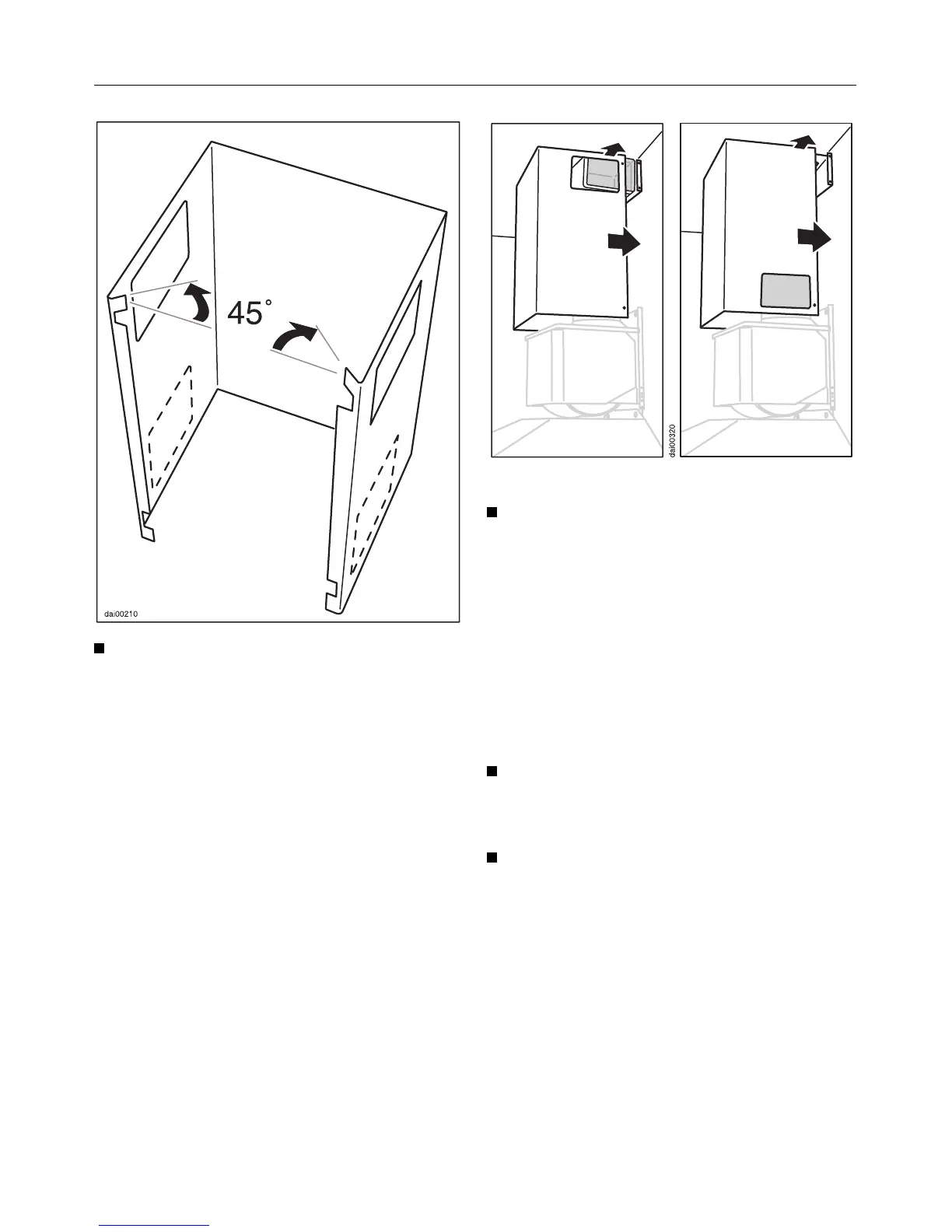

Bend the top hanging retainers ap-
prox. 45° inwards. This makes fitting
easier.
Recirculation Extraction
Pull the extension piece slightly out-
wards and push over the upper re-
taining plate.
For recirculation make sure that the
openings in the extension piece are po-
sitioned at the same height as the air
outlets in the directional unit of the fan
motor.
Screw the extension piece firmly to
the upper retaining plate at each
side with two screws 3.9 x 7.5 mm.
Cover the screw heads with the
cover caps supplied.
Installation
25
