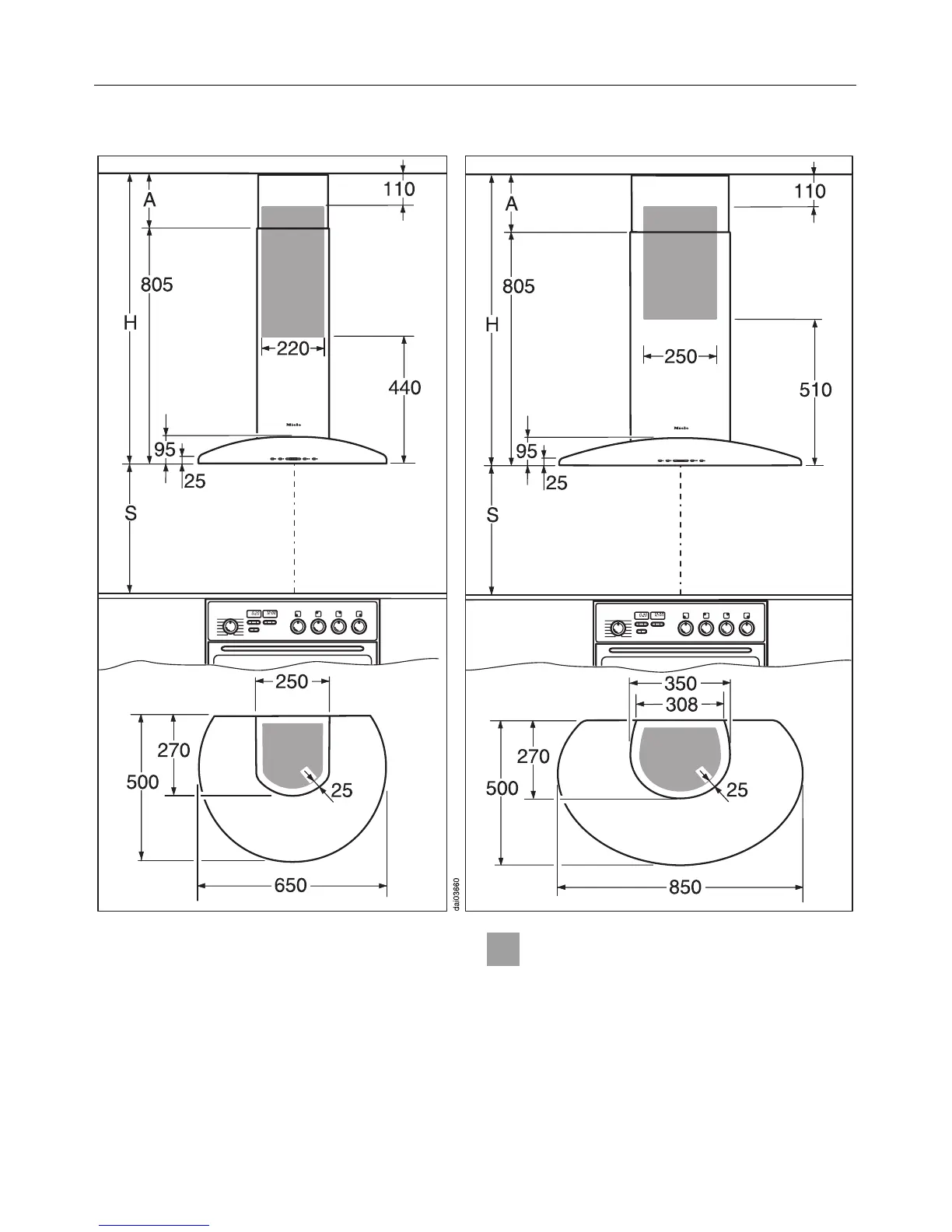

Appliance dimensions
DA 237 DA 239
S = The minimum safe distance
between the top of the hob and the
bottom of the cooker hood
H = 825 – 1070 mm
The dimension A between the top edge
of the chimney piece and the chimney
must be at least 20 mm.
: Wall or ceiling area for vent duct
hole and electric socket.
Vent connection ø 125 mm,
EXT-models: ø150 mm
Appliance dimensions
21
