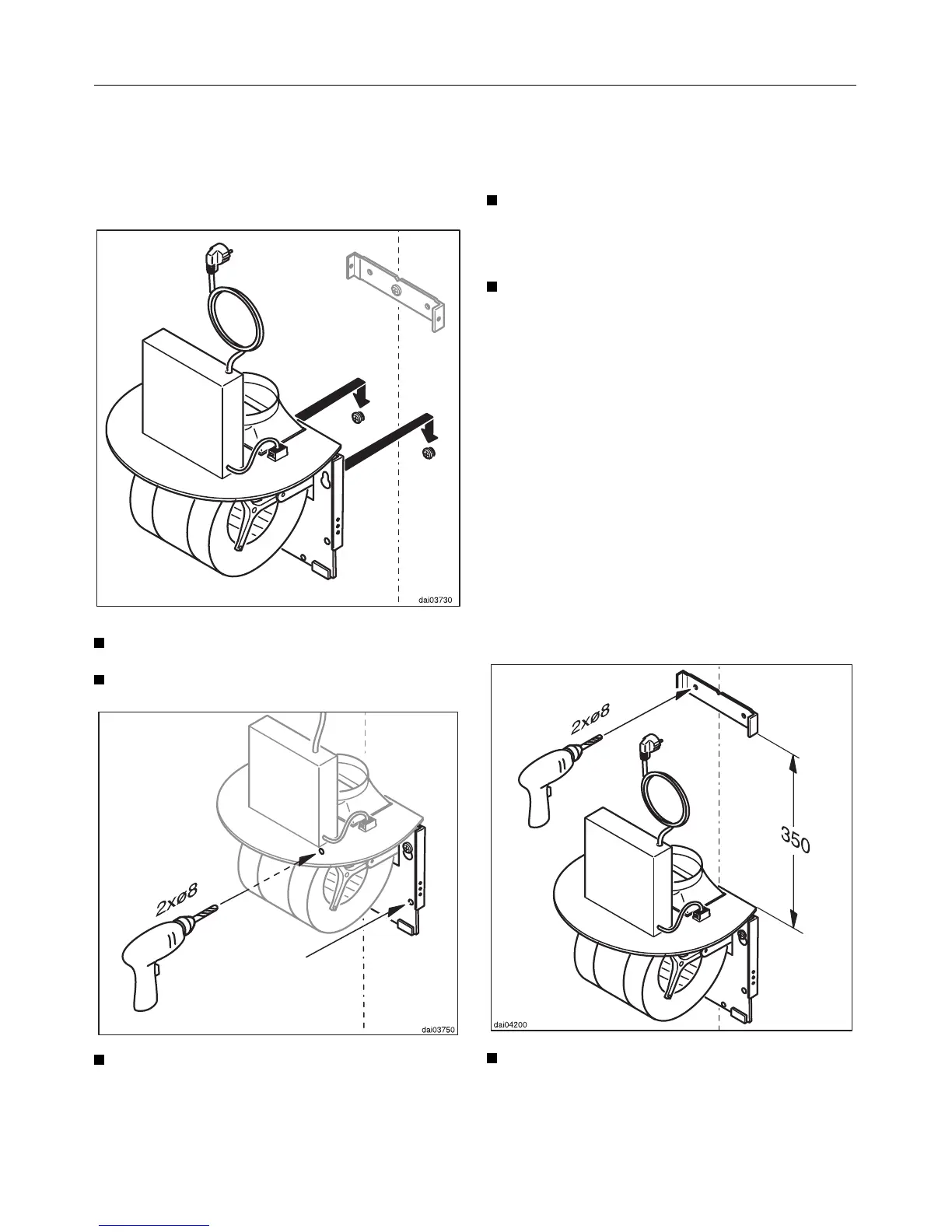

Motor unit
(only for appliances with an integrated
fan)
Fit the motor unit onto the screws.
Adjust the motor unit and secure.
With an 8 mm dia. bit, drill two holes
through the holes of the motor unit re-
taining plate in the wall and then
press the S 8 plugs into the holes.
Control unit
(only for EXT models)
With EXT models (external fan), the
control unit is fitted instead of the
motor unit.
Use the connection cable with 6 pole
plug to connect the cooker hood and
the external fan.
The non-return flap is integrated on
these models.
Only for DA 237:
If the height of the room requires utilisa-
tion of the maximum total height of the
cooker hood, the additional retaining
plate must also be fitted to ensure opti-
mum unit stability.
Fit the retaining plate to the wall
350 mm above the motor unit, using
two S 8 plugs and two 5 x 40 mm
screws.
Installation
24
