Installation
27
a
1 exhaust connection
for exhaust ducting 150 mm.
b
1 reducing collar
for exhaust ducting 125 mm. NB:
Miel
e recommends 150 mm ducting
wherever possible.
c
1 non-return flap
for fitting into the exhaust
conn
ection on the motor unit (not
needed for recirculation mode).
d
2 brackets
for securing the rangehood in the
wall unit.
e
1 spacer strip
for concealing the gap between the
r
ear of the appliance and the wall.
f
Conversion kit for recirculation
mode
(not supplied, but available as an
o
ptional accessory - see "Technical
data"). The kit contains an exhaust
grille and flexible aluminium hose
with hose clips.
g
DML 400 installation kit for fitting
a
drop-down front panel
(not supplied but available as an
o
ptional accessory). Contains
hinging and screws for fitting a front
panel to match kitchen furniture.

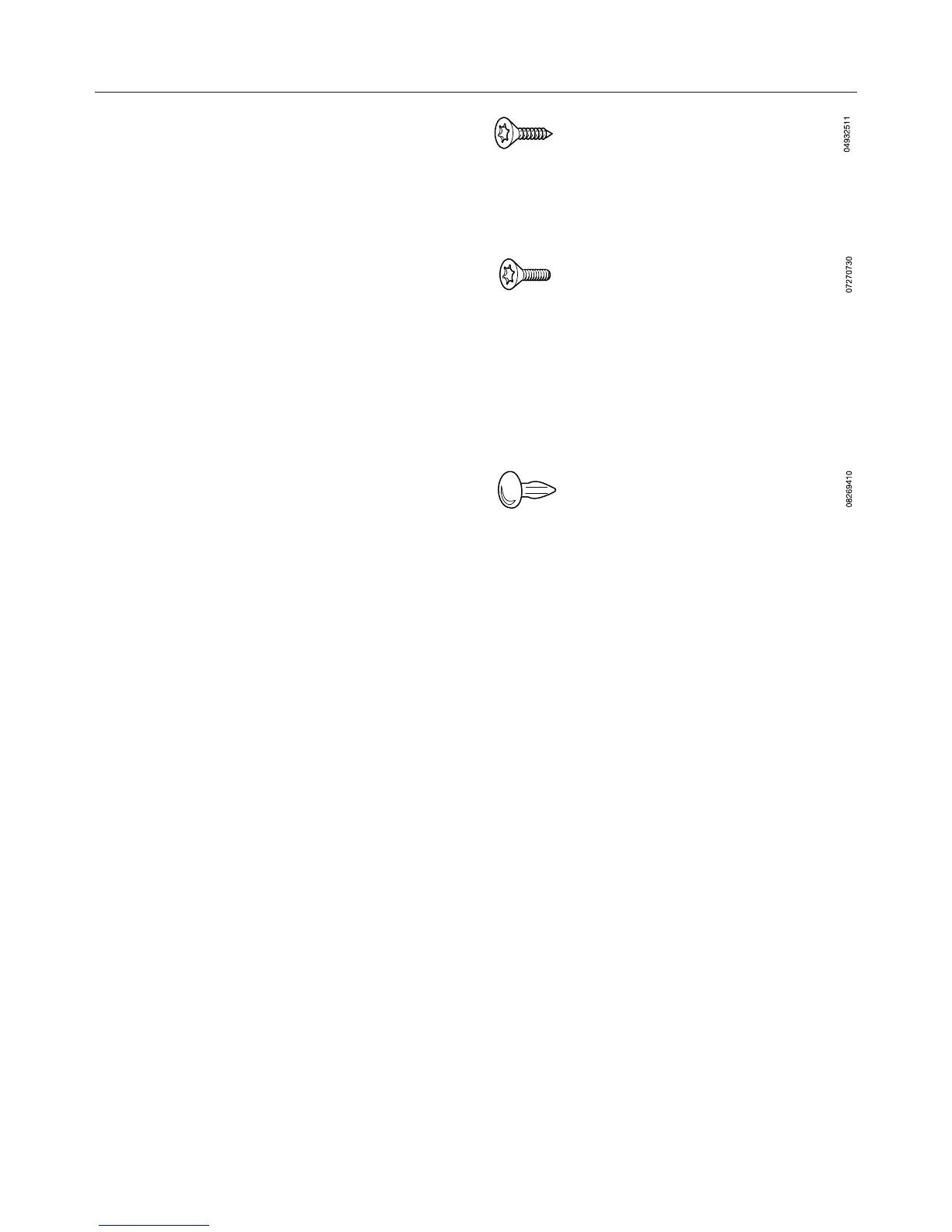

14 screws 4 x 15 mm
for securing the rangehood in the wall
unit.
8 screws M4 x 12 mm
for securing the rangehood to the
br
ackets.
4 of the screws can be used instead of
the plastic rivets to secure the spacer
strip.
4 plastic rivets
for securing the spacer strip.
