Installation
36

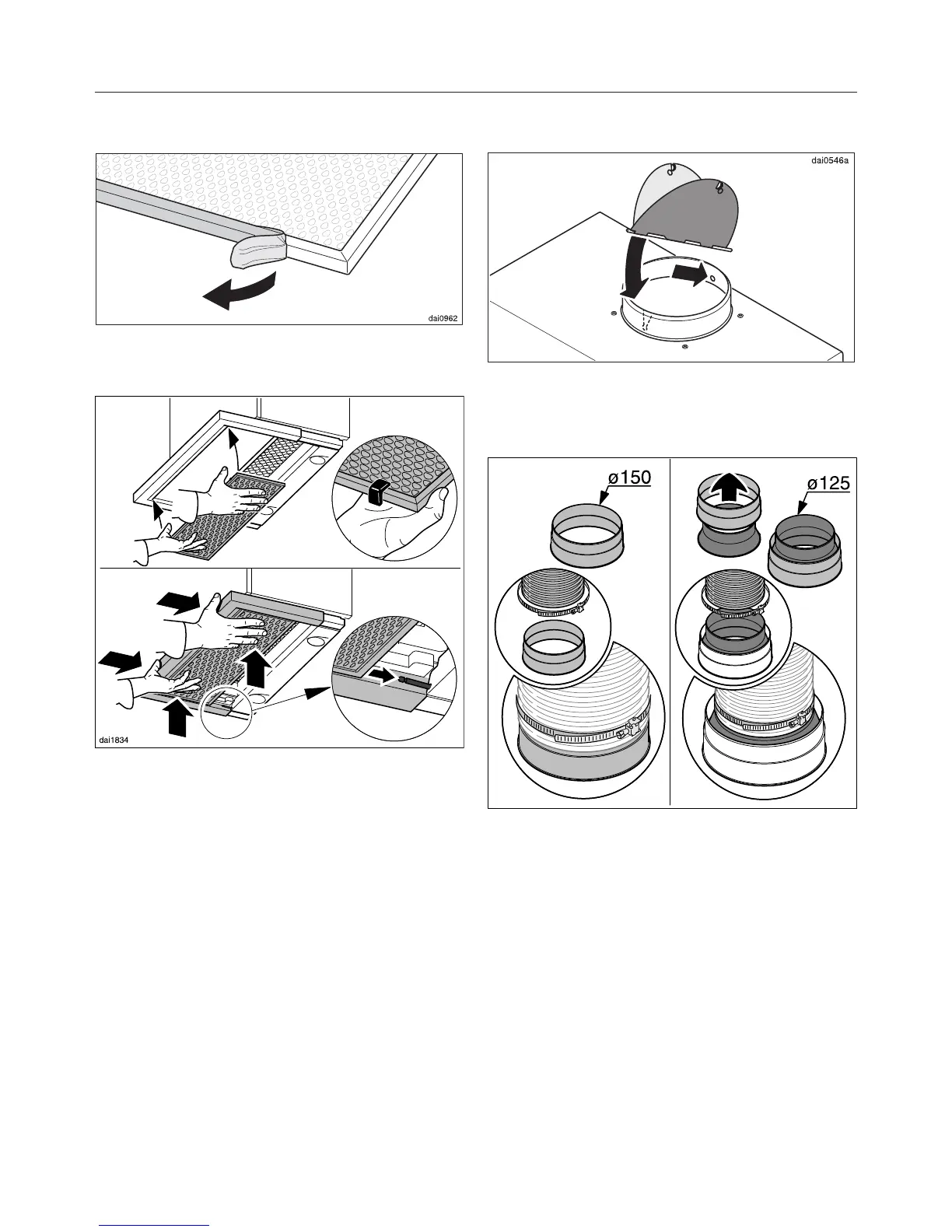

Fitting the grease filter
Remo
ve the protective foil around the
edge of the grease filter.
When fitting
the grease filter, make
sure that the red plastic guides are at
the front and facing upwards.
Place
the grease filter in the front of
the deflector plate, press it upwards
and push it in together with the
deflector plate. It will slide onto the
retaining pins at the back. Finally,
push the grease filter back a little
more.
Set up for extraction mode
If r
equired, install the non-return flap.
Check that the flap opens easily and
closes by itself.
A
ttach the exhaust ducting, e.g.
flexible hose, to the exhaust collar
using a hose clip (available as an
optional accessory). When using
125 mm ducting, fit the reducing
collar supplied into the exhaust
socket (see "Connection for air
extraction").
