Installation
31
a

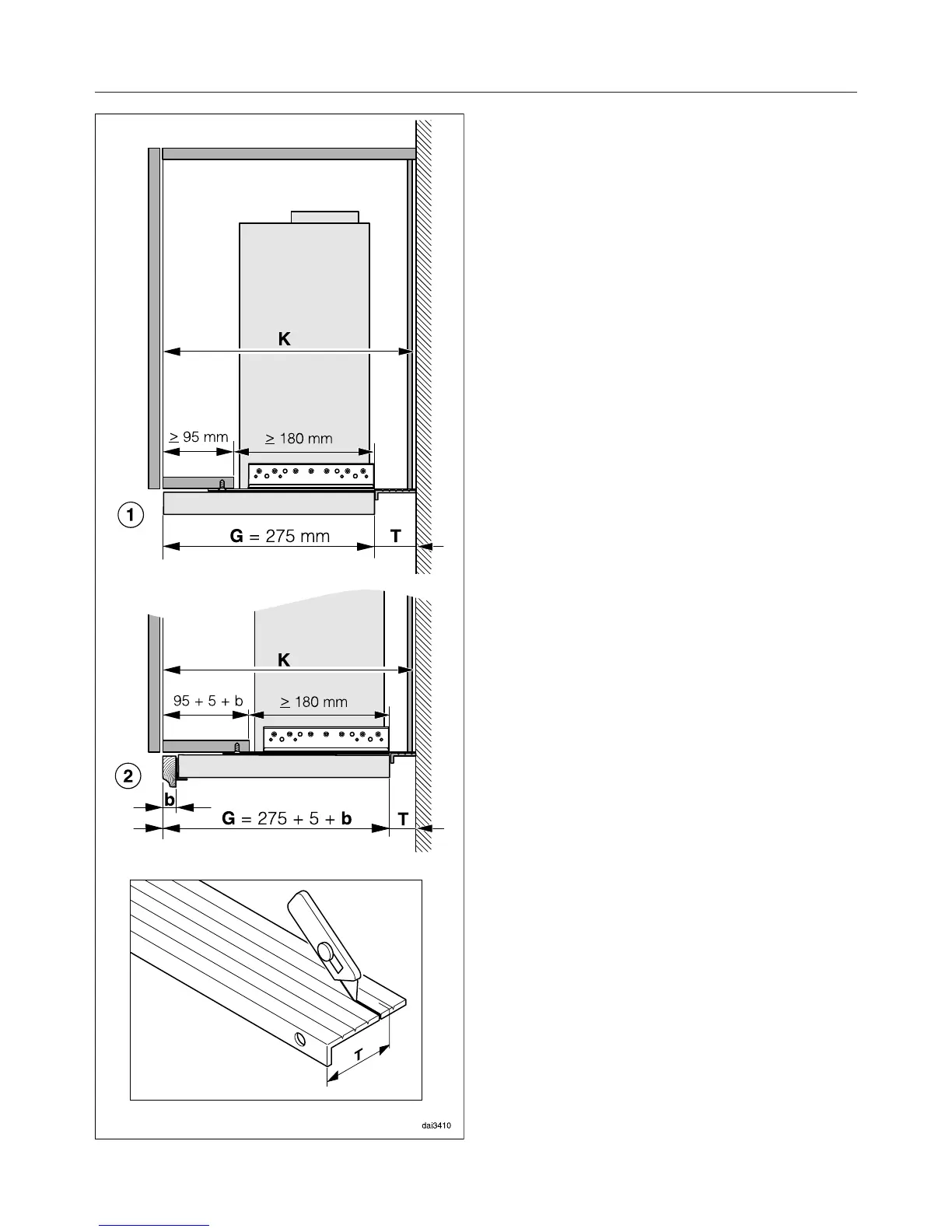

Example: Installation without a front
panel fitt
ed and with the front edge
of the deflector plate flush with the
front edge of the furniture housing
unit. This installation needs a shelf
of at least 95 mm deep.
b
Example: Installation with a front
panel t
o match the kitchen furniture.
This installation requires dimension
b for the front panel plus 5 mm for
the DML 400 fixing bracket to be
added to the shelf dimension.
The shelf must be correspondingly
deeper.
The remaining installation gap must be
at least 180 mm in depth. If it is smaller
than 180 mm, position the appliance
fur
ther back, and reduce measurement
T accordingly.
The position of the deflector plate can
be adjusted in depth by a maximum of
35 mm at the front.
To position the rangehood correctly, cut
the spacer strip to the required depth T
and then attach it to the back of the
appliance:
T= Depth of furniture unit K minus
depth of appliance G
Cut the spacer strip supplied t
o
measurement T. Score along the
groove for the smaller measurement
as shown, and remove the surplus.
