Installation
27
a
1 exhaust connection
for exhaust ducting 150 mm
b
1 reducing collar
for exhaust ducting 125 mm
c
1 non-return flap
for fitting into the exhaust
connection on the motor unit (not
needed for recirculation mode)
d
2 brackets
for securing the cooker hood into
the wall unit
e
1 spacer strip
for concealing the gap between the
rear of the appliance and the wall
f
Conversion kit for recirculation
mode
(not supplied, but available as an
o
ptional accessory - see "Technical
data"). The kit contains an exhaust
grille and flexible aluminium hose
with hose clips.
g
DML 400 installation kit for fitting
a
drop-down front panel
(not supplied but available as an
o
ptional accessory). Contains
hinging and screws for fitting a front
panel to match kitchen furniture.

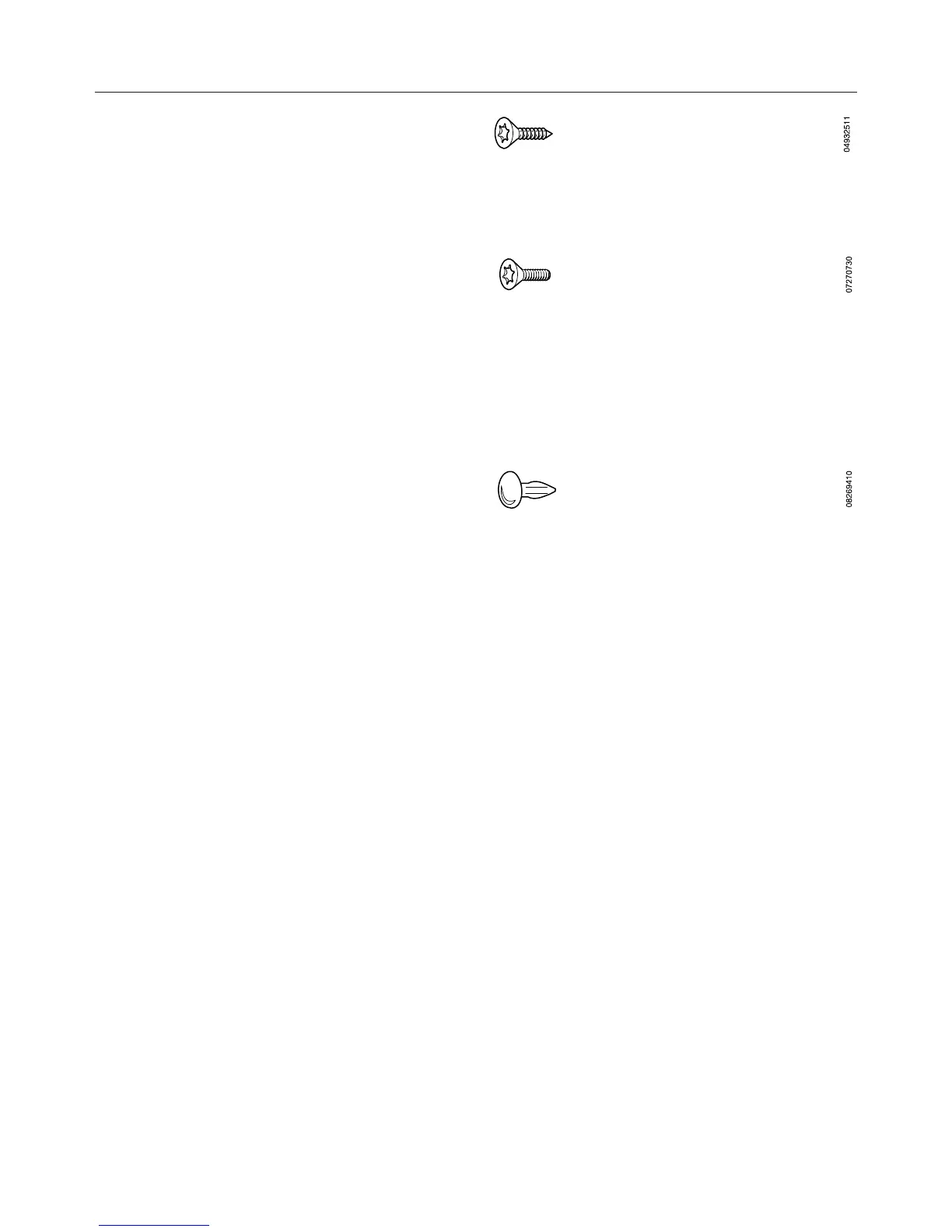

14 screws 4 x 15 mm
for securing the cooker hood into the
wall unit
8 screws M4 x 12 mm
for securing the cooker hood to the
br
ackets
4 of the screws can be used instead of
the plastic rivets to secure the spacer
strip.
4 plastic rivets
for securing the spacer strip
