Installation
36

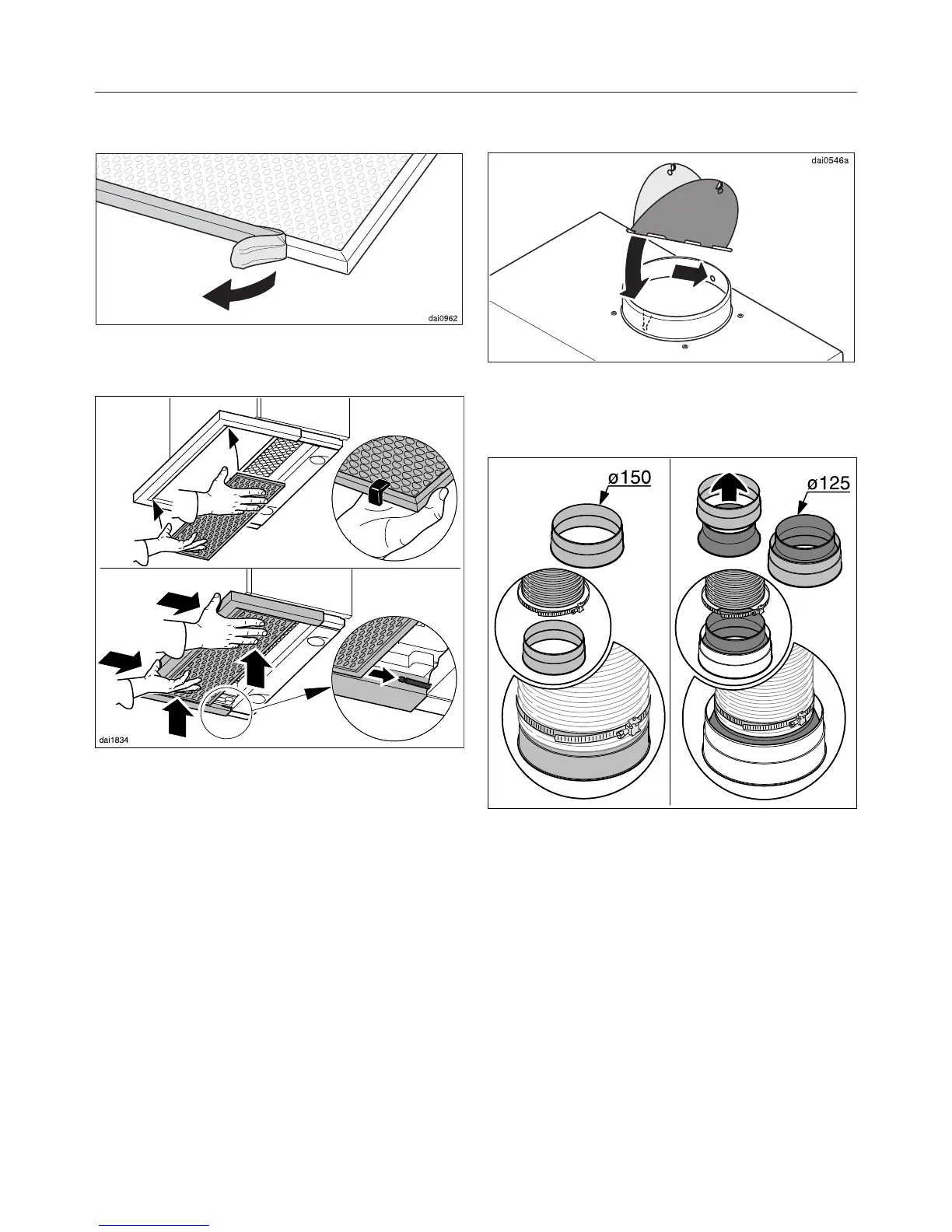

Fitting the grease filter
Remo
ve the protective foil around the
edge of the grease filter.
When fitting
the grease filter, make
sure that the red plastic guides are at
the front and facing upwards.
Replace
the grease filter in the front
of the deflector plate, press it
upwards and push it in together with
the deflector plate. It will slide onto
the retaining pins at the back. Finally,
push the grease filter back a little
more.
Exhaust socket
Inser
t the non-return flap, if required.
Make sure that it opens easily and
closes again by itself.
A
ttach the exhaust ducting, e.g.
flexible hose, to the exhaust socket
using a hose clip (available as an
optional accessory). When using
125 mm ducting, fit the reducing
collar supplied into the exhaust
socket (see "Connection for air
extraction").
