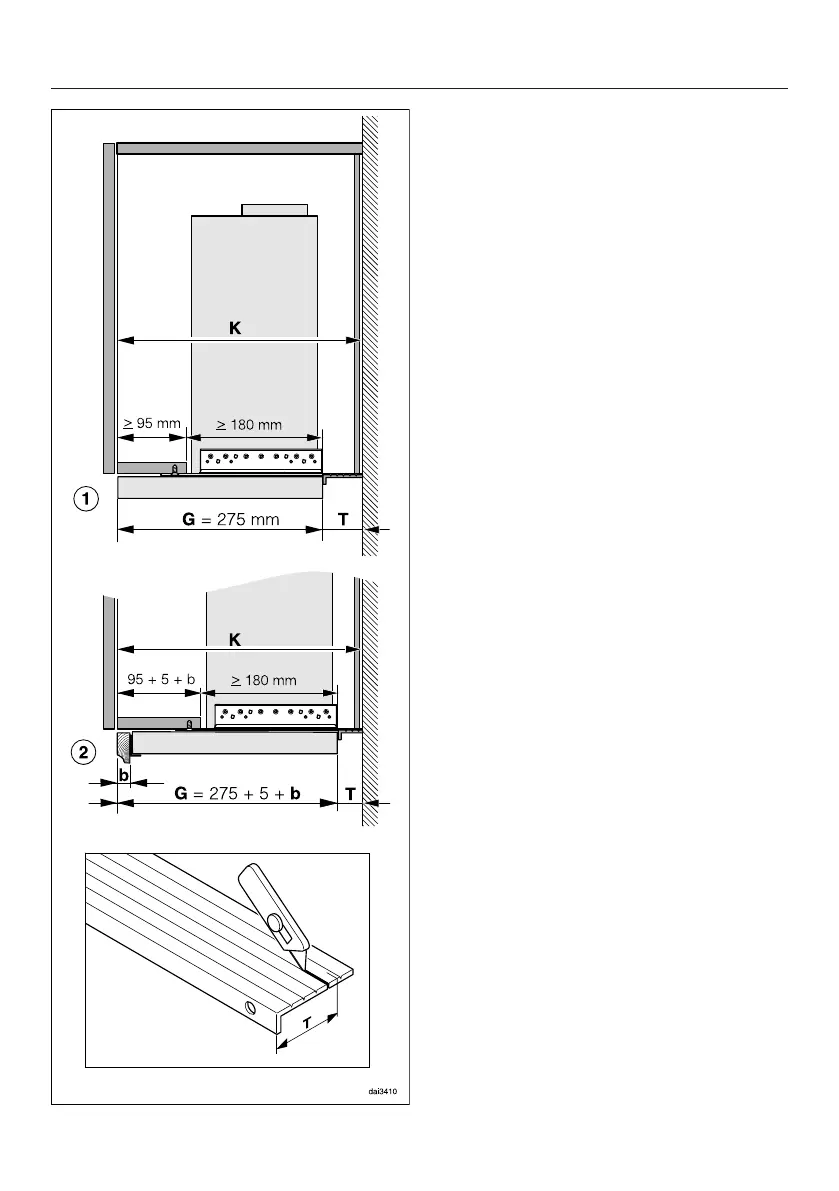

a
Example: Installation without a front
panel fitted and with the front edge
of the deflector plate flush with the
front edge of the furniture housing
unit. This installation needs a shelf of
at least 95mm deep.
b
Example: Installation with a front
panel to match the kitchen furniture.
This installation requires dimension
b for the front panel plus 5mm for
the DML 400 fixing bracket to be
added to the shelf dimension.
The shelf must be correspondingly
deeper.
The remaining installation gap must be
at least 180mm in depth. If it is less
than 180mm, position the appliance
further back, and reduce measurement
T accordingly.
The position of the deflector plate can
be adjusted in depth by a maximum of
35mm at the front.
To position the cooker hood correctly,
cut the spacer strip to the required
depth T and then attach it to the back
of the appliance:
T= Depth of carcase K minus depth of
appliance G
 Cut the spacer strip supplied to
measurement T. Score along the
groove for the smaller measurement
as shown, and remove the surplus.
