Miele DA 3496 - Attaching the Front Panel; Aligning the Deflector Plate; Fitting the Grease Filter

Installation
*
I
N
S
T
A
L
L
A
T
I
O
N
*
36

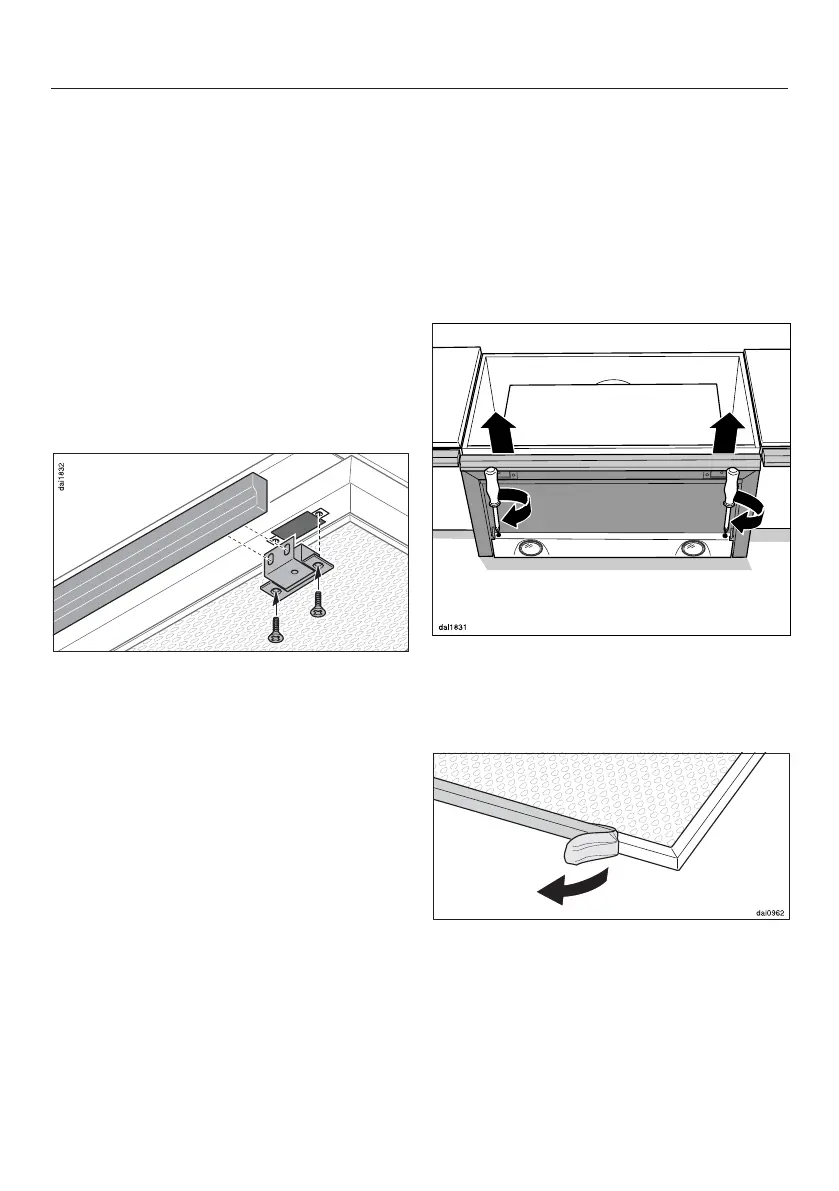

Attaching the front panel
The front of the deflector plate can be
fitted with a front panel to match
existing kitchen furniture units.
The front panel must not exceed
1300g. This applies to front panels with
a depth of up to 30mm. For larger and
heavier front panels, the weight must be
reduced by e.g. machining it away at
the back.
A DML 400 installation kit, available as
an optional accessory, is required for
this.
 Follow the installation instructions
supplied.
Aligning the deflector plate
The position of the deflector plate can
be brought forward by up to 35mm
using the adjusting screws on either
side of the deflector plate. This allows
the deflector plate to be aligned to the
front of the kitchen furniture units on
either side.
 Use a screwdriver to align the
deflector plate correctly.
Fitting the grease filter
 Remove the protective foil around the
edge of the grease filter.
