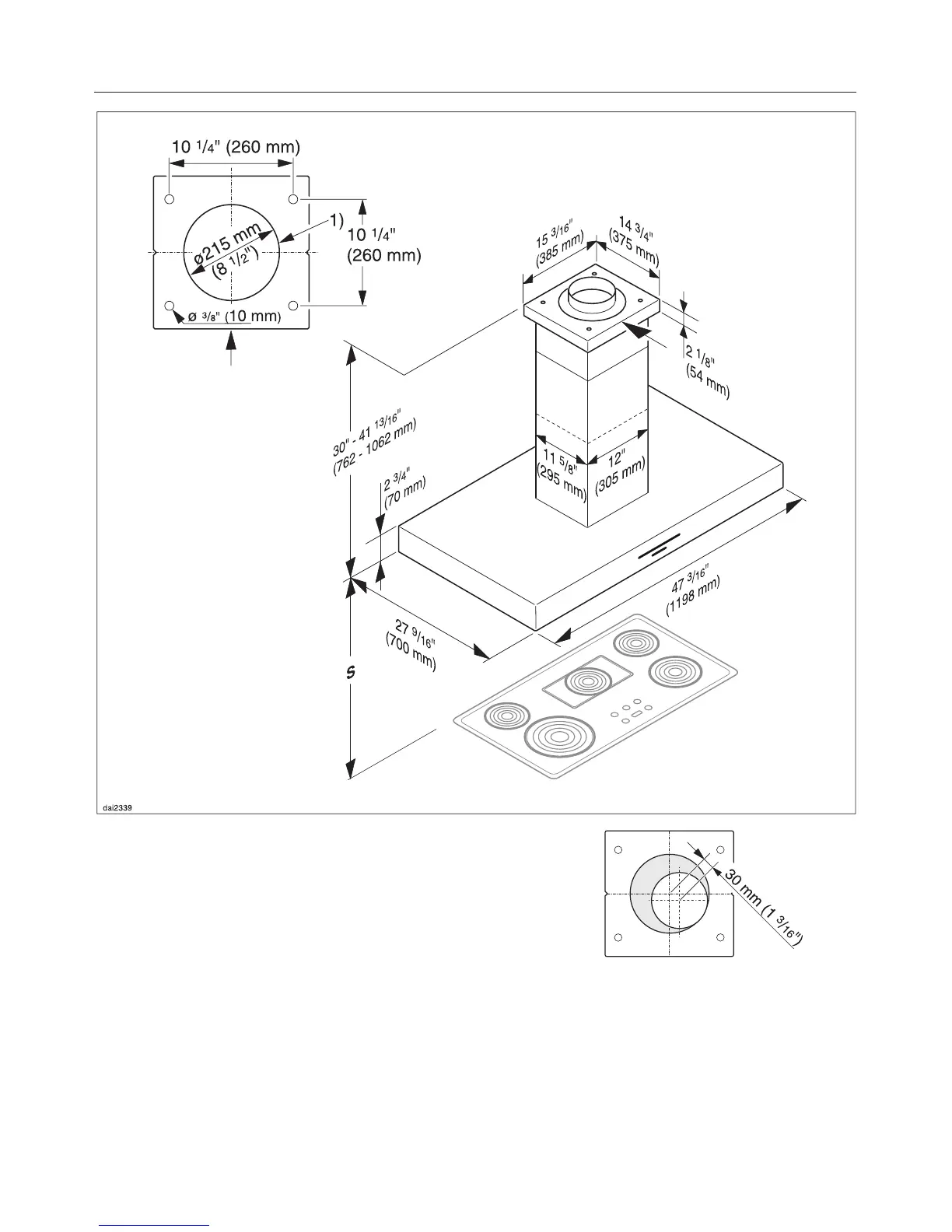

Exhaust connection 6" (150 mm)
diameter
1) Opening for ductwork and power
cord
The exhaust connection in the ceiling
plate is not secured in the center. This
makes installation possible if the
connection in the ceiling is not centered
above the cooktop. A max. variance of
1
3
/
16
" (30 mm) in any direction is
possible.
Appliance dimensions
24
